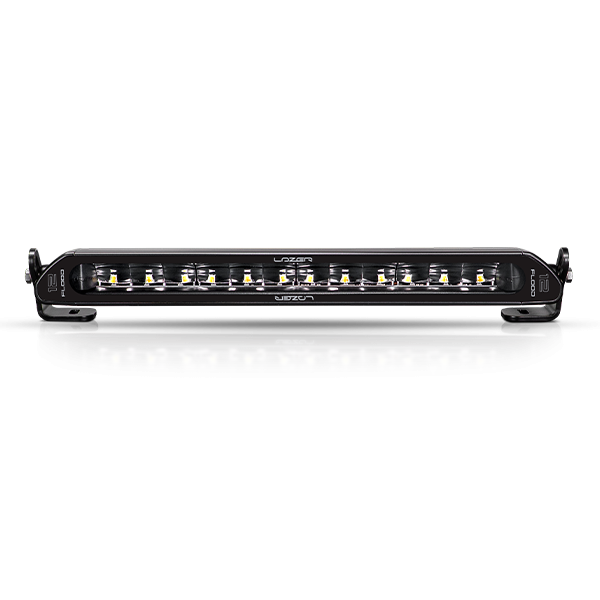

Linear-12 Flood

Product Code
#0L12-FL2-LNR

From £204.00

To £279.60

1. Lighting Options *
Linear-12 Flood

In stock

Find a Stockist

£204.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

The Linear-12 Flood occupies the sweet spot within the Linear Flood range, combining exceptional light output, compact dimensions and outstanding versatility. Incorporating Lazer Lamps' latest WideField Optics together with advanced electronic design, it delivers 10,200 raw lumens of controlled illumination, setting a new standard for professional low-profile work lighting.

The distribution of light, with 60 degree vertical and 150 degree horizontal spread produces a large, homogeneous hotspot with remarkably even light distribution across the full width of the illuminated area. Whether operating agricultural machinery, utility vehicles, commercial fleets or specialist equipment, operators benefit from excellent close-range visibility alongside confident illumination further into the working environment. That light distribution combined with carefully selected 5000 kelvin colour temperature, premium bin LEDs, also helps to reduce eye fatigue and strain particularly during periods of prolonged use.

The addition of Precision Cut-Off Technology further distinguishes the lamp from conventional work lights. A sharp vertical cut-off prevents unnecessary upward light spill, eliminating glare while ensuring every lumen contributes to usable illumination. The result is a more comfortable and professional lighting solution, particularly valuable when working around colleagues, roadside traffic or other vehicles.

Producing 12,200 candela, the Linear-12 Flood delivers effective illumination beyond 110 metres (1 lux) while maintaining exceptional peripheral visibility, making it equally capable as a rear work lamp, side-mounted area light or roof-mounted flood light.

Designed, engineered and manufactured in the UK, every component has been selected to provide exceptional durability and long-term reliability under the harshest operating conditions. The Linear-12 Flood represents outstanding value without compromising the premium performance and quality synonymous with Lazer Lamps.

WideField optics with broad beam pattern and perfect homogeneity.

Precision cut-off to the vertical light distribution for no-glare illumination.

Utilises high-density, premium bin LED technology.

5000k colour temperature reduces eye strain and fatigue.

Slim, low profile lamp housing for unobtrusive lamp mounting.

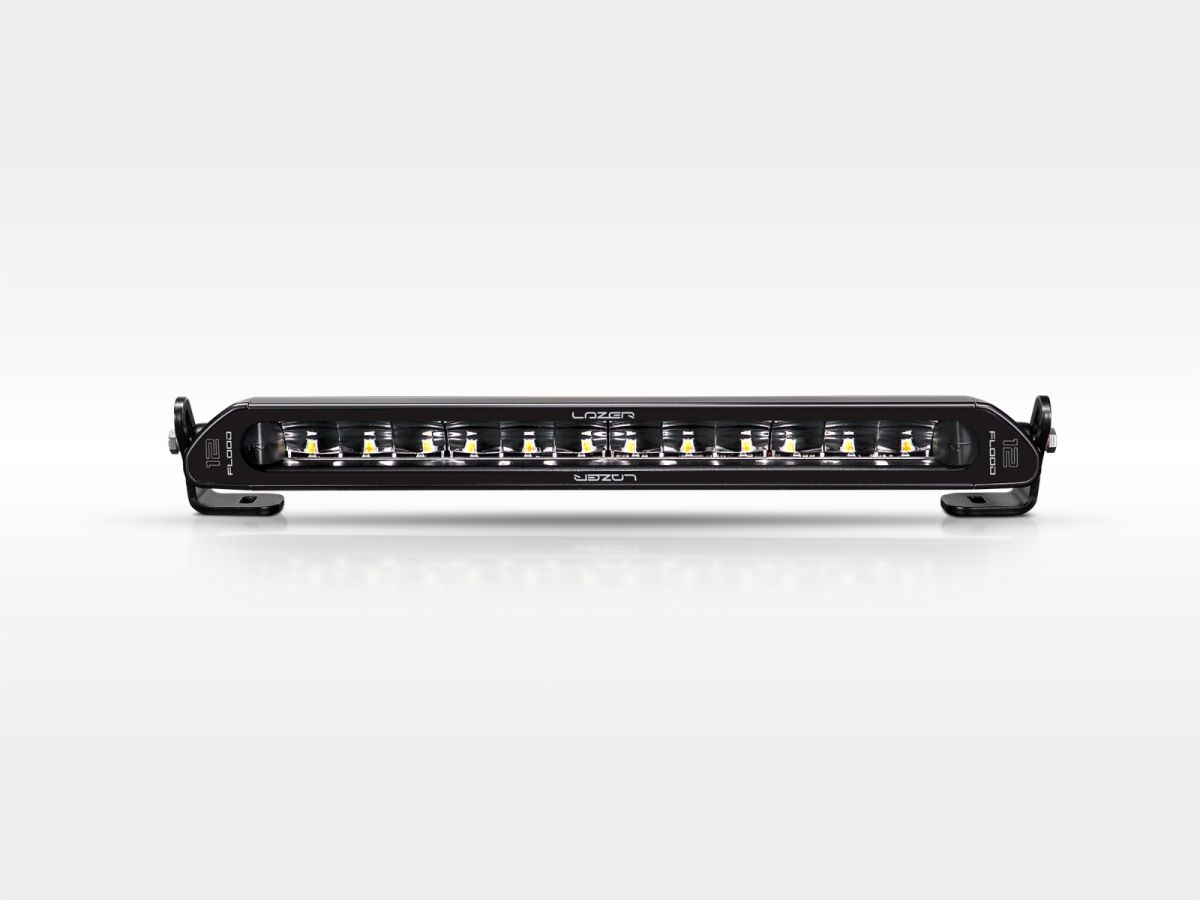

Supplied with 4mm satin black, stainless steel, side mounting brackets.

Dynamic drive modulation regulates light output considering thermal conditions.

‘Unbreakable’ polycarbonate lens with lifetime guarantee.

Automotive grade corrosion resistance.

UNECE Reg10 approved.

IP68 and IP69K rated against water and dust ingress.

2 year warranty (5 year for Automotive/Commercial Fleet applications).

Supplied with male/female 2-pin (original) Deutsch connectors.

Designed & manufactured in the UK.

  LINEAR-12 FLOOD
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight0.8 kg
HIGH BEAM FUNCTION
Total Luminous Flux10,200 Lm
Total Driver 'FOV' Flux †6,732 Lm
Colour Temperature5000K
Power Consumption76 Watts
Current Draw (14.4V)5.3 Amps
Peak Current Draw8.4 Amps
Connector2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating #IP68 / IP69K
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
OPERATING CONDITIONS
Operating Temperature-40oC … +90oC
Vibration (BS EN 60068)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.



* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

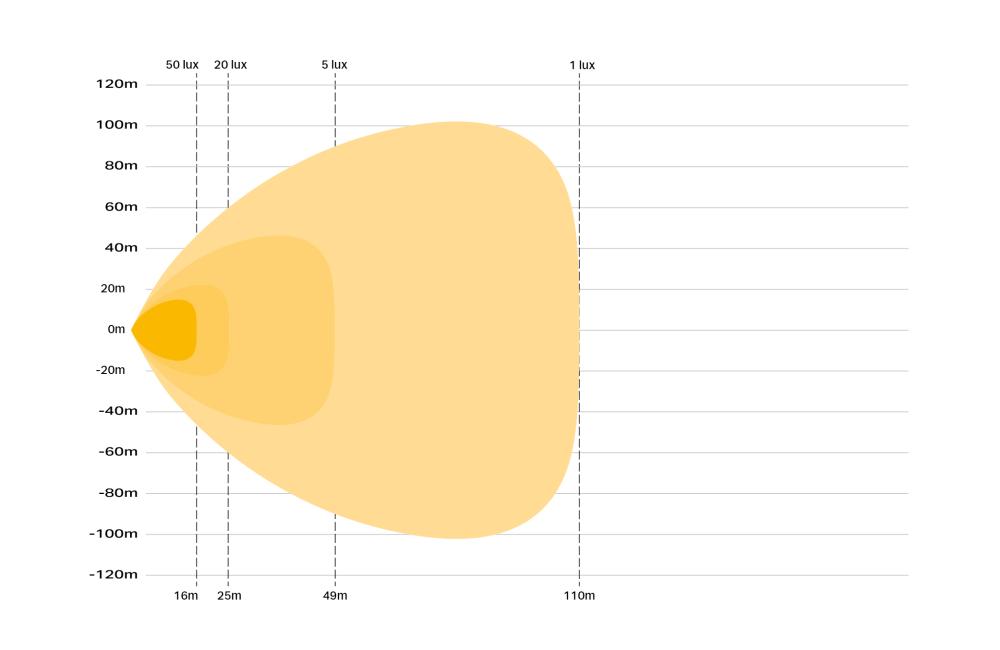

PHOTOMETRICS
1 lx Line110 metres
5 lx Line49 metres
20 lx Line25 metres
50 lx Line *16 metres
Linear-12 Flood photometric diagram
BEAM DISTRIBUTION
Horizontal150 degrees
Vertical60 degrees
Linear Flood beam distribution

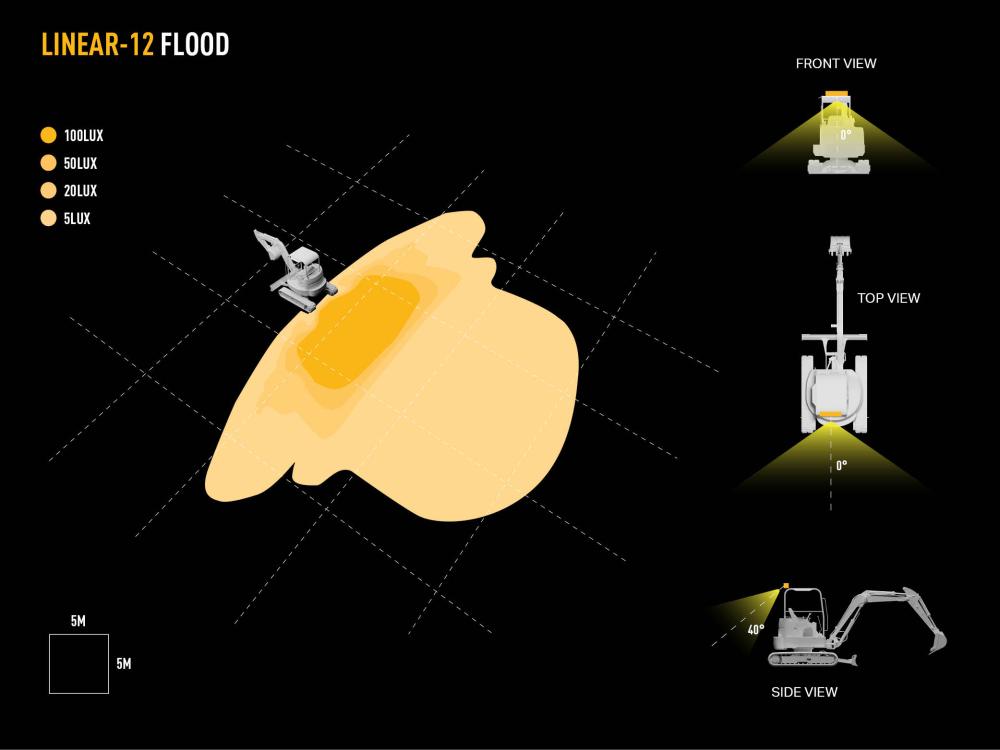

Linear-12 Flood Dialux Image

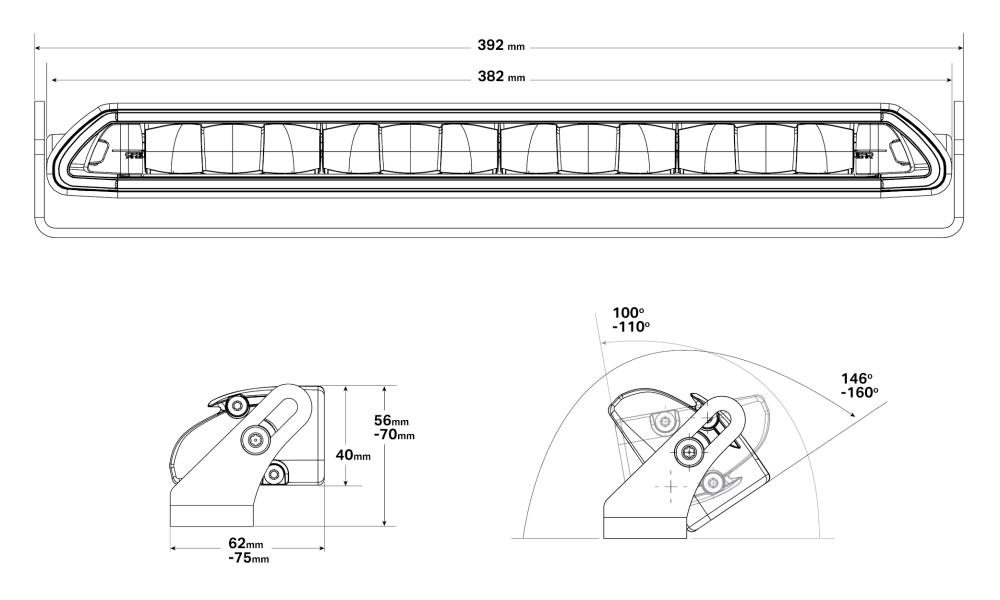

DIMENSIONS
Width392mm
Depth62mm
Height40mm
Linear-12 Flood dimensions diagram
Linear Flood Wiring Diagram
  • Linear-12 Flood LED work lightbar
  • Side Bracket Kit (1157K)
