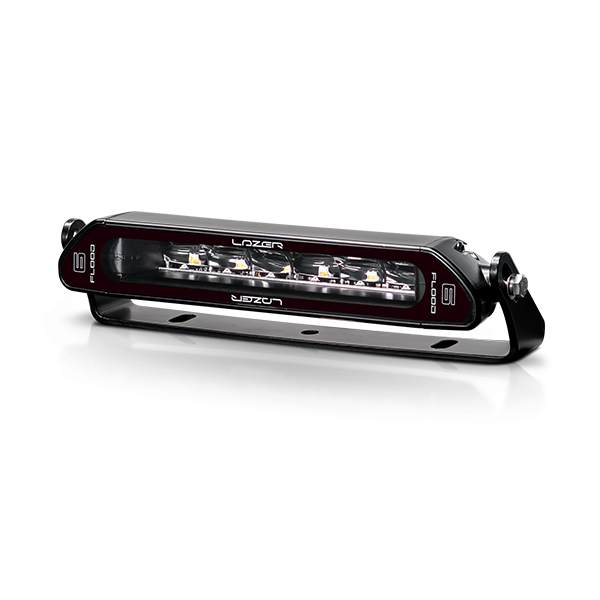

Linear-6 Flood

Product Code
#0L06-FL2-LNR

From £156.00

To £231.60

1. Lighting Options *
Linear-6 Flood

In stock

Find a Stockist

£156.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

The Linear-6 Flood delivers the performance expected from a premium work light in a compact, low-profile package that integrates easily onto almost any vehicle or machine. Designed and manufactured in the UK, the lamp introduces Lazer Lamps' next-generation WideField Optics, producing exceptional usable illumination with outstanding beam control and remarkable efficiency.

Generating 5,100 raw lumens, the carefully engineered beam projects a broad, homogeneous spread of light with an exceptionally wide hotspot. The combination of premium bin, high-density LEDs and advanced optics deliver smooth, even illumination across the entire working area, with a 60 degree vertical and incredible 150 degree horizontal spread, improving visibility while reducing eye fatigue during prolonged operation thanks to the carefully selected 5000 kelvin colour temperature LEDs.

Central to the lamp's performance is Precision Cut-Off Technology. The carefully controlled beam features a distinct vertical cut-off that prevents unnecessary upward light spill, ensuring illumination is directed precisely where it delivers the greatest benefit. This low-glare beam pattern makes the Linear-6 Flood particularly effective for roadside service vehicles, commercial fleets, municipal equipment, agriculture and construction applications where maintaining visibility without dazzling surrounding road users or colleagues is essential.

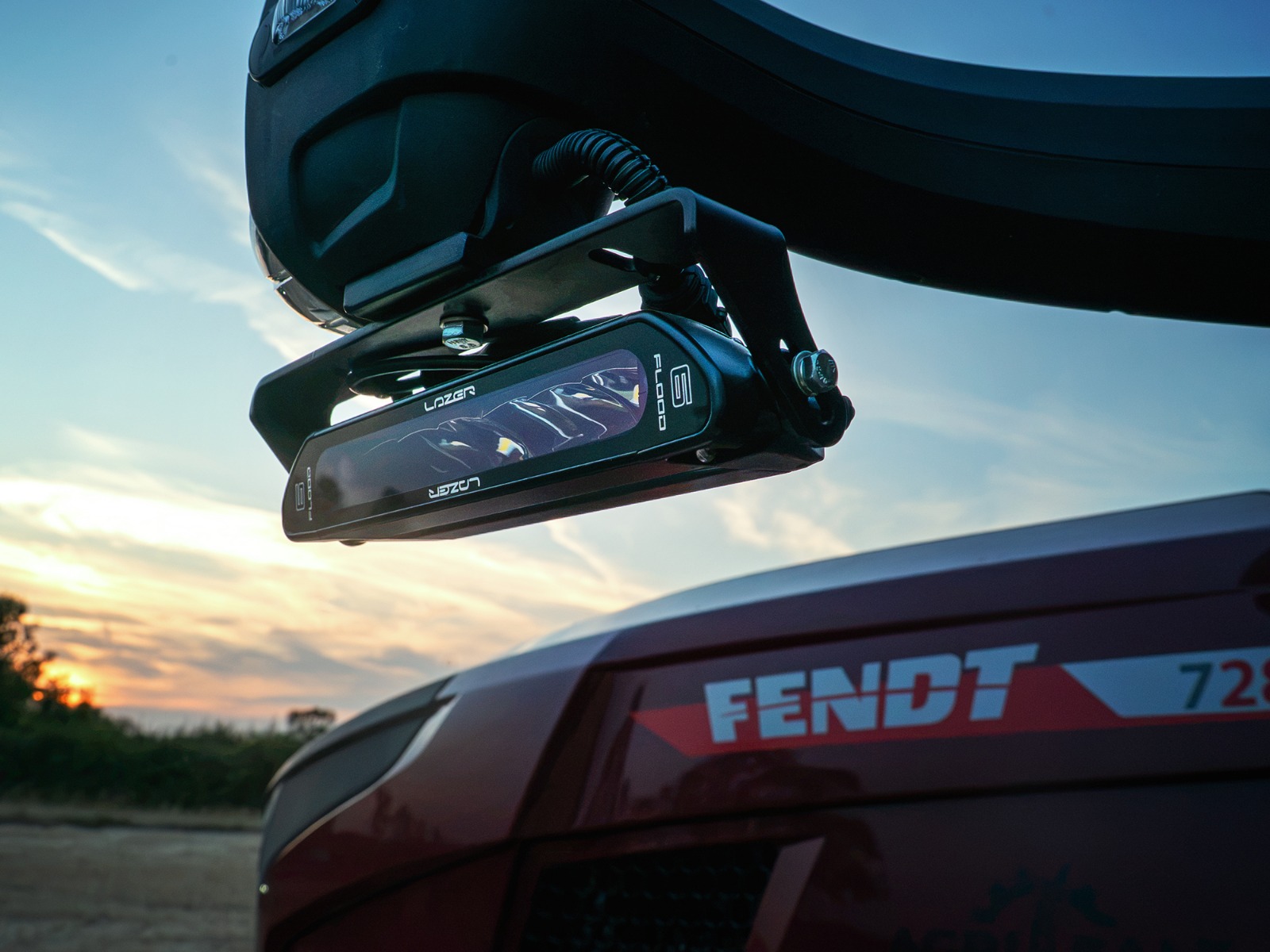

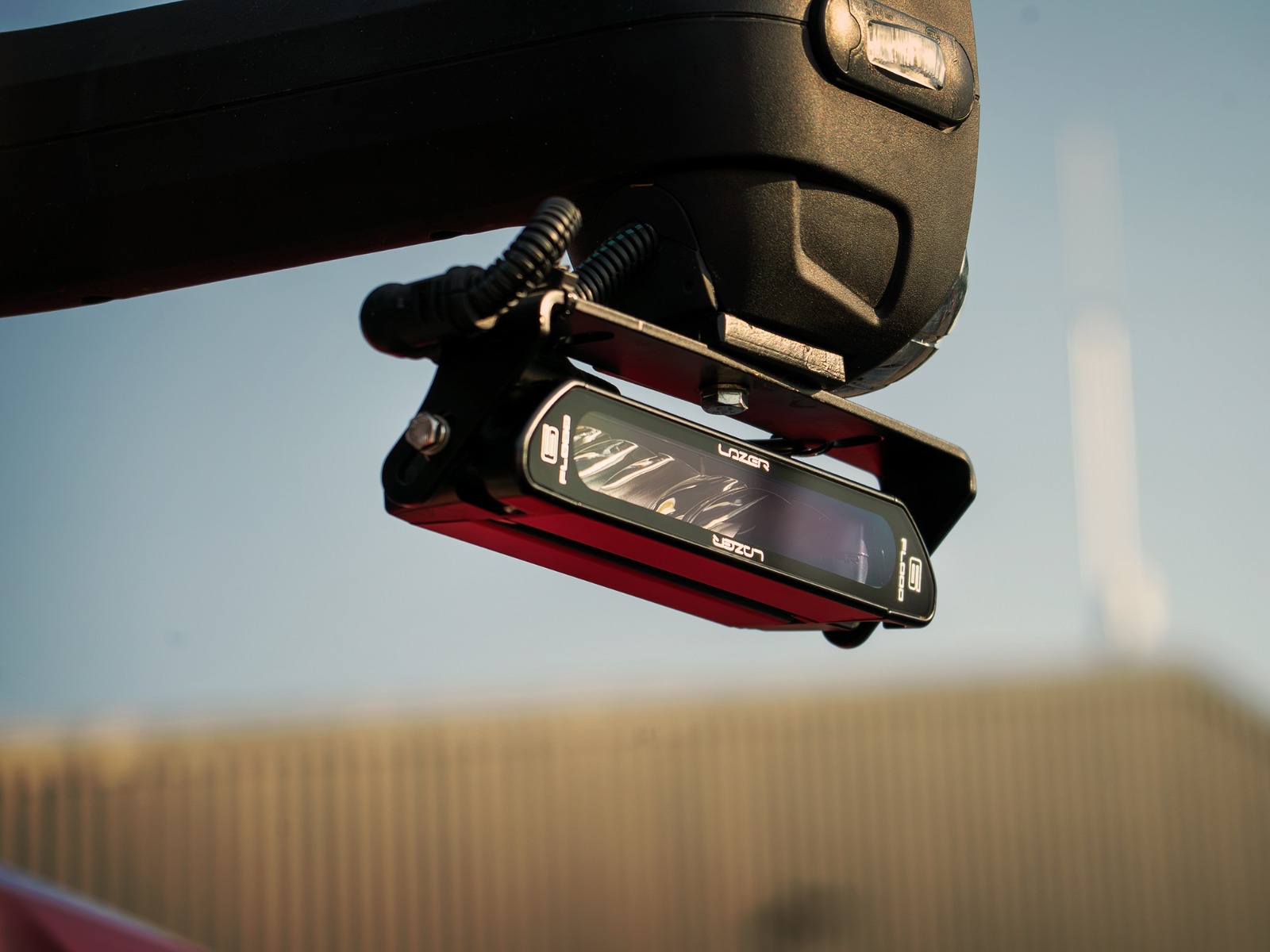

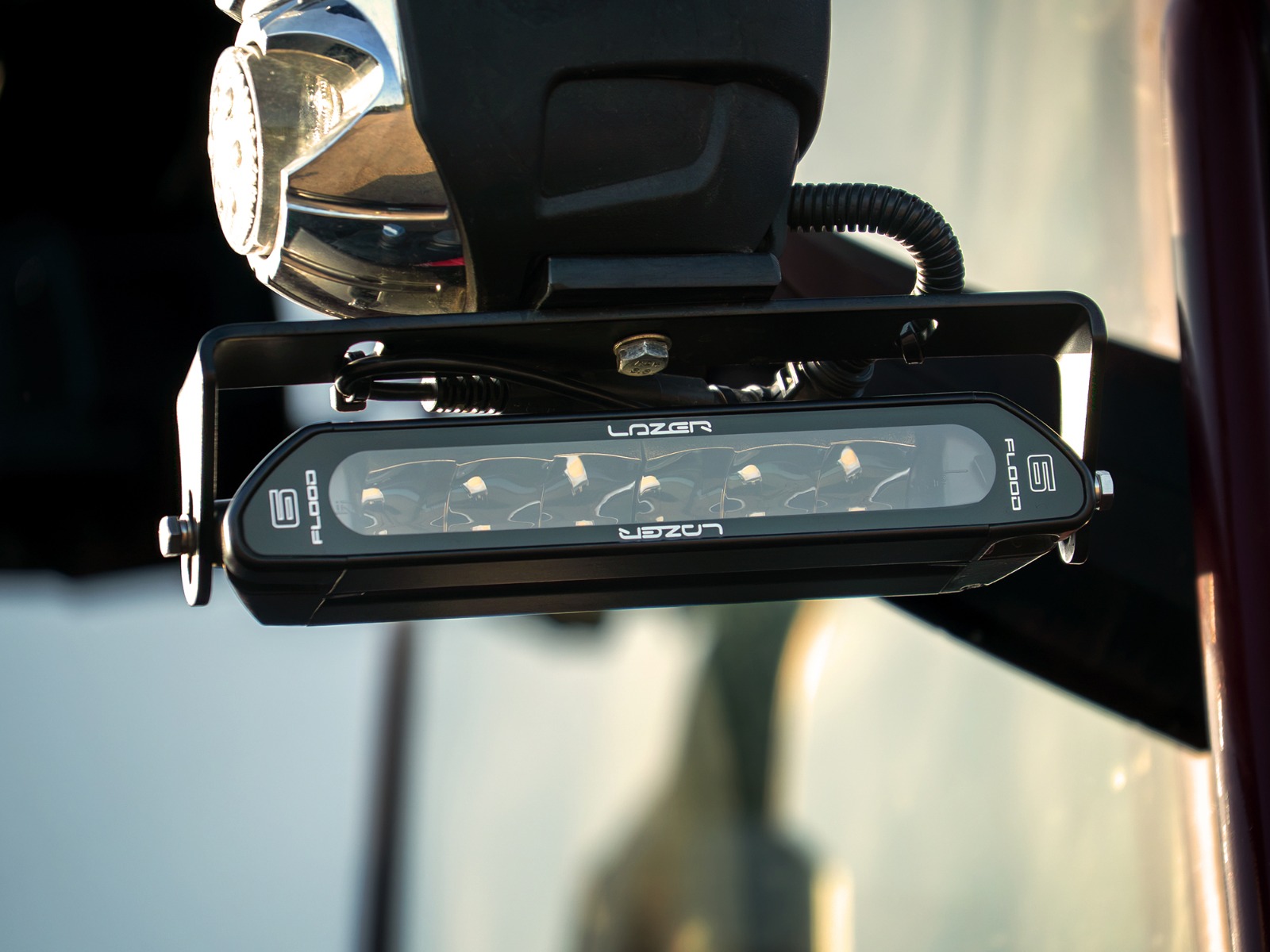

Delivering impressive illumination beyond 75 metres (1 lux), while maintaining exceptional close-range coverage, the lamp offers outstanding versatility for pickups, vans, trailers, utility vehicles and specialist equipment. Its slim profile also makes installation straightforward where mounting space is restricted, facilitated by the supplied satin black, stainless steel U-shaped bracket.

Built using premium components throughout and engineered to withstand years of operation in the harshest environments, the Linear-6 Flood combines exceptional durability with the refined optical performance expected from Lazer Lamps.

By pairing premium engineering with significantly enhanced value, the Linear-6 Flood offers professionals an uncompromising lighting solution that performs well beyond its compact dimensions.

WideField optics with broad beam pattern and perfect homogeneity.

Precision cut-off to the vertical light distribution for no-glare illumination.

Utilises high-density, premium bin LED technology.

5000k colour temperature reduces eye strain and fatigue.

Slim, low profile lamp housing for unobtrusive lamp mounting.

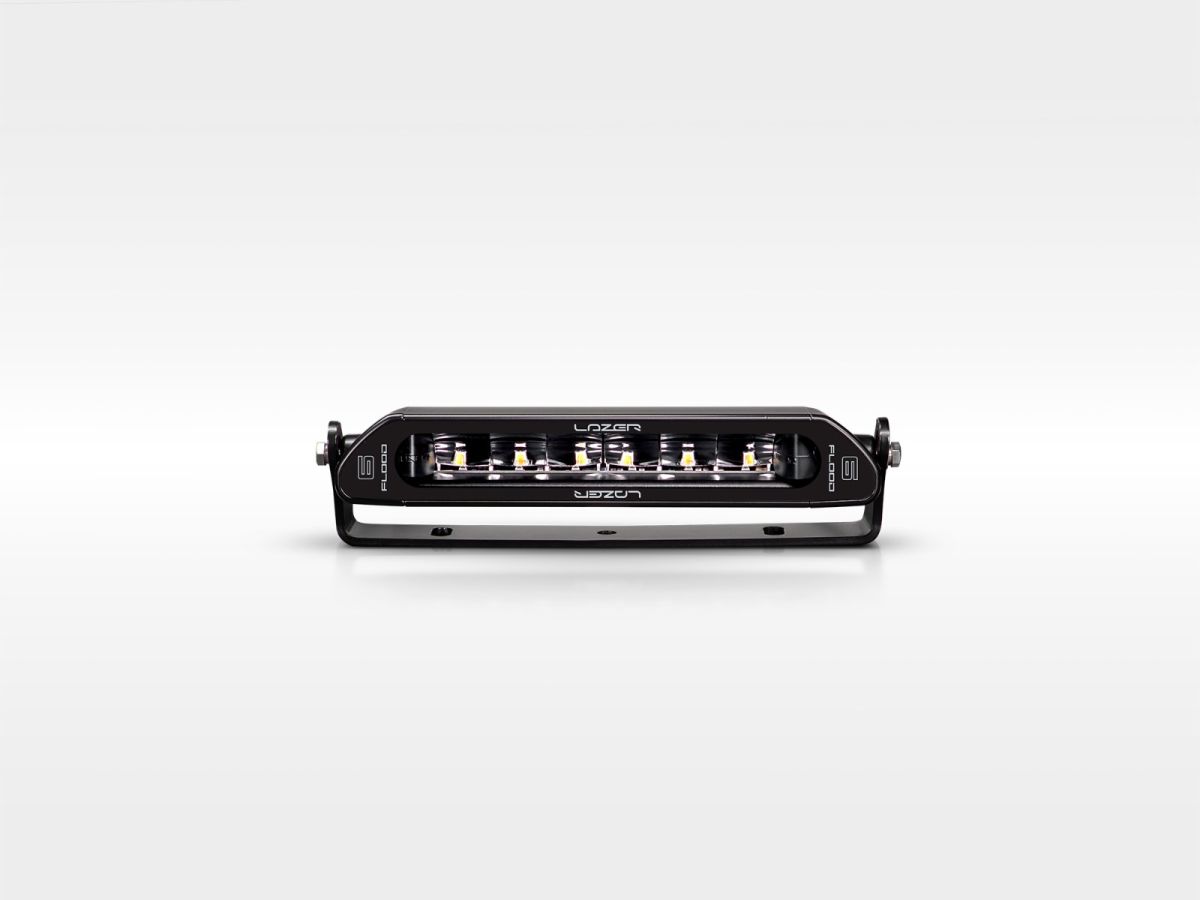

Supplied with 4mm satin black, stainless steel, U-shaped mounting bracket.

Dynamic drive modulation regulates light output considering thermal conditions.

‘Unbreakable’ polycarbonate lens with lifetime guarantee.

UNECE Reg 10 approved.

Automotive grade corrosion resistance.

IP68 and IP69K rated against water and dust ingress.

2 year warranty (5 year for Automotive/Commercial Fleet applications).

Supplied with male/female 2-pin (original) Deutsch connectors.

Designed & manufactured in the UK.

  LINEAR-6 FLOOD
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight0.495 kg
HIGH BEAM FUNCTION
Total Luminous Flux5,100 Lm
Total Driver 'FOV' Flux †3,366 Lm
Colour Temperature5000K
Power Consumption38 Watts
Current Draw (14.4V)2.6 Amps
Peak Current Draw5.3 Amps
Connector2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating #IP68 / IP69K
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
OPERATING CONDITIONS
Operating Temperature-40oC … +90oC
Vibration (BS EN 60068)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.



* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.


PHOTOMETRICS
1 lx Line78 metres
5 lx Line35 metres
20 lx Line17 metres
50 lx Line *11 metres

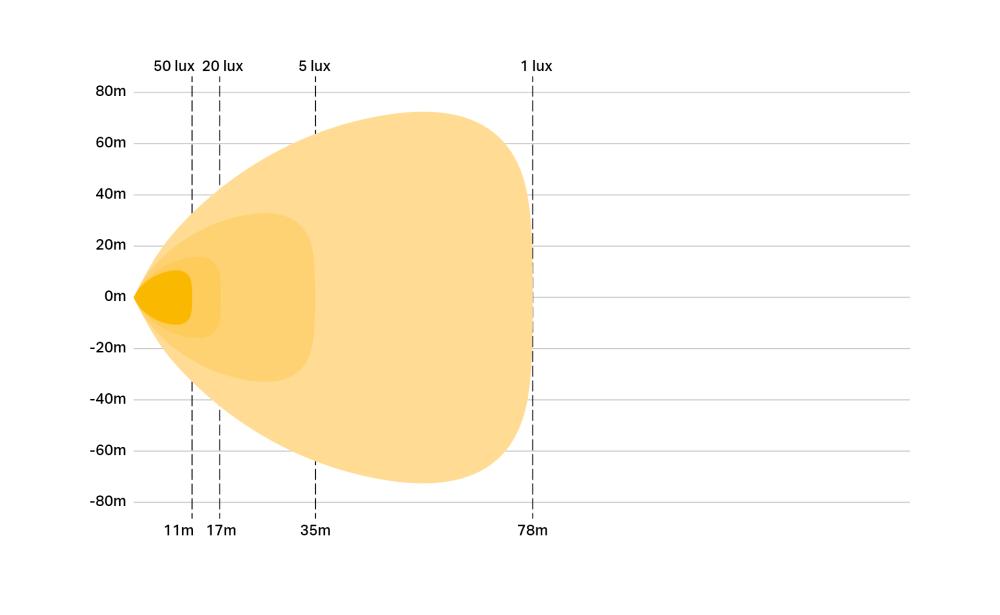

Linear-6 Flood photometric diagram
BEAM DISTRIBUTION
Horizontal150 degrees
Vertical60 degrees
Linear Flood beam distribution

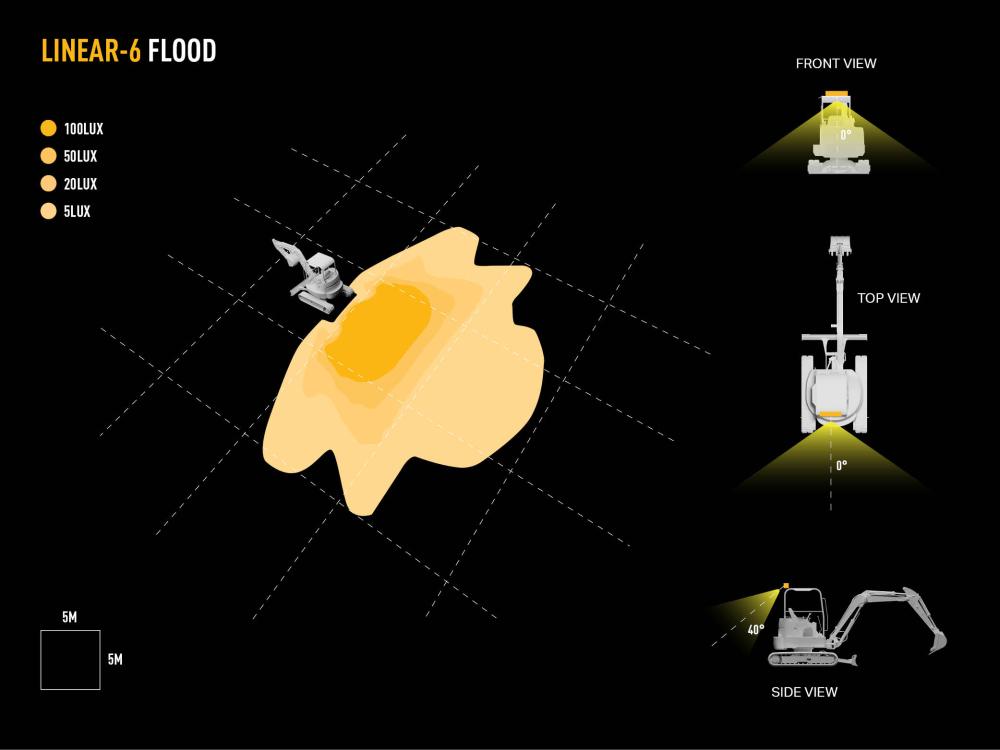

Linear-6 Flood Dialux Image
DIMENSIONS
Width242mm
Depth62mm
Height40mm

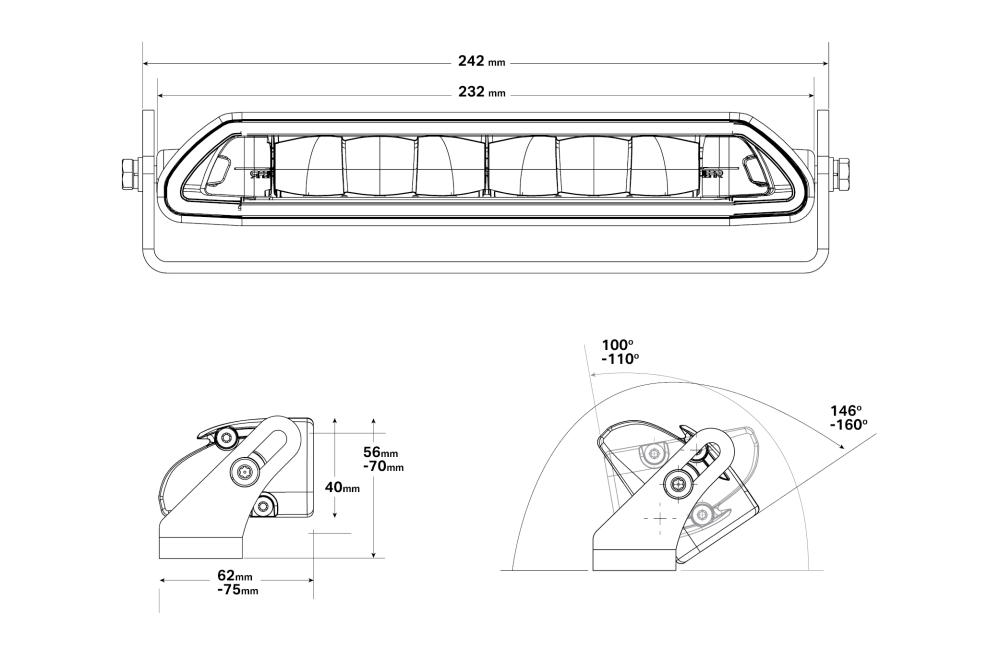

Linear-6 Flood dimensions diagram
Linear Flood Wiring Diagram
  • Linear-6 Flood LED work lightbar
  • U-Shaped Bracket (1162K)
