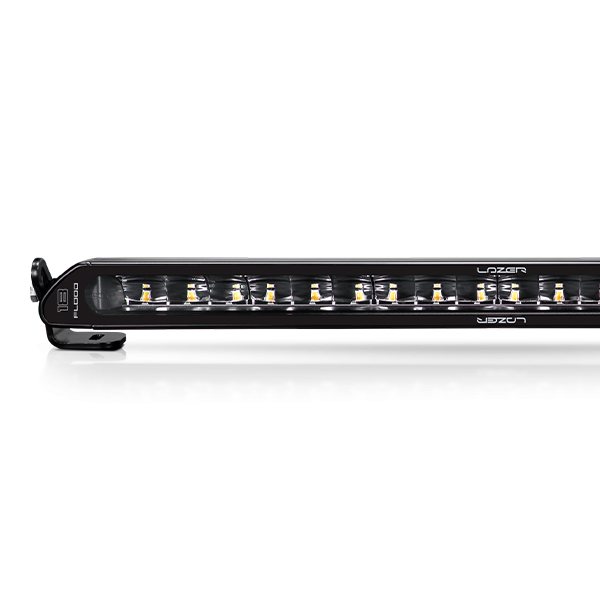

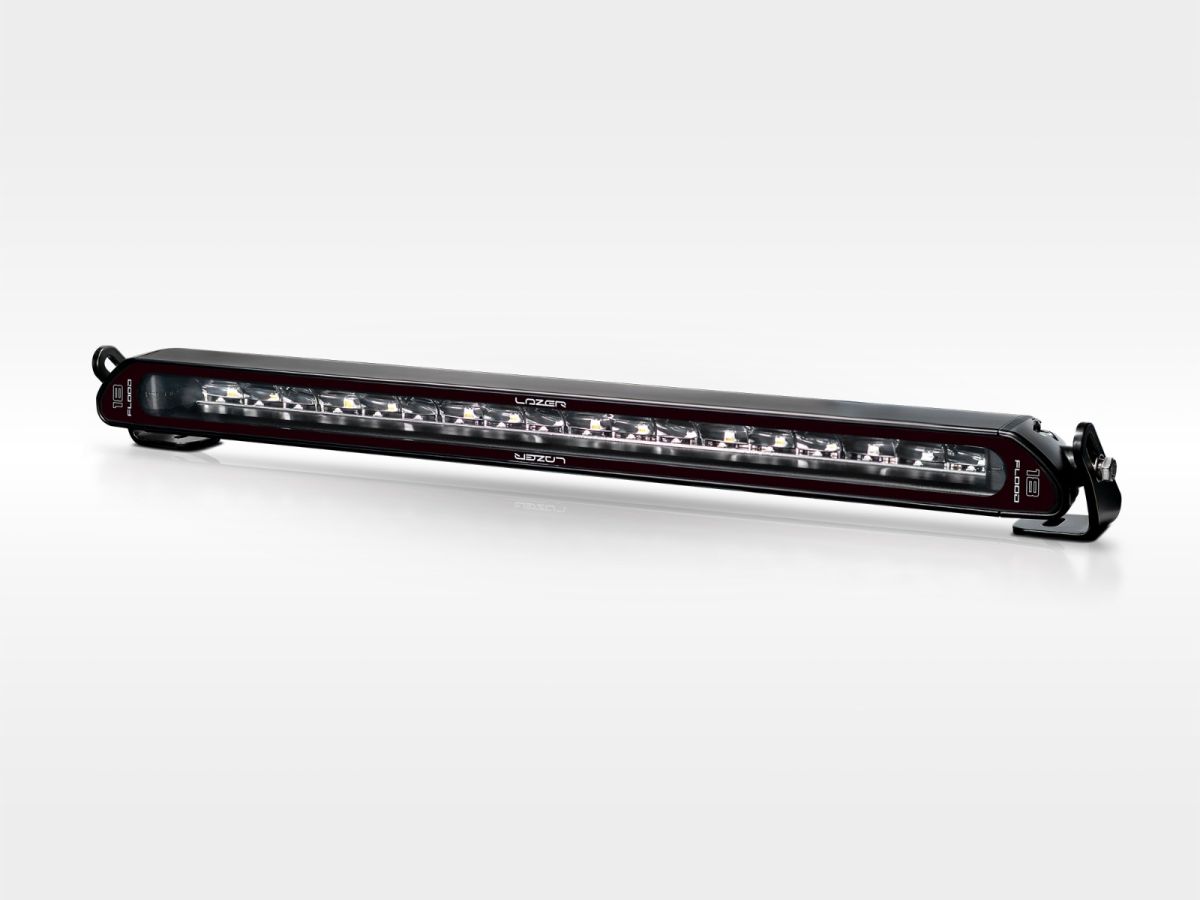

Linear-18 Flood

Product Code
#0L18-FL2-LNR

From £276.00

To £351.60

1. Lighting Options *
Linear-18 Flood

In stock

Find a Stockist

£276.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

For applications demanding uncompromising performance across expansive working environments, the Linear-18 Flood delivers exceptional capability through Lazer Lamps' latest WideField Optics and advanced electronic architecture. Designed and manufactured in the UK, the lamp combines premium engineering with refined optical performance to produce 10,098 effective lumens of exceptionally usable light.

The carefully engineered beam projects a broad, homogeneous spread of light with an exceptionally wide hotspot. The combination of premium bin, high-density LEDs and advanced optics deliver smooth, even illumination across the entire working area, with a 60 degree vertical and incredible 150 degree horizontal spread, improving visibility while reducing eye fatigue during prolonged operation thanks to the carefully selected 5000 kelvin colour temperature LEDs.

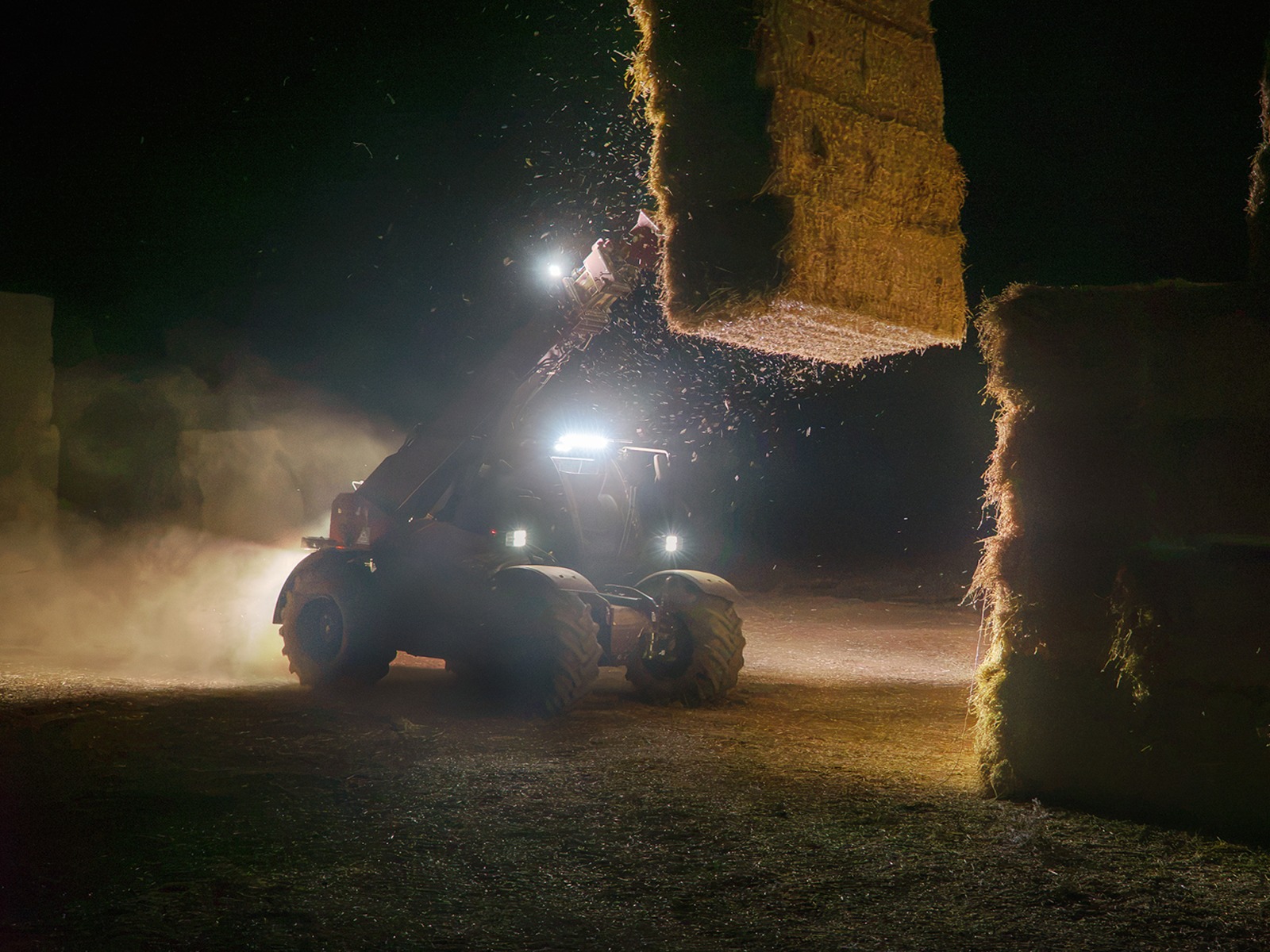

Integral to the lamp's performance is Precision Cut-Off Technology, delivering a sharp vertical cut-off that virtually eliminates wasted upward light. This refined beam pattern significantly reduces glare while providing excellent illumination for forestry, agriculture, construction, mining, recovery and heavy commercial applications where professional beam control is essential.

Generating 18,300 candela, the Linear-18 Flood projects effective illumination beyond 135 metres (1 lux), while its exceptionally wide spread ensures excellent peripheral visibility for safer and more efficient operation around large vehicles and machinery.

Its slim, contemporary profile integrates neatly into a wide range of installations, while robust construction and premium electronic design ensure dependable operation in the world's most demanding working environments.

Offering substantially enhanced optical performance together with exceptional value, the Linear-18 Flood reinforces Lazer Lamps' position as one of the industry's leading manufacturers of premium professional lighting solutions.

WideField optics with broad beam pattern and perfect homogeneity.

Precision cut-off to the vertical light distribution for no-glare illumination.

Utilises high-density, premium bin LED technology.

5000k colour temperature reduces eye strain and fatigue.

Slim, low profile lamp housing for unobtrusive lamp mounting.

Supplied with 4mm satin black, stainless steel, side mounting brackets.

Dynamic drive modulation regulates light output considering thermal conditions.

‘Unbreakable’ polycarbonate lens with lifetime guarantee.

Automotive grade corrosion resistance.

UNECE Reg10 approved.

IP68 and IP69K rated against water and dust ingress.

2 year warranty (5 year for Automotive/Commercial Fleet applications).

Supplied with male/female 2-pin (original) Deutsch connectors.

Designed & manufactured in the UK.

  LINEAR-18 FLOOD
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.09 kg
HIGH BEAM FUNCTION
Total Luminous Flux15,300 Lm
Total Driver 'FOV' Flux †10,098 Lm
Colour Temperature5000K
Power Consumption114 Watts
Current Draw (14.4V)7.9 Amps
Peak Current Draw10.58 Amps
Connector2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating #IP68 / IP69K
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
OPERATING CONDITIONS
Operating Temperature-40oC … +90oC
Vibration (BS EN 60068)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.



* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

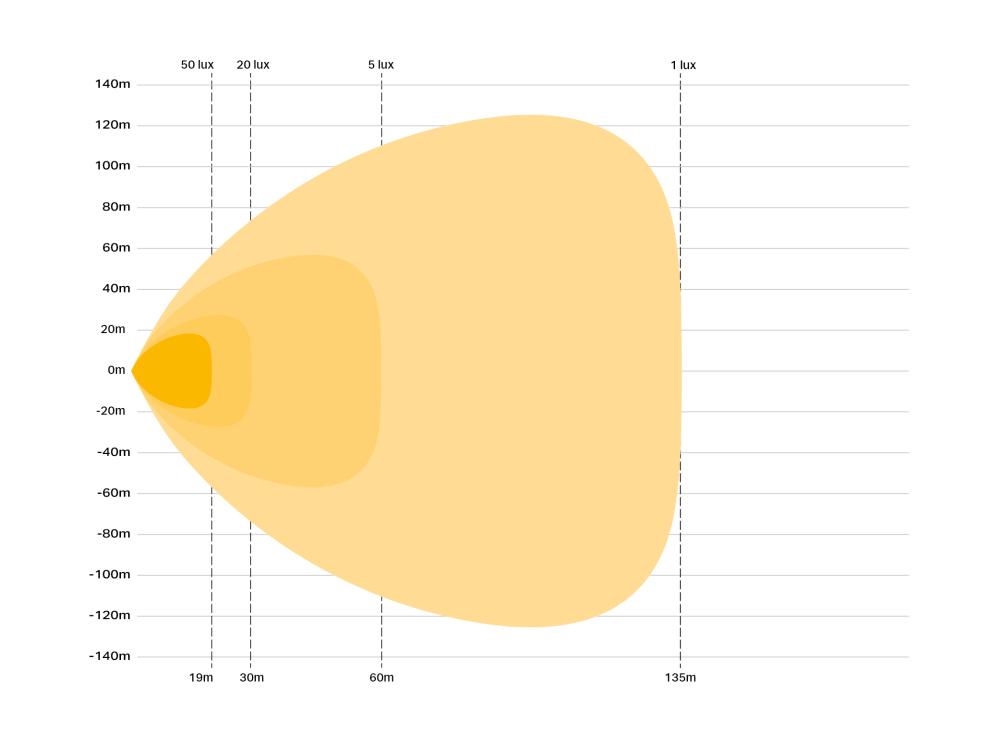

PHOTOMETRICS
1 lx Line135 metres
5 lx Line60 metres
20 lx Line30 metres
50 lx Line *19 metres
Linear-18 Flood photometric diagram
BEAM DISTRIBUTION
Horizontal150 degrees
Vertical60 degrees
Linear Flood beam distribution

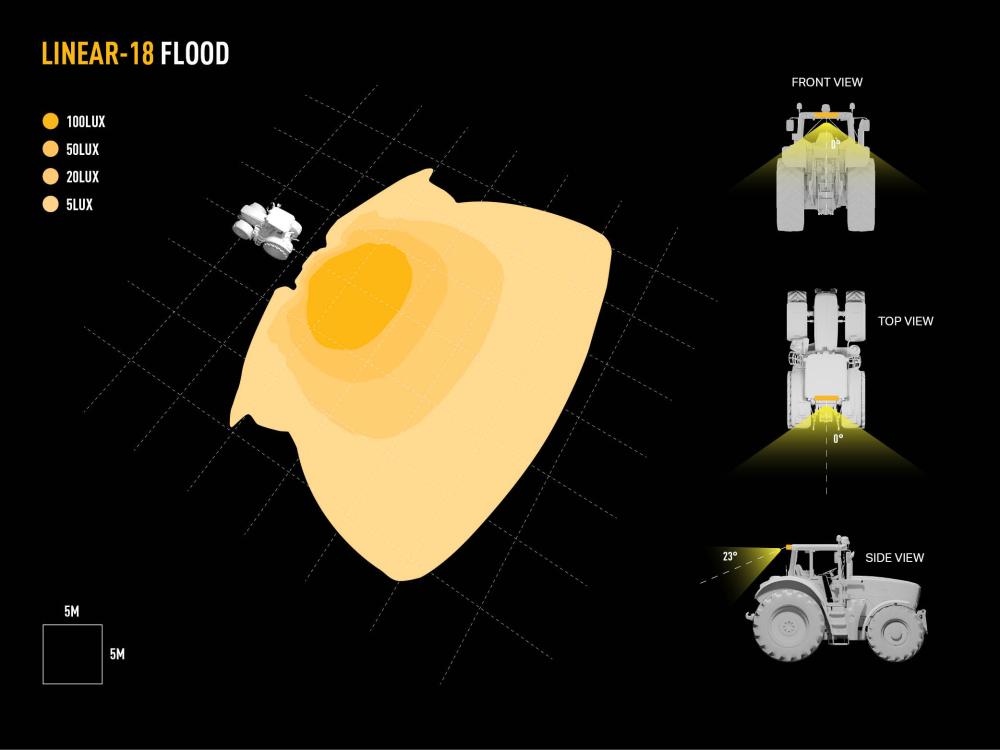

Linear-18 Flood Dialux Image

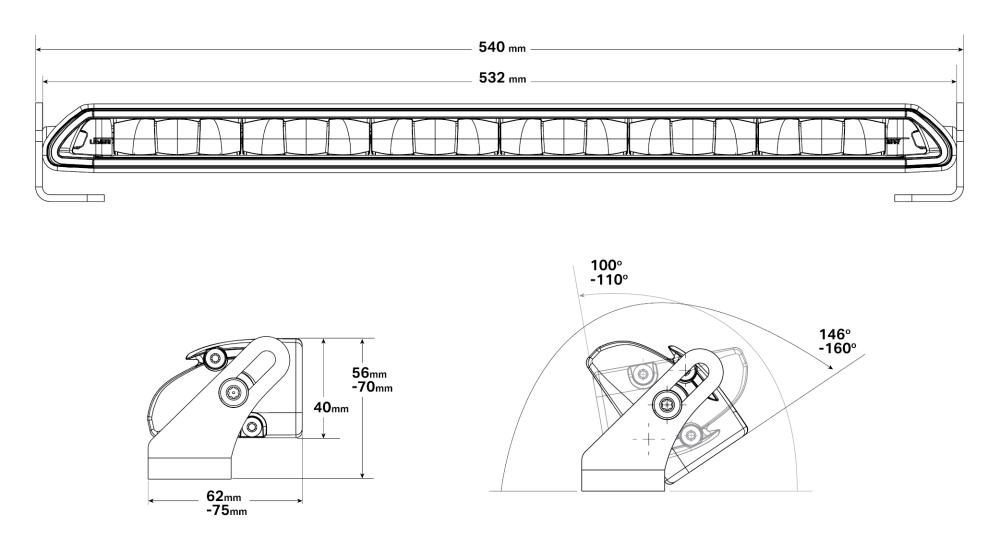

DIMENSIONS
Width540mm
Depth62mm
Height40mm
Linear-18 Flood dimensions diagram
Linear Flood Wiring Diagram
  • Linear-18 Flood LED work lightbar
  • Side Bracket Kit (1157K)
