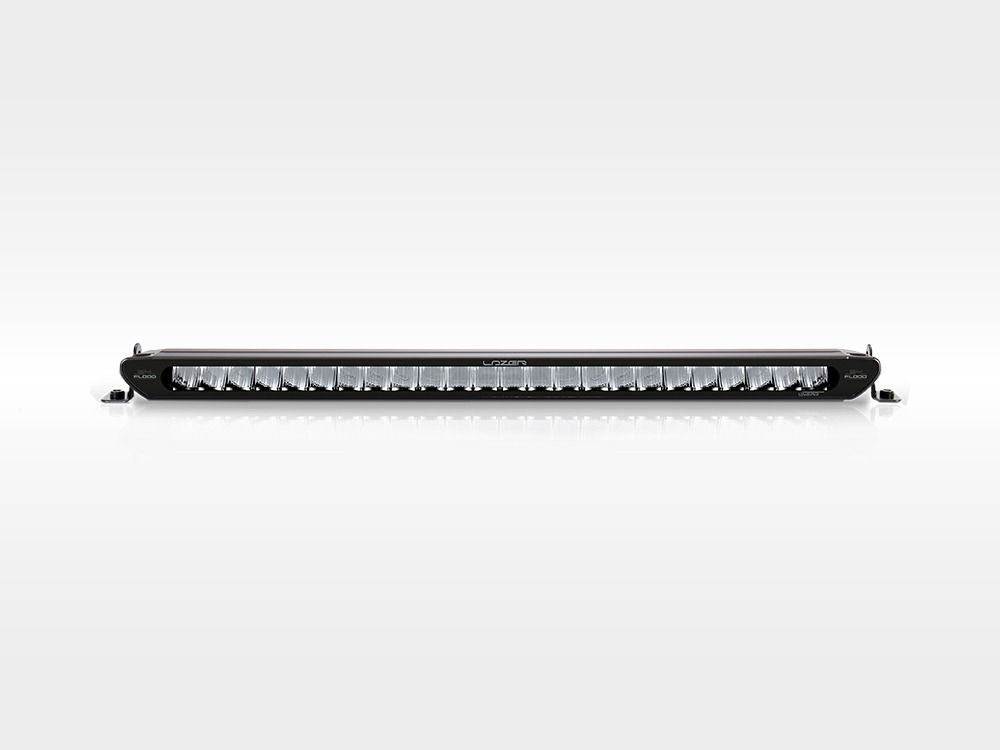

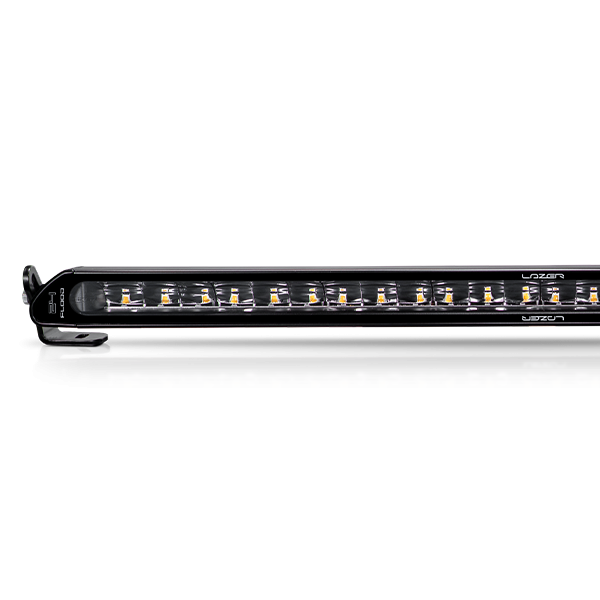

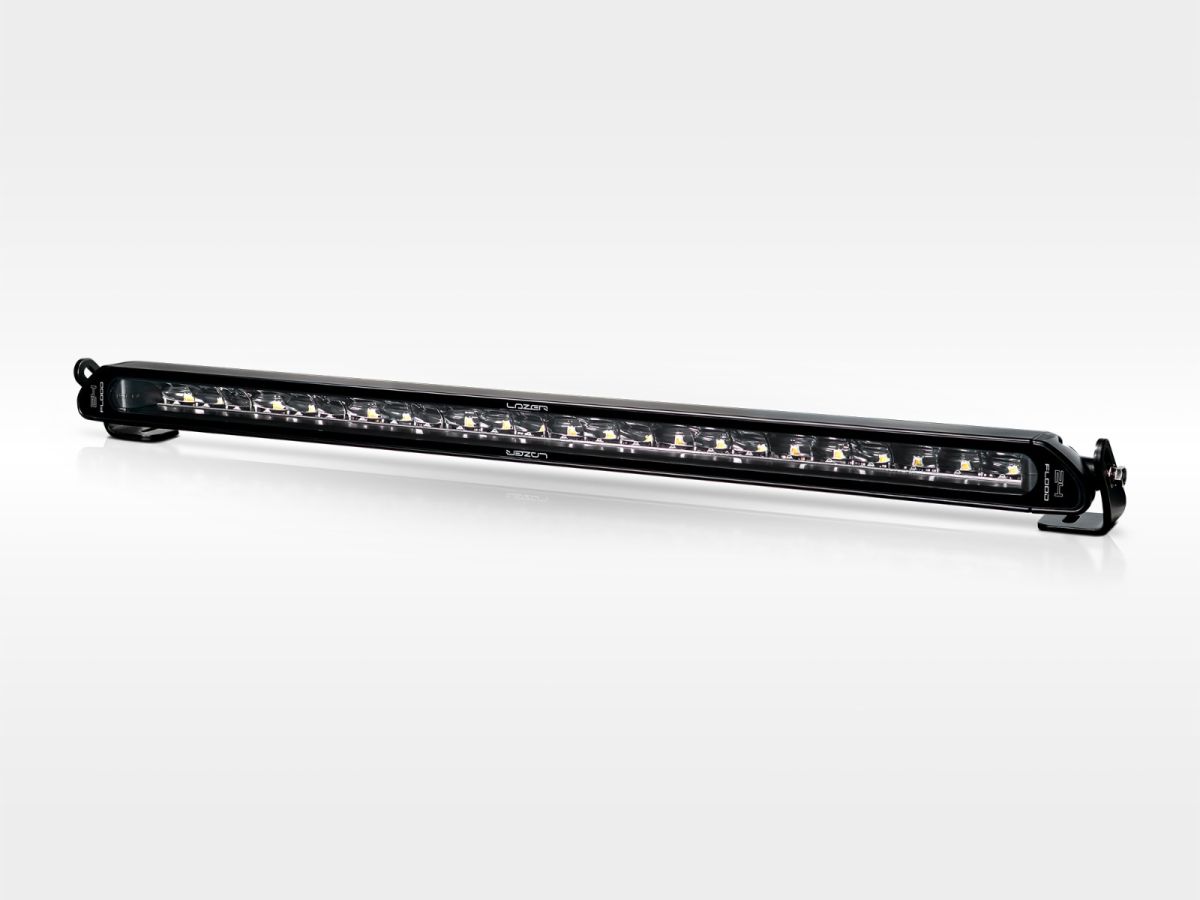

Linear-24 Flood

Product Code
#0L24-FL2-LNR

From £360.00

To £435.60

1. Lighting Options *
Linear-24 Flood

In stock

Find a Stockist

£360.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import duties. More Information.

The Linear-24 Flood represents the pinnacle of Lazer Lamps' new-generation Linear Flood range, delivering uncompromising illumination, exceptional optical control and premium UK engineering in a remarkably slim, versatile package. Incorporating the latest WideField Optics together with a completely redesigned electronic architecture, the lamp sets a new benchmark for professional LED work lighting, combining class-leading performance with outstanding value.

Producing over 20,000 raw lumens, the carefully engineered beam projects a broad, homogeneous spread of light with an exceptionally wide hotspot. The combination of premium bin, high-density LEDs and advanced optics deliver smooth, even illumination across the entire working area, with a 60 degree vertical and incredible 150 degree horizontal spread, improving visibility while reducing eye fatigue during prolonged operation thanks to the carefully selected 5000 kelvin colour temperature LEDs.

At the heart of the lamp's performance is Precision Cut-Off Technology. The precisely controlled beam incorporates a sharp vertical cut-off that directs light exactly where it's required while eliminating unnecessary upward light spill. The result is a highly effective no-glare lighting solution, ideally suited to roadside assistance and recovery vehicles, agriculture, construction, forestry, municipal fleets and heavy commercial applications, where maintaining maximum visibility without dazzling nearby operators or oncoming traffic is essential.

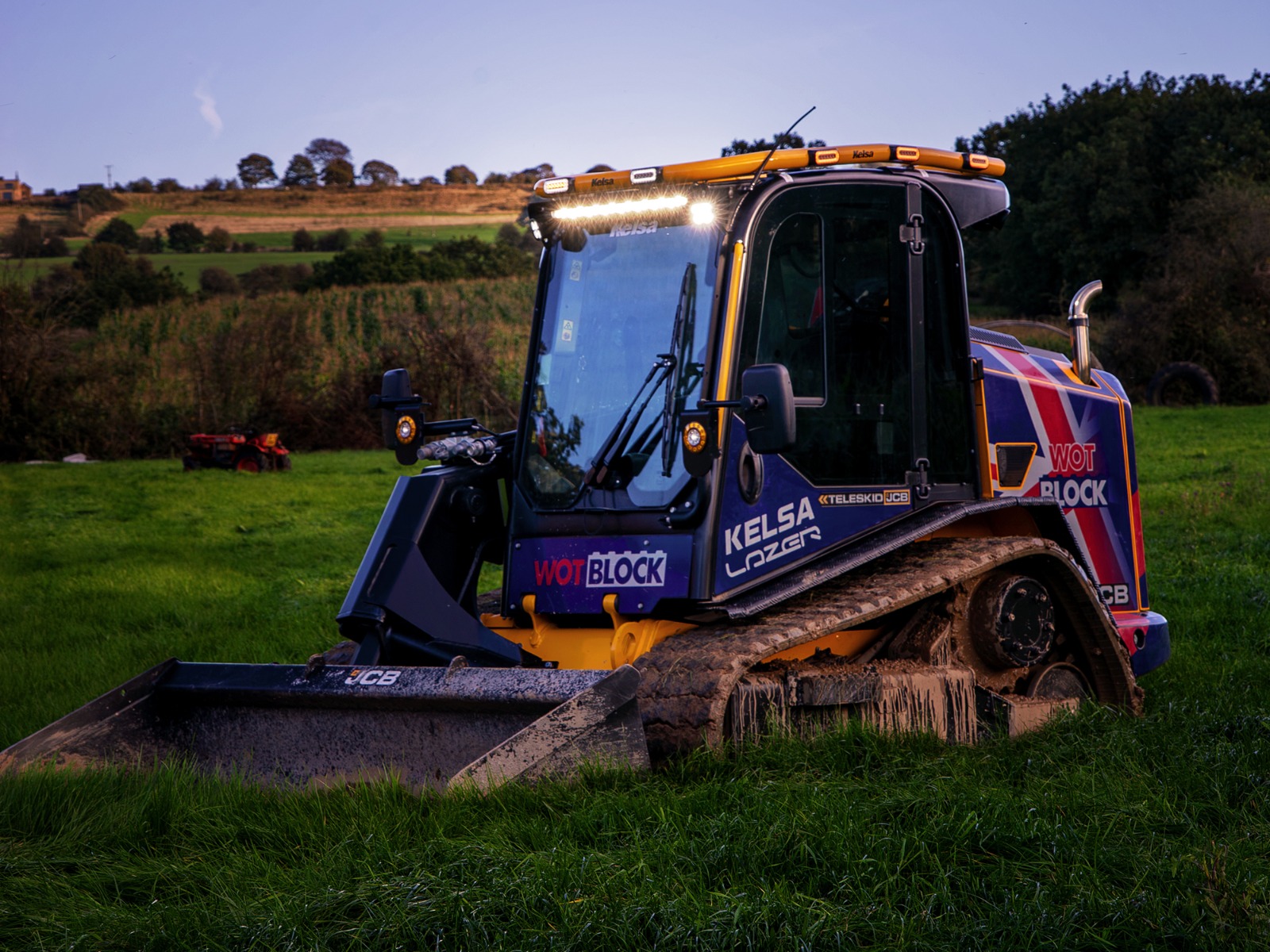

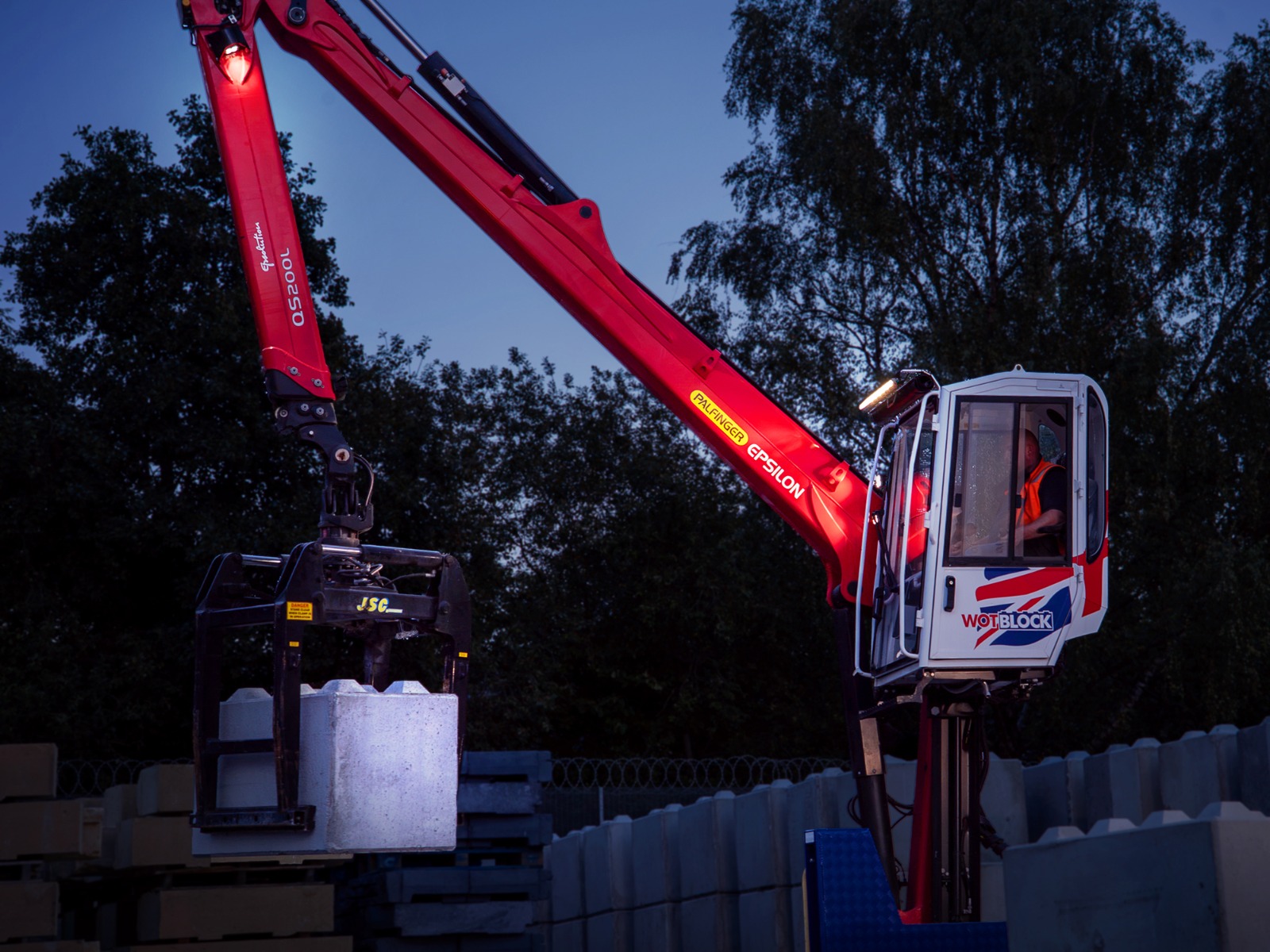

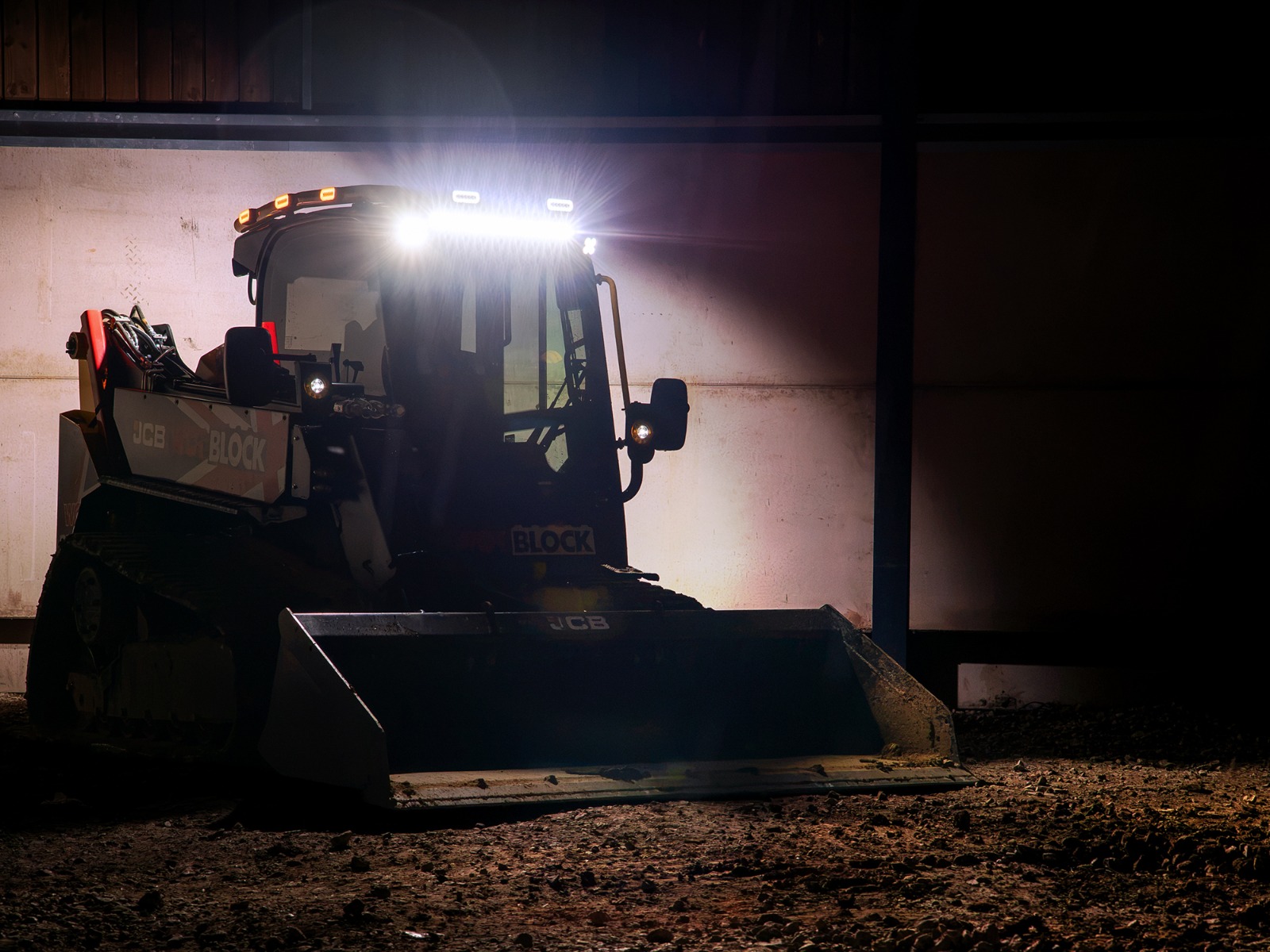

Delivering 24,400 candela, the Linear-24 Flood provides effective illumination beyond 150 metres (1 lux), while retaining exceptional close-range and peripheral coverage thanks to its uniquely wide beam pattern. Whether mounted high on commercial vehicles, integrated into roof racks, fitted to the rear of vans or installed on heavy machinery, the lamp provides outstanding versatility across an extensive range of professional applications.

Designed, engineered and manufactured in the UK, the Linear-24 Flood is built using premium materials, advanced thermal management and high-quality electronic components to ensure exceptional reliability in the harshest working environments. Every detail reflects Lazer Lamps' commitment to producing lighting solutions that professionals can depend upon, day after day.

By combining significantly improved optical performance, refined electronics and the renowned quality of a British-engineered Lazer Lamps product at a substantially more accessible price point, the Linear-24 Flood establishes itself as one of the most compelling professional work lighting solutions available today.

WideField optics with broad beam pattern and perfect homogeneity.

Precision cut-off to the vertical light distribution for no-glare illumination.

Utilises high-density, premium bin LED technology.

5000k colour temperature reduces eye strain and fatigue.

Slim, low profile lamp housing for unobtrusive lamp mounting.

Supplied with 4mm satin black, stainless steel, side mounting brackets.

Dynamic drive modulation regulates light output considering thermal conditions.

‘Unbreakable’ polycarbonate lens with lifetime guarantee.

Automotive grade corrosion resistance.

EMC Protection – CISPR-25 Class 3.

IP68 and IP69K rated against water and dust ingress.

2 year warranty (5 year for Automotive/Commercial Fleet applications).

Supplied with male/female 2-pin (original) Deutsch connectors.

Designed & manufactured in the UK.

  LINEAR-24 FLOOD
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux20,400 Lm
Total Driver 'FOV' Flux †13,464 Lm
Colour Temperature5000K
Power Consumption152 Watts
Current Draw (14.4V)10.6 Amps
Peak Current Draw12.2 Amps
Connector2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating #IP68 / IP69K
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
OPERATING CONDITIONS
Operating Temperature-40oC … +90oC
Vibration (BS EN 60068)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.



* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.


PHOTOMETRICS
1 lx Line156 metres
5 lx Line70 metres
20 lx Line35 metres
50 lx Line *22 metres

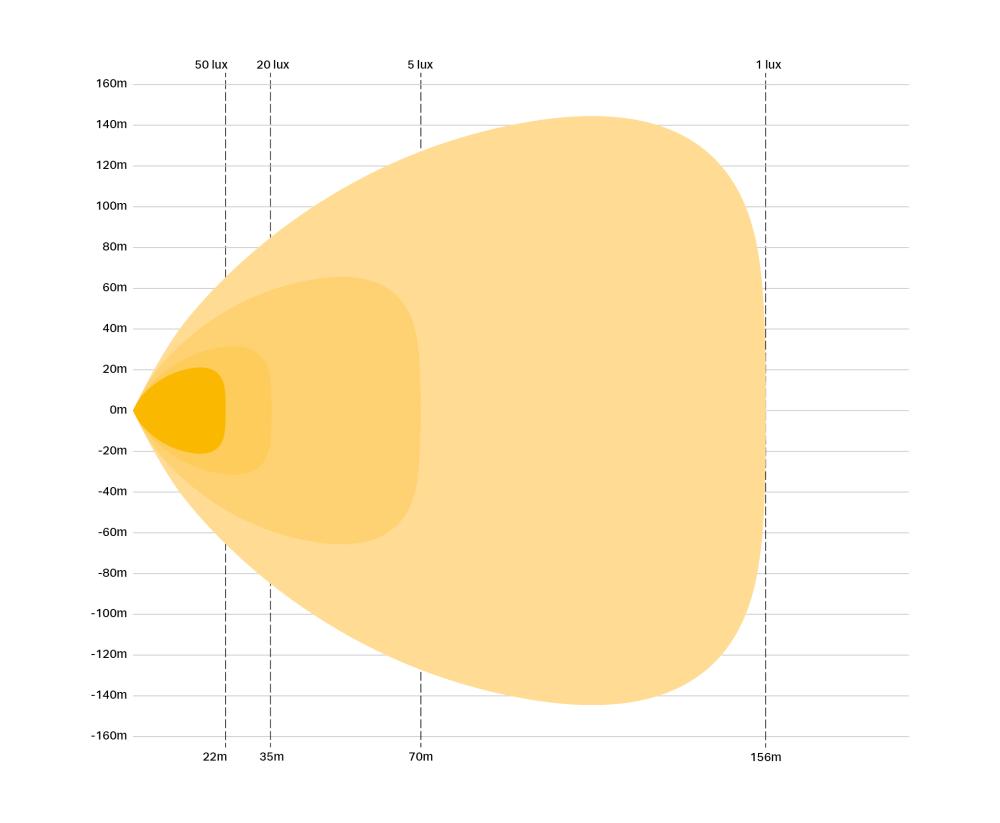

Linear-24 Flood photometric diagram

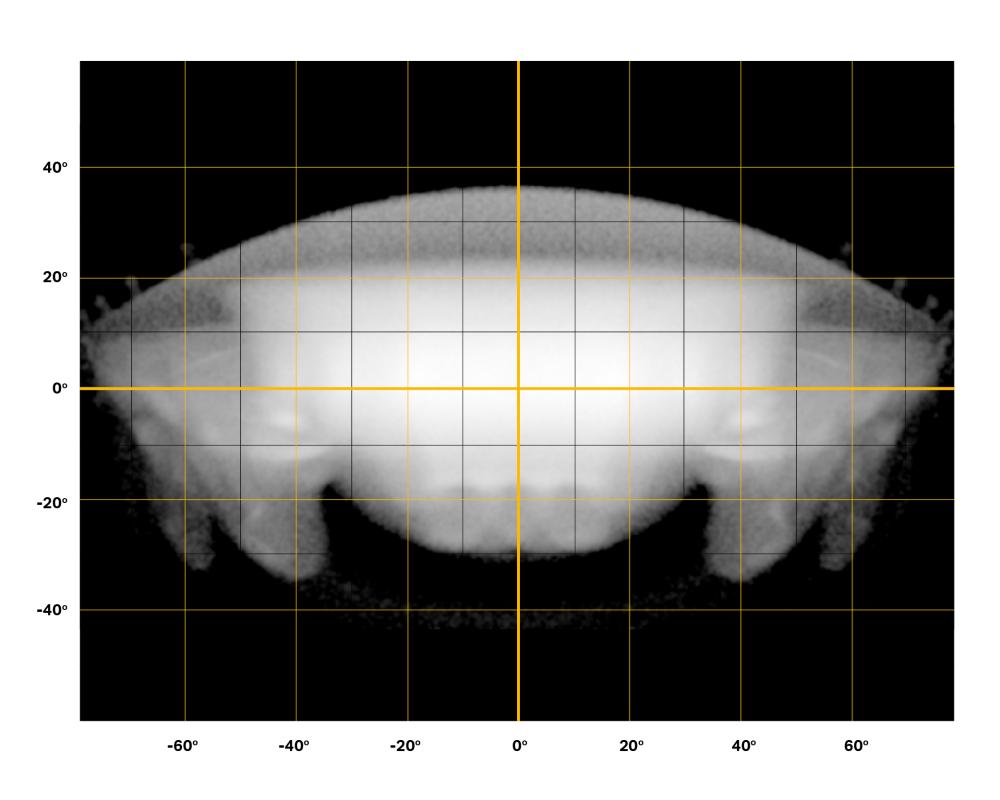

BEAM DISTRIBUTION
Horizontal150 degrees
Vertical60 degrees
Linear Flood beam distribution

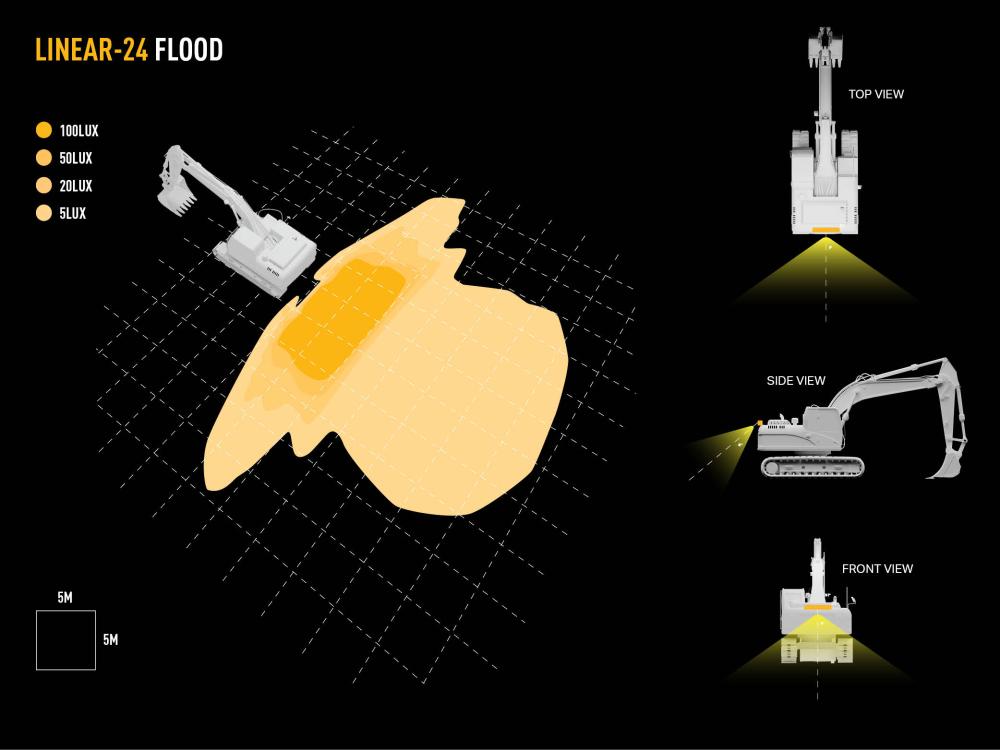

Linear-24 Flood Dialux Image
DIMENSIONS
Width690mm
Depth62mm
Height40mm

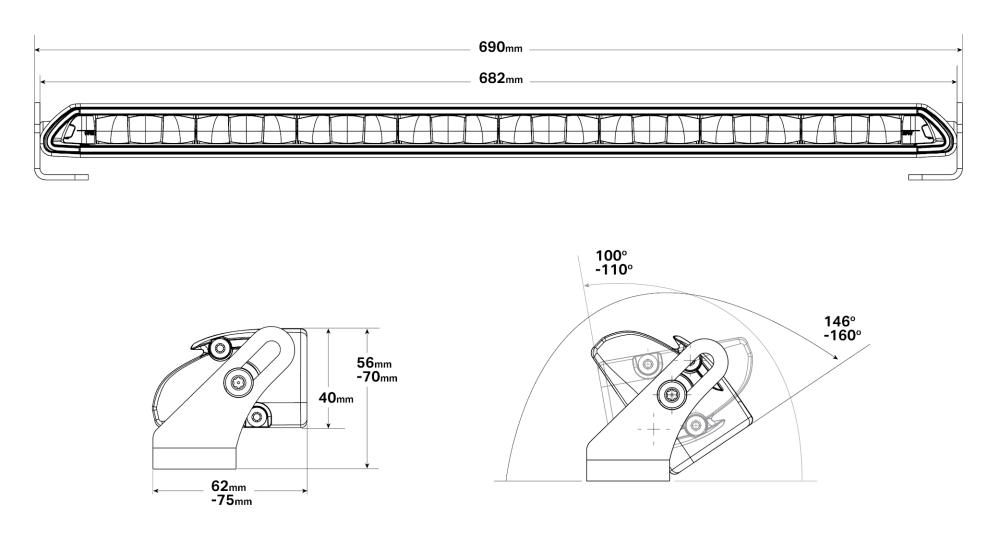

Linear-24 Flood dimensions diagram

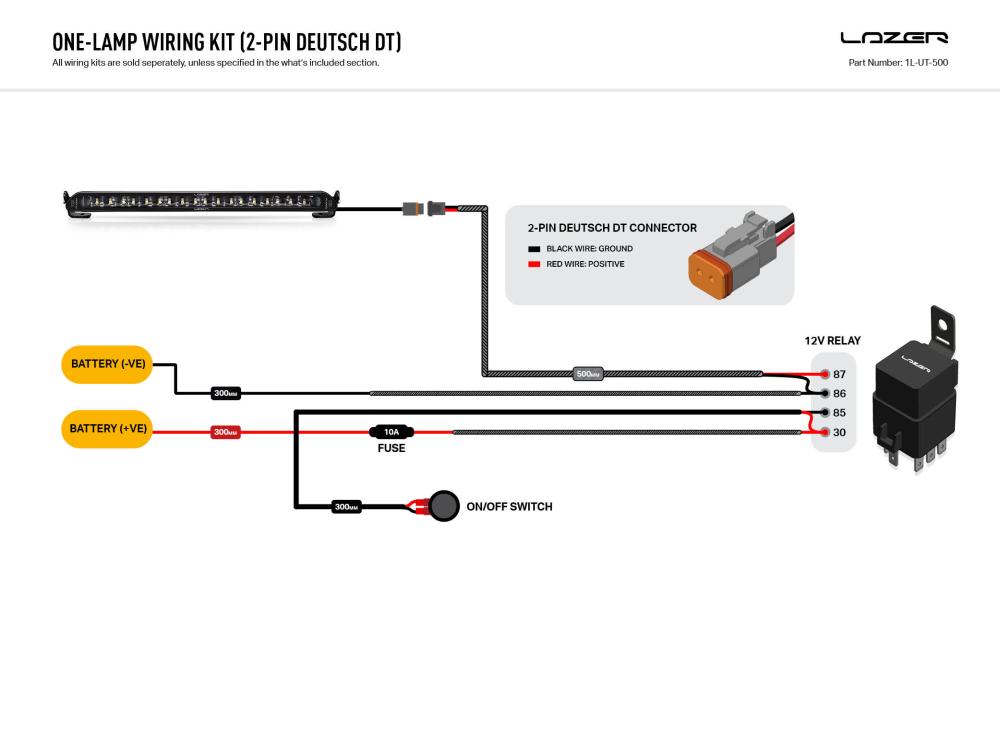

Linear Flood Wiring Diagram
  • Linear-24 Flood LED work lightbar
  • Side Bracket Kit (1157K)
