AIR-90
AIR-90 AIR-90 AIR-90 AIR-90 AIR-90 AIR-90 AIR-90 AIR-90 AIR-90 AIR-90

AIR-90

Product Code
#0A90-B

From £396.00

To £627.60

1. Lighting Options *
AIR-90

In stock

Find a Stockist

£396.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import dutiesMore Information.

When your truck is your livelihood and it represents you and your business, it deserves the best! Introducing AIR, Lazer Lamps’ latest LED light bar range specially designed and engineered with the heavy truck and commercial vehicle market in mind. The AIR-90, broadly equivalent in lighting performance to the market-leading Triple-R 1000, is also now available with integrated UNECE approved Beacon function enhancing the lamps appeal and functionality yet further. Across the AIR range every consideration has been given through our in-house UK design, engineering, and manufacturing functions to present a high-performance LED solution with striking product design elevated by a monocoque lens construction and signature position light feature. Expectant of any Lazer product, the lighting performance and build quality is completely assured.

Emitting 9,160 raw lumen, and with 1 lux delivered to 574m, the AIR-90 is an exceptional all-round product for everyday use. Furthermore the light distribution has been carefully engineered with the vertical. The lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.

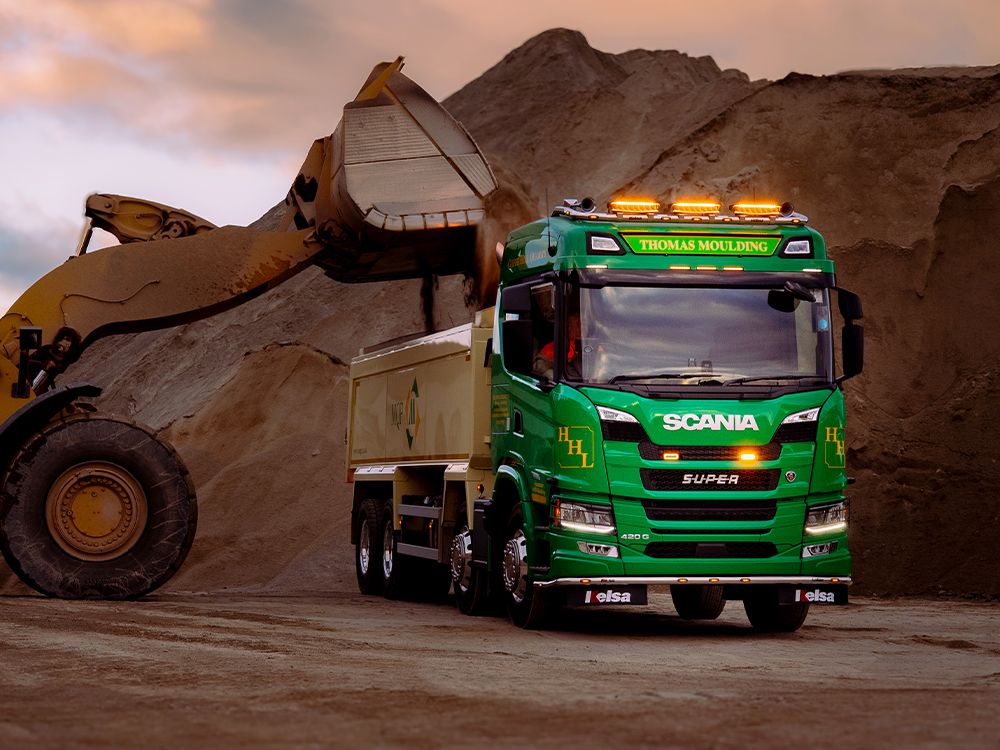

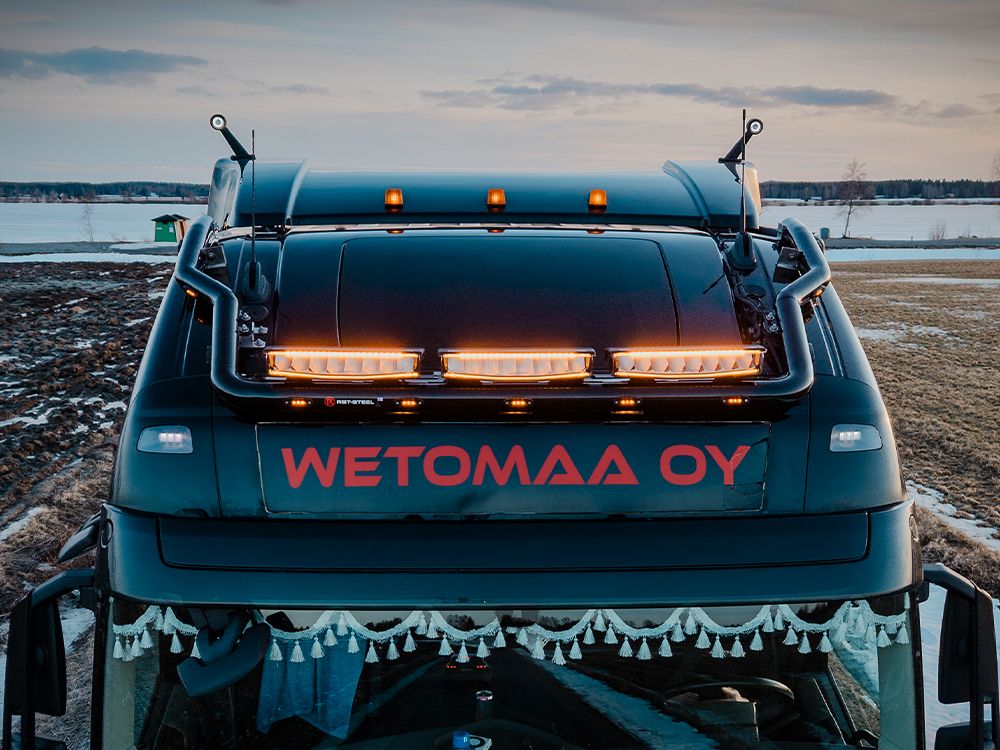

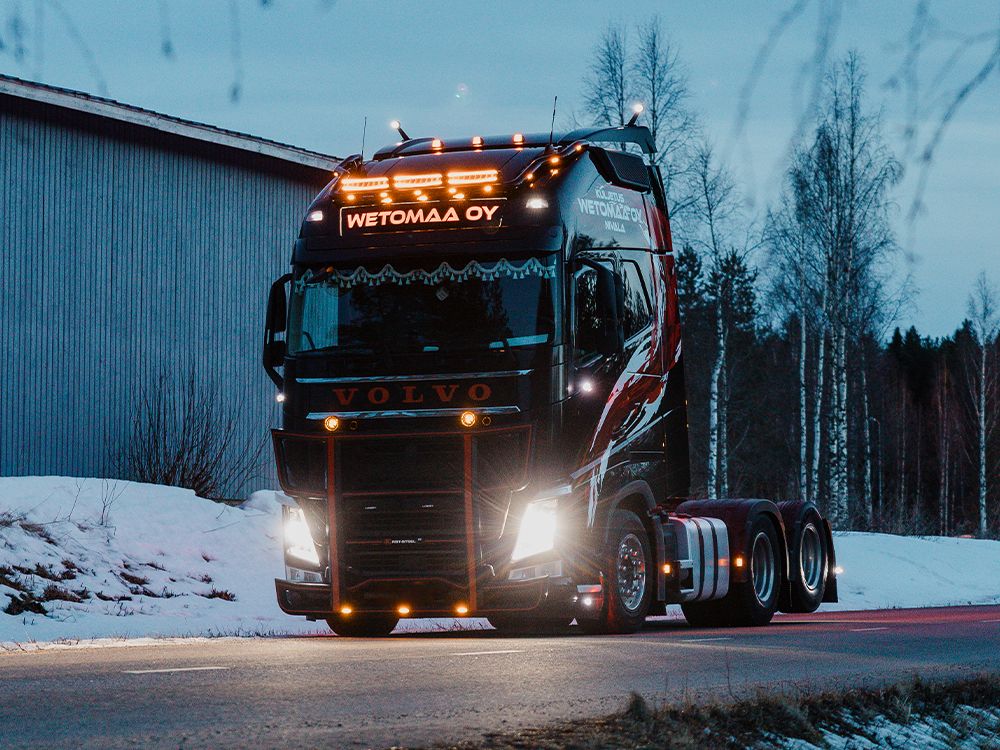

Amplifying the appeal of the AIR-90, the Beacon function variant is approved to UNECE Reg65 as a narrow-field, night-limits, (XA1) beacon light, with 2 different amber warning light patterns which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand.

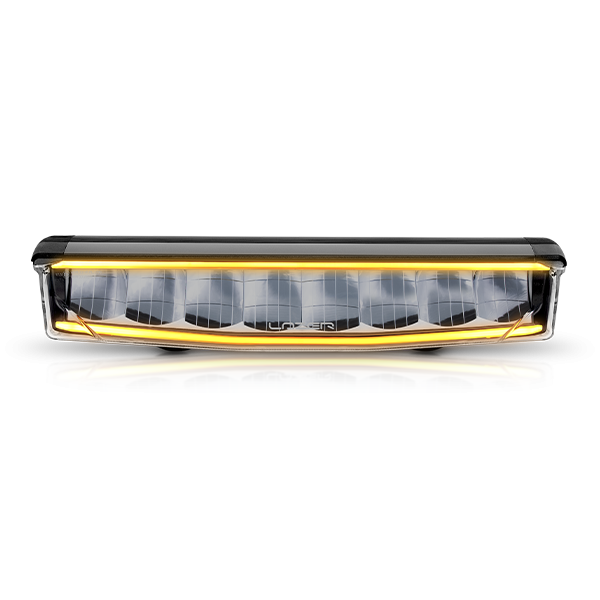

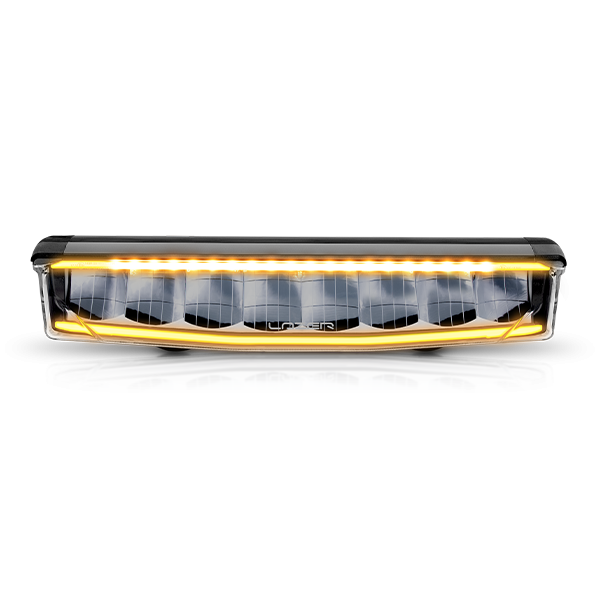

Aside from the enviable levels of high beam illumination provided, the AIR products all feature an integrated ‘twin’ white or amber position light. Aside from the safety benefits, utilising the latest technologies and materials has created a distinctive signature appearance viewed from near or afar. When operating the white position light this is approved to the UNECE Reg148 standard for on-road use.

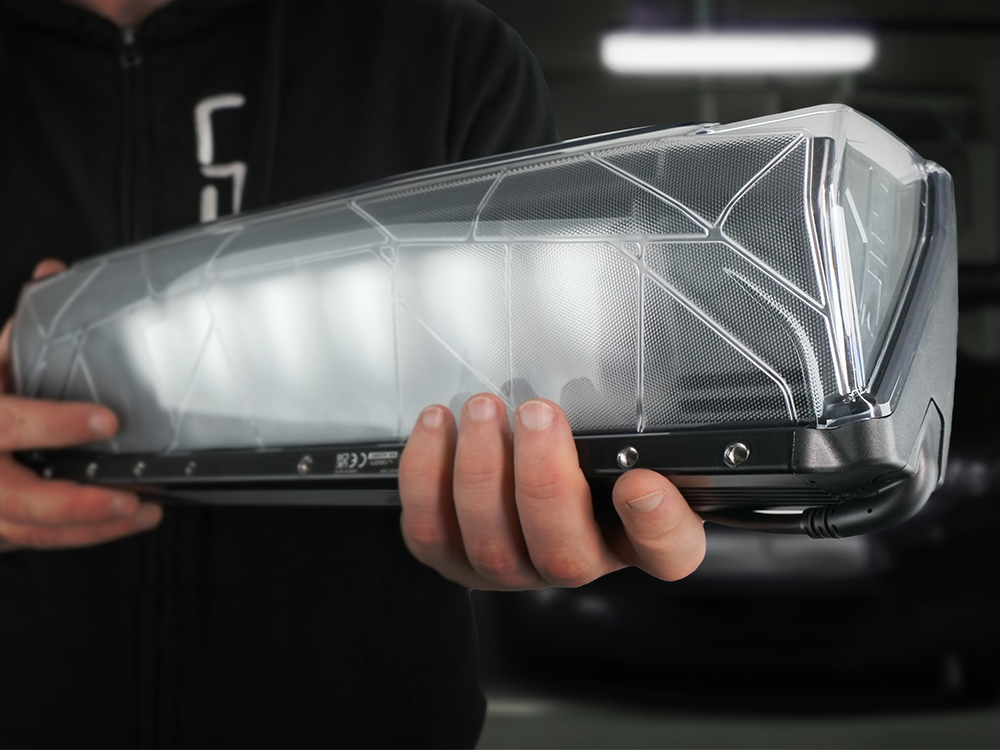

The styling and build quality of the AIR products is amplified by its injection moulded monocoque polycarbonate lens. Boasting a lifetime guarantee on the ‘unbreakable’ lens, finished with hardcoat lacquer (an example of one of the upstream manufacturing process Lazer also manages in-house), the lens flows down and under the lamp, with a textured appearance to the underside. The unique lamp design is enhanced thanks to the supplied innovative ‘Centre Mount’ system which permits the light to sit much lower relative to the mounting point for a clean sleek installation.

Like all Lazer high performance lights, the AIR range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

Patent-pending injection moulded monocoque lens with texture effect to the underside

Integrated white or amber position light guides

Adoption of the latest high-efficiency premium-bin LEDs

Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road

Patent-pending lamp design

ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)

Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.

Threaded mounting locations to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee

20cm lamp cable complete with male/female 3-pin Superseal connectors

IP68 watertight

5-year warranty

Vehicle wiring kits available

Designed & manufactured in Britain

AIR-90 BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.65 kg
HIGH BEAM FUNCTION
Total Luminous Flux9,160 Lm2,290 Lm
Total Driver 'FOV' Flux 6,229 Lm1,557 Lm
Colour Temperature5000K5000K
Power Consumption90 Watts14 Watts
Current Draw (14.4V)7.1 Amps1 Amps
Peak Current Draw8.5 Amps1.3 Amps
Connector3-Pin / 6-Pin Superseal (+20cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 - Ref: 17.5 (in Low Output Mode only)
Postion Light (white)ECE R148
Beacon FunctionECE R65 (XA1)
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1149 metres574 metres
0.5 lx Line812 metres406 metres
1 lx Line574 metres287 metres
3 lx Line332 metres166 metres

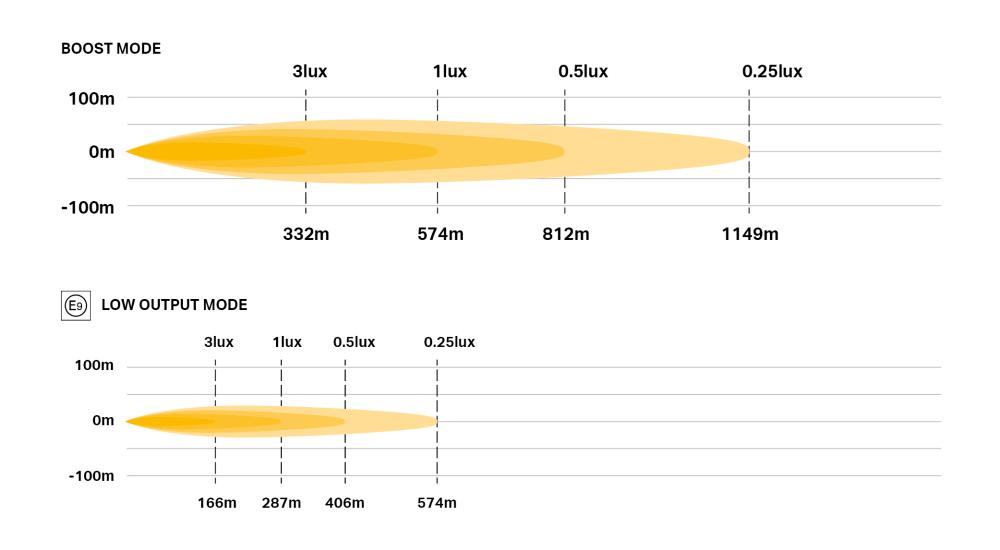

AIR-90 photometric diagram
BEAM DISTRIBUTION
Horizontal34 degrees
Vertical13 degrees

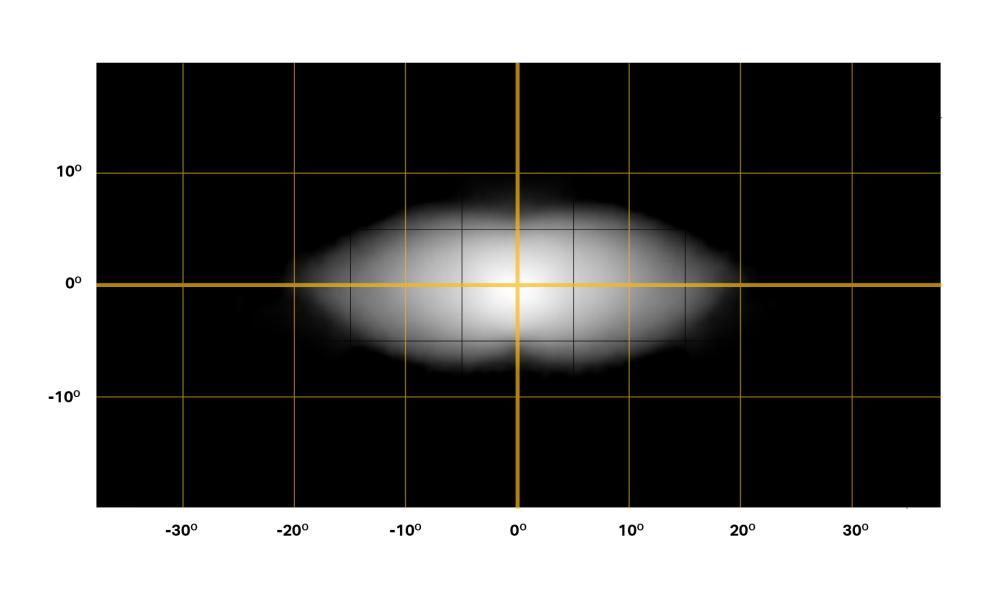

AIR-90 beam distribution

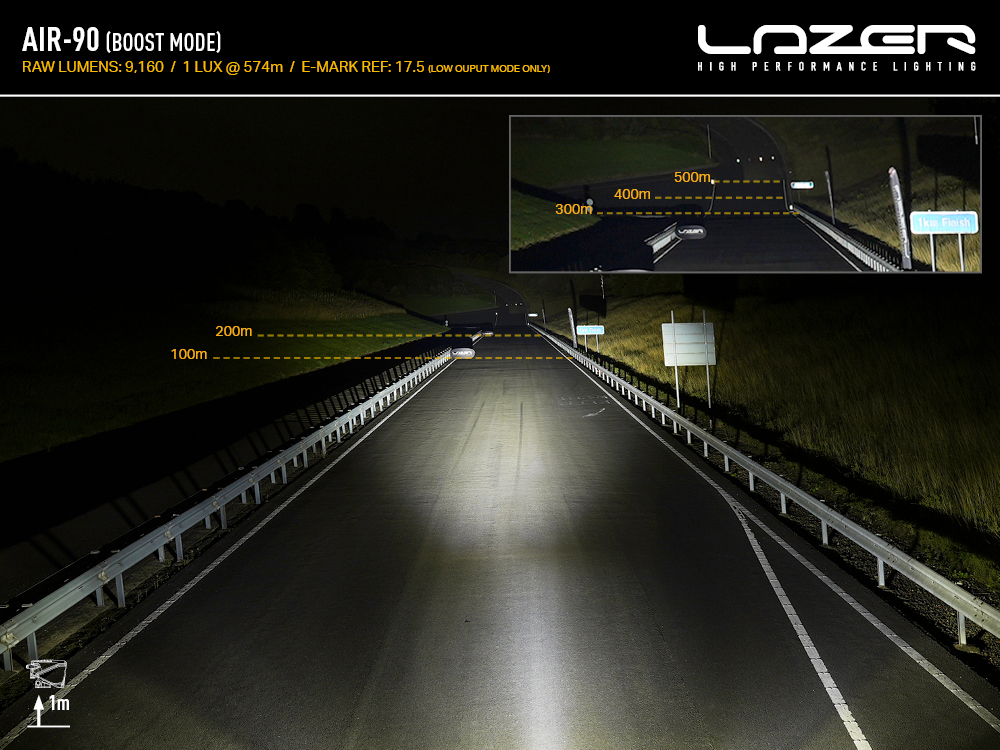

AIR-90 Beam Photo
DIMENSIONS
Width411mm
Depth106mm
Height82mm

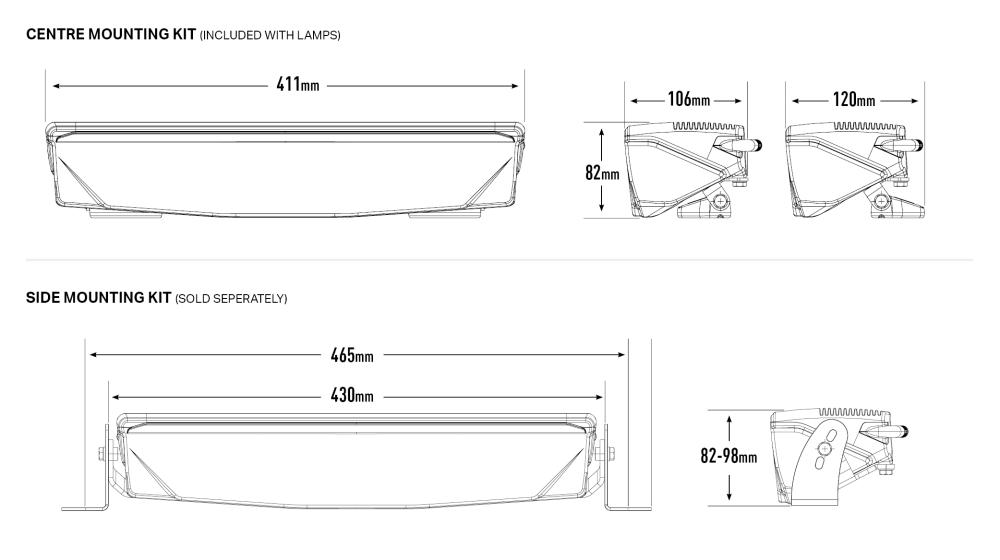

AIR dimensions diagram
  • x1 AIR-90 LED Lamp
  • x2 Centre Mounting Kit (1151K)
  • Installation Instructions
