Product Code
#0A130-EL-B

From £420.00

To £480.00

1. Lighting Options *
AIR-130 Elite

In stock

Find a Stockist

£420.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import dutiesMore Information.

When your truck is your livelihood and it represents you and your business, it deserves the best! Introducing AIR, Lazer Lamps’ latest LED light bar range specially designed and engineered with the heavy truck and commercial vehicle market in mind. Within the range are 3 variants of lamp: AIR-55, AIR-90, and AIR-130 Elite, with the numerical value representing the power consumption of each lamp. Across the AIR range every consideration has been given through our in-house UK design, engineering, and manufacturing functions to present a high-performance LED solution with striking product design elevated by a monocoque lens construction and signature position light feature. Expectant of any Lazer product, the lighting performance and build quality is completely assured.

The AIR-130 Elite, broadly equivalent in its light distribution to the Triple-R 1000 Elite, represents the pinnacle of lighting performance considering the lamp’s size and power rating, all the time with the robustness and reliability assured backed up by our comprehensive 5-year warranty. Emitting 12,500 raw lumen, and with 1 lux delivered to 592m, the AIR-130 Elite includes black PCBs to give the lamp a stealth appearance in contrast to other products within the AIR range. The light distribution has been carefully engineered with the vertical and horizontal spread optimised for road use including from higher vehicle mounting positions. The high beam performance of the light, operating at 100%, is above the permissible UNECE Reg 149 parameters for a road-legal driving light, so dual-output functionality allows for a reduction in the output to be within the regulation limits.

Aside from the enviable levels of high beam illumination provided, the AIR products all feature an integrated ‘twin’ white or amber position light. Aside from the safety benefits, utilising the latest technologies and materials has created a distinctive signature appearance viewed from near or afar. When operating the white position light this is approved to the UNECE Reg148 standard for on-road use.

The styling and build quality of the AIR products is amplified by its injection moulded monocoque polycarbonate lens. Boasting a lifetime guarantee on the ‘unbreakable’ lens, finished with hardcoat lacquer (an example of one of the upstream manufacturing process Lazer also manages in-house), the lens flows down and under the lamp, with a textured appearance to the underside. The unique lamp design is enhanced thanks to the supplied innovative ‘Centre Mount’ system which permits the light to sit much lower relative to the mounting point for a clean sleek installation.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

Patent-pending injection moulded monocoque lens with texture effect to the underside

Black PCBs present a unique stealth appearance

Integrated white or amber position light guides

Adoption of the latest high-efficiency premium-bin LEDs

Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road

Patent-pending lamp design

ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)

Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point

Threaded mounting locations to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee

20cm lamp cable complete with male/female 3-pin Superseal connectors

IP68 watertight

5-year warranty

Vehicle wiring kits available

Designed & manufactured in Britain

AIR-130 ELITE BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.65 kg
HIGH BEAM FUNCTION
Total Luminous Flux12,500 Lm3,125 Lm
Total Driver 'FOV' Flux 7,875 Lm1,968 Lm
Colour Temperature5000K5000K
Power Consumption130 Watts21 Watts
Current Draw (14.4V)10.2 Amps1.5 Amps
Peak Current Draw11.6 Amps2.3 Amps
Connector3-Pin Superseal (+20cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 - Ref: 17.5 (in Low Output Mode only)
Postion Light (white)ECE R148
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1183 metres592 metres
0.5 lx Line837 metres418 metres
1 lx Line592 metres296 metres
3 lx Line342 metres171 metres

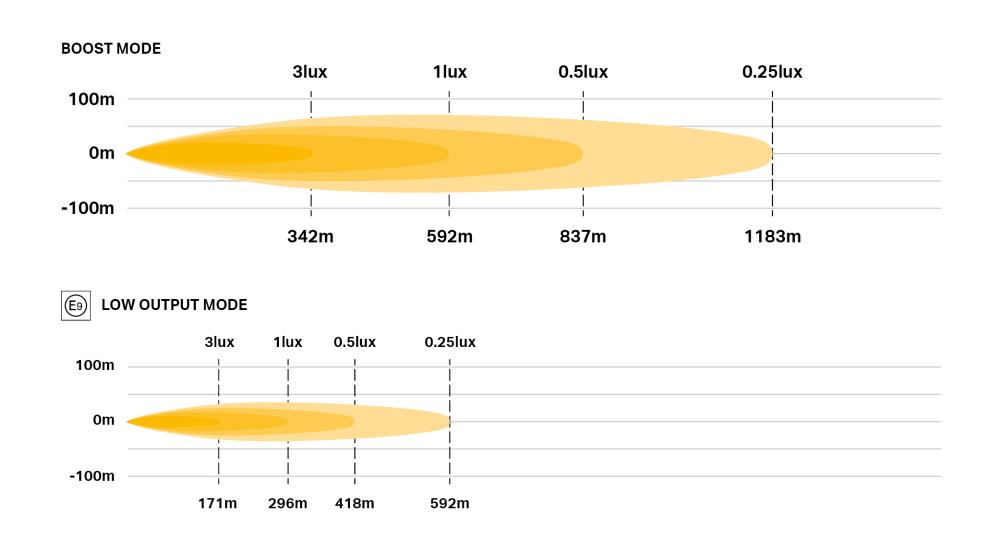

AIR-130 photometric diagram
BEAM DISTRIBUTION
Horizontal34 degrees
Vertical17 degrees

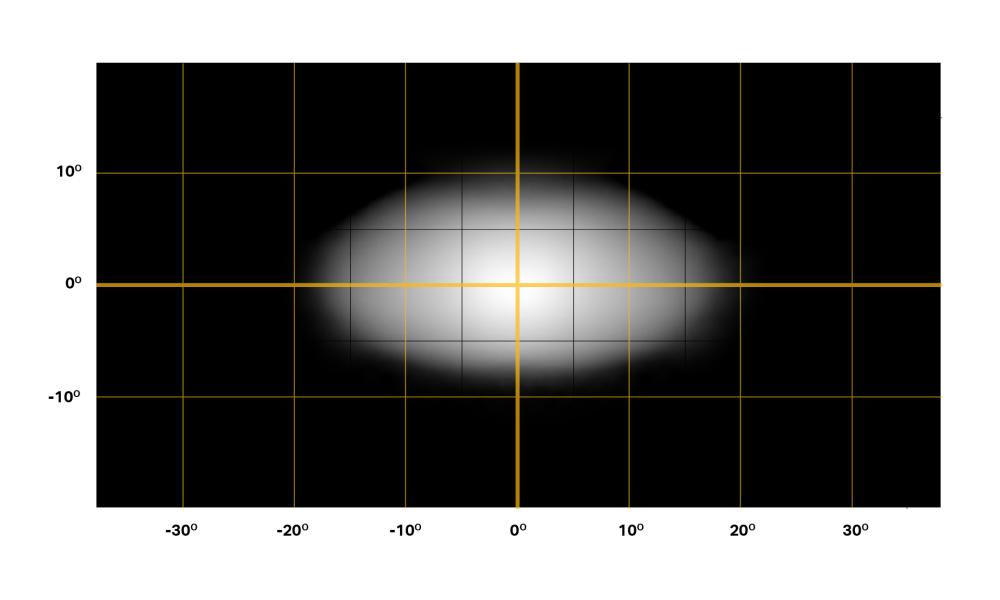

AIR-130 beam distribution

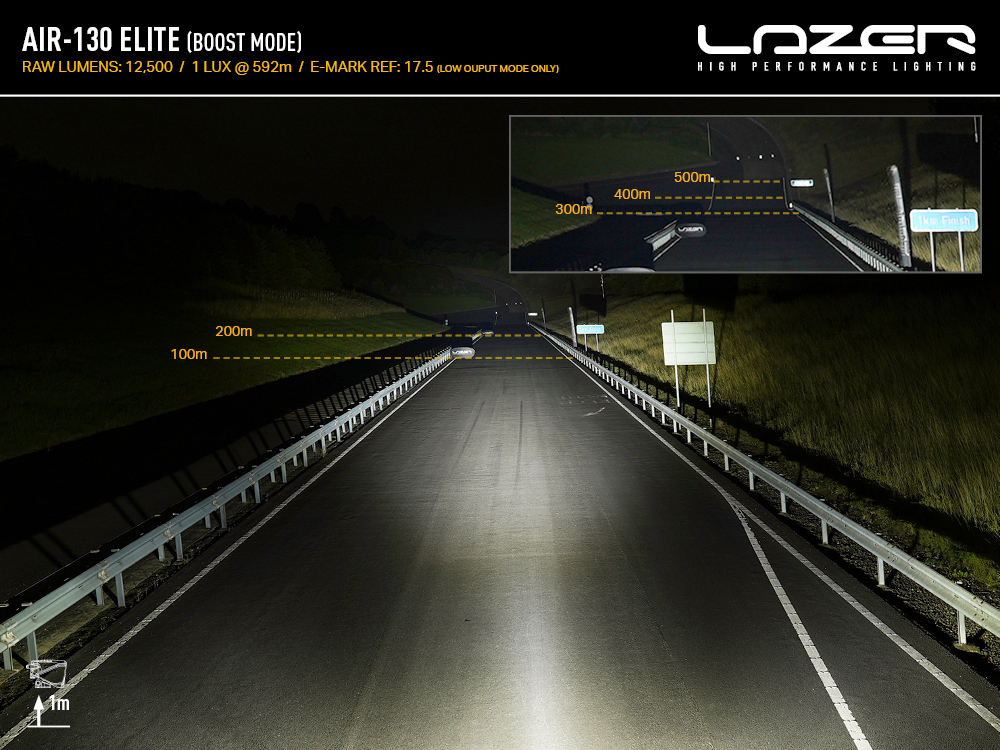

AIR-130 Beam Photo
DIMENSIONS
Width411mm
Depth106mm
Height82mm
AIR dimensions diagram
  • x1 AIR-130 Elite LED Lamp
  • x2 Centre Mounting Kit (1151K)
  • Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.

@LAZERLAMPS
