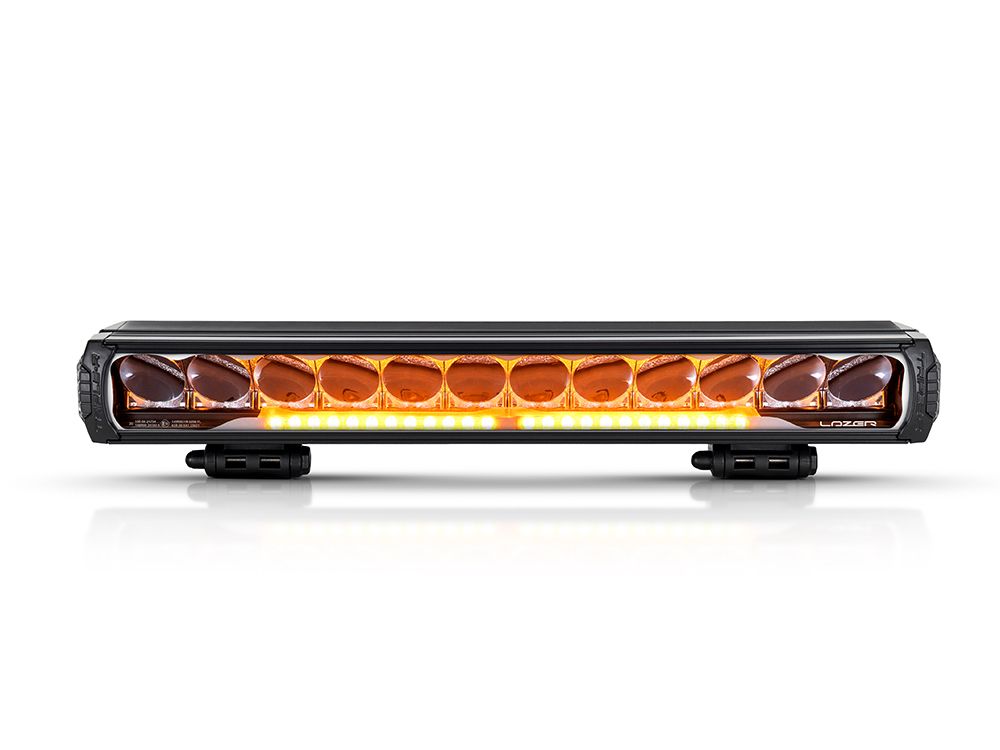

Triple-R 1250 Beacon

Product Code
00R12-BCN-B
£678.00
Find a
Stockist

The Triple-R 1250, an increasingly popular option amongst the heavy truck and LCV sectors, now features an integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp combines with the possibility to connect a white or amber position/side light function, as well as the exceptional high-beam driving light function, to really set the lamp apart from the competition.

The Triple-R 1250 delivers a spot beam pattern ideal for road use. The lamp’s design is clean and contemporary, with an aggressive edge, matching the aesthetic design prevalent on modern vehicles. Boasting an impressive 13,860 lumens and delivering 1 lux to 750m, the auxiliary LED driving light provides a good horizontal spread of light without compromising the up/down spread, ensuring the suitability of the lights, even when mounted high on vehicles such as heavy trucks. Approved to UNECE Regulation 149 as a high-beam driving light, the lamp incorporates Lazer’s innovative dual-output E-Boost technology, activated by a quick flash of the lights on and off, with the output rapidly reducing to minimise glare from reflective road signs via the Flash-to-Dim function. Additionally, the Triple-R 1250 Beacon can be programmed to operate permanently in either High or Low Output mode, with the Low Output mode fully compliant with UNECE Reg 149 for on-road high-beam use.

Included within the lamp is the option to connect an integrated position/side light function, helping you get noticed as much during the day as at night. Connect the white or amber-coloured position light by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1250 Beacon act as a high-beam driving light only. The position light function (white only) is approved to ECE Regulation 148 to operate in parallel with your standard vehicle lights.

For customers seeking a dynamic start-up or welcome mode, the Triple-R 1250 Beacon’s position lights can be set to gradually brighten at start-up, or smoothly cycle between white and amber (or vice versa) when the vehicle is started or the side lights are activated.

Also approved to ECE Regulation 65 as a narrow-field special warning light, the lamp offers 16 selectable amber warning flash patterns. These can be set and synchronised across multiple lamps during installation, or adjusted on demand using a momentary switch. Examples of the various flash patterns can be viewed in the Videos section below.

Like all Lazer products, the Triple-R 1250 with Beacon function has been designed and engineered to deliver a powerful driving light with a perfectly homogenous beam pattern. The colour temperature of the light, at 5000K, is carefully selected to maximise the definition of any obstacles ahead, while ensuring a comfortable drive, even over prolonged periods of time. Performance is complemented by a superior build quality, born of our in-house UK manufacturing, and backed by our comprehensive 5-year warranty.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Triple-R 1250 Beacon

High density, premium-bin 11W LED technology

Integrated white or amber position light function – UNECE Reg148 (White only)

Integrated amber flashing beacon function – UNECE Reg65

ECE approved for on-road high-beam use (dual-output technology) – UNECE Reg149

Flash-to-Dim functionality for avoiding glare from road signs

Dual-output functionality – High and Low Output modes

Dynamic start-up / Welcome Mode – two options activated as/if required.

Ultra-reflective vacuum-metallised optics delivering a spot beam pattern

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and automotive-grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ hardcoated polycarbonate lens with lifetime guarantee.

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 6-pin Superseal connectors

Designed & manufactured in the UK

Technical Specifications
1x TRIPLE-R 1250
BEACON

BOOST
MODE

LOW OUTPUT/
E-MARK MODE


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.4 kg

HIGH BEAM FUNCTION
Total Luminous Flux 13,860 Lm 2,772 Lm
Total Driver 'FOV' Flux † 8,358 Lm 1,672 Lm
Colour Temperature 5000K
Power Consumption 125 Watts 25 Watts
Peak Current Draw 10 Amps 2 Amps
Current Draw (14.4V) 8.7 Amps 1.7 Amp
Connector 6-Pin Superseal (+20cm Cable)

DIMENSIONS
Width 411 mm
Depth 106 mm
Height 82 mm

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R149 - Ref: 20 (in Low Output Mode only)
Position Light (white only) ECE R148
Beacon Function ECE R65 (XA1)
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 28° / 16°
0.25 lx Line 1500m 671m
0.5 lx Line 1061m 474m
1 lx Line 750m 335m
3 lx Line 433m 194m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Triple-R 1250 Beacon LED Lamp
  • x2 Centre Mount (1114k)
  • x1 Installation Instructions
