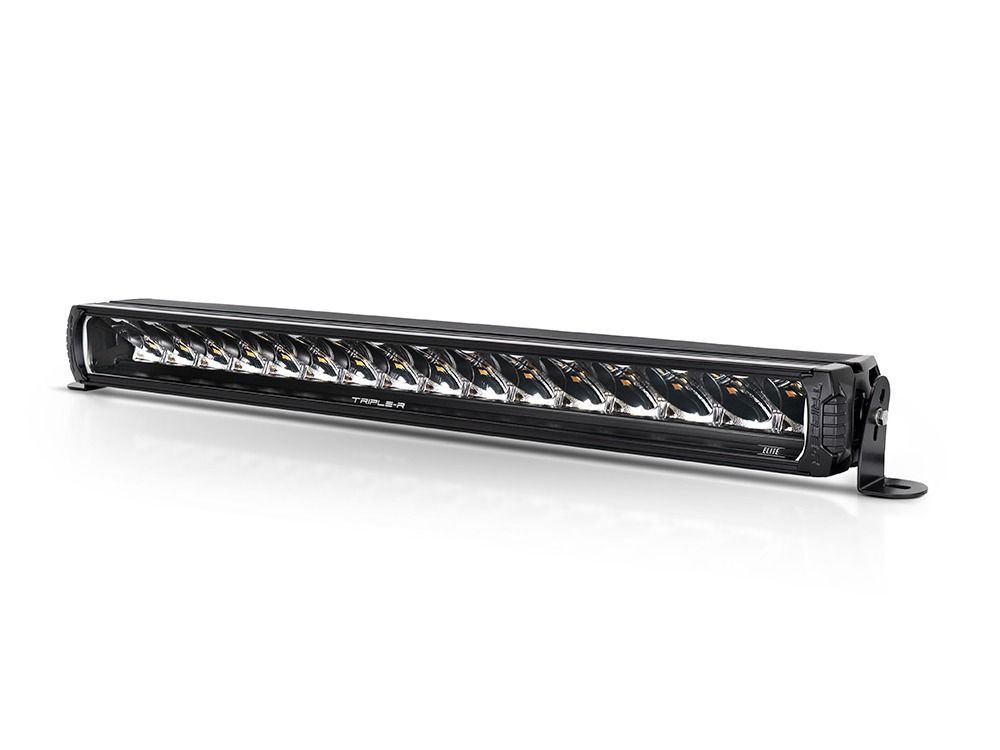

Triple-R 16 Elite+

Yellow LEDs optimised for use in snow / fog / dust conditions.

Low output mode for when full power isn’t needed, delivering comfortable illumination with reduced glare from reflective surfaces and surroundings.

Combo mode providing white high beam combined with supplemental yellow LEDs for powerful visibility and a softer colour temperature.

Integrated white and amber backlight function.

Features pre-wired male/female 2-pin Aptiv and 3-pin Superseal connectors.

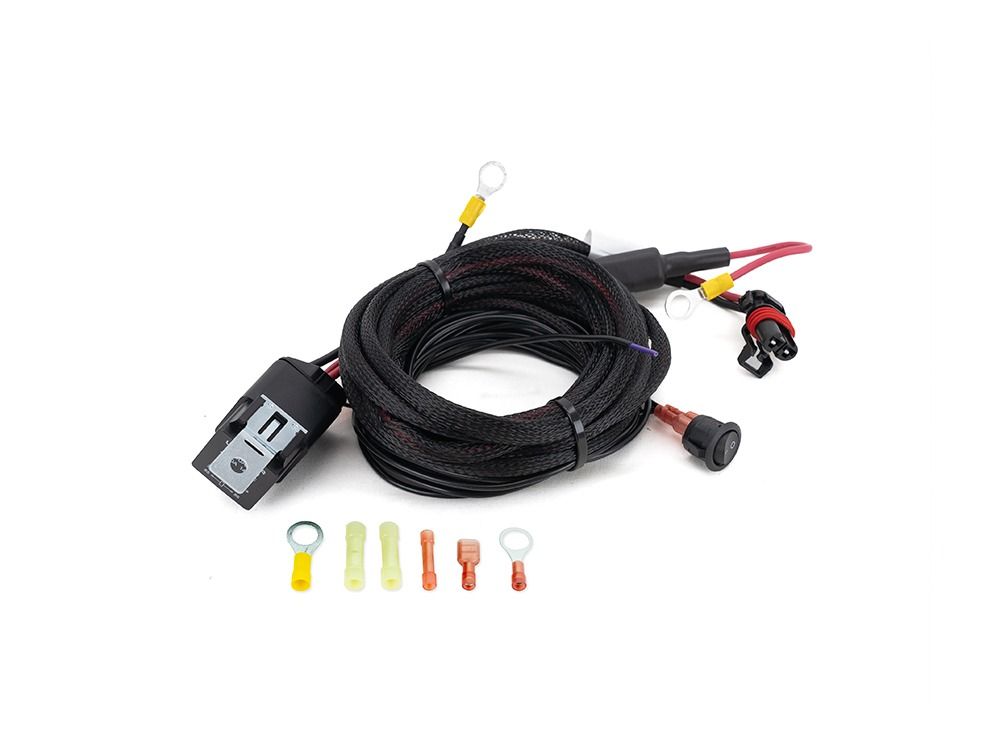

Supplied with One-Lamp Wiring Kit.

Momentary switch facilitates switching lighting modes.

Memory function recalls preferred lighting mode without needing to re-select each journey.

Includes ‘Centre Mount’ and Side Mounting Kit.

CAE optimised heatsink offers improved thermal dynamics.

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection.

Electronic thermal management system optimises light output to preserve longevity of the LEDs.

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight

5-year warranty

Designed & manufactured in the UK

Technical Specifications
1x TRIPLE-R 16 ELITE+

BOOST
MODE

COMBO
MODE

DUST/FOG/SNOW
MODE

LOW OUTPUT
MODE


LAMP PERFORMANCE
Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
Total Luminous Flux 18,040 Lm 30,640 Lm 12,600 Lm 3,608 Lm
Total Driver 'FOV' Flux † 11,004 Lm 18,690 Lm 7,686 Lm 2,200 Lm
LED Color (Temperature) White (5000K) White (5000K) & Yellow Yellow White (5000K)
Power Consumption 185 Watts 332 Watts 142 Watts 37 Watts
Peak Current Draw 17.3 Amps 29.2 Amps 12.9 Amps 3 Amps
Current Draw (14.4V) 12.9 Amps 22.3 Amps 9.6 Amps 2.4 Amps
Connector 2-Pin Aptiv / 3-Pin Superseal Connections
(Wiring harness included)

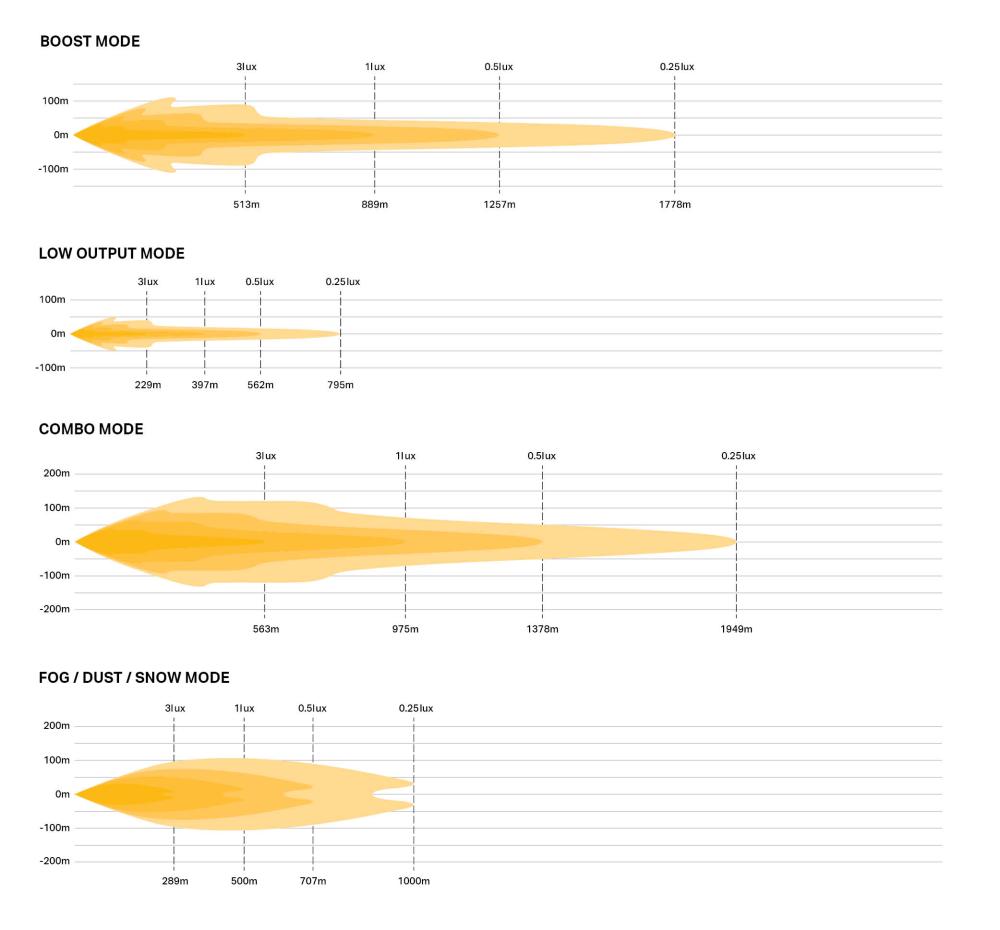

PHOTOMETRIC DATA

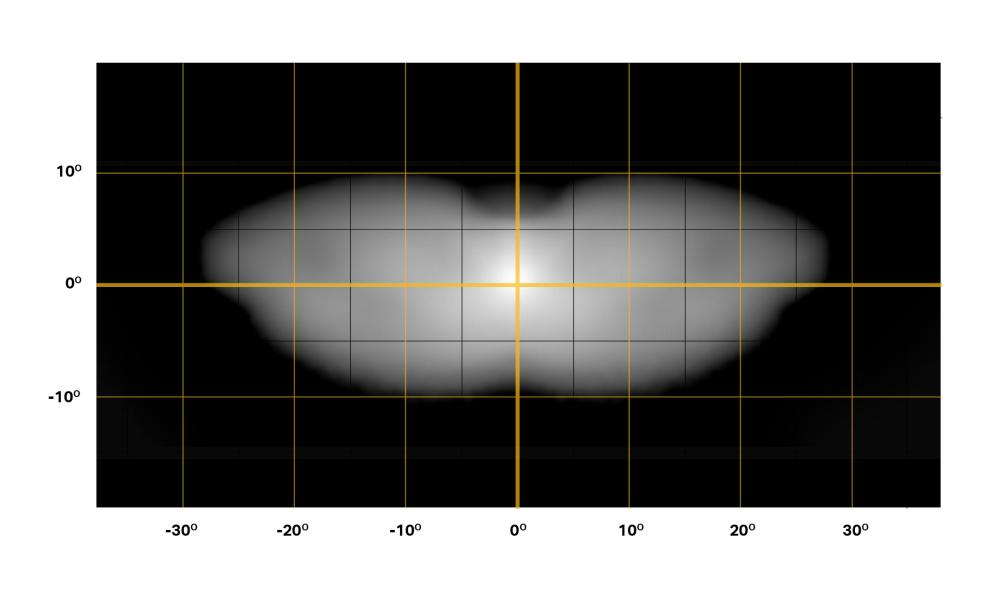

Horizontal / Vertical Beam Angle 54° / 15°
0.25 lx Line 1778m 1949m 1000m 795m
0.5 lx Line 1257m 1378m 707m 562m
1 lx Line 889m 975m 500m 391m
3 lx Line 513m 563m 289m 229m

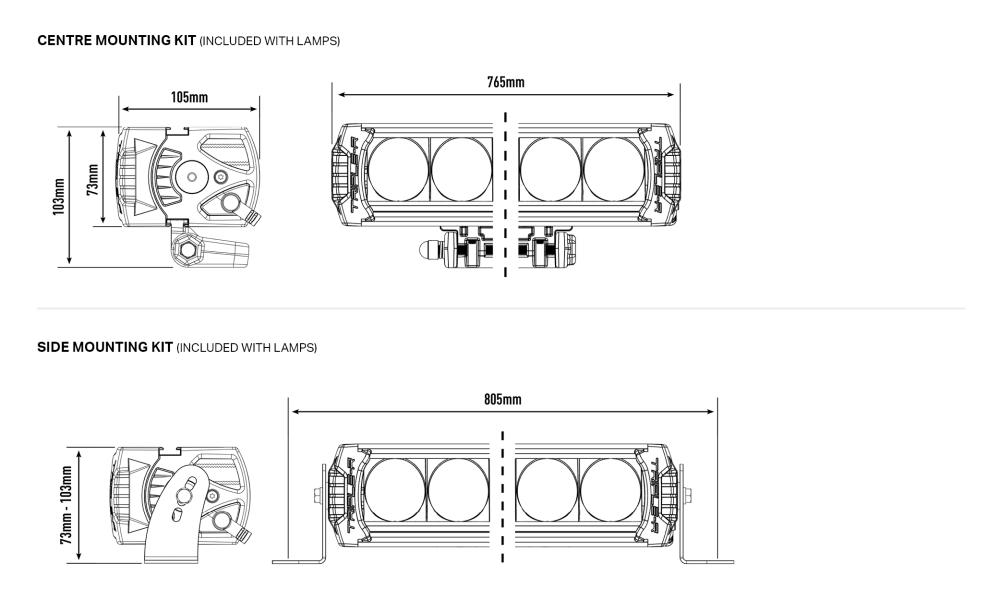

DIMENSIONS & WEIGHT
Weight 3.2kg
Width 765mm
Depth 105mm
Height 73mm

CERTIFICATION
IP Rating # IP68
EMC Certification ECE Reg 10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Triple-R 16 Elite+ LED Lightbar
  • x2 Centre Mount (1114K)
  • x1 Side Mount Kit (1118K)
  • x2 Wiring Kits (Aptiv & Superseal connections)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
Write Your Own Review
You're reviewing:Triple-R 16 Elite+
Your Rating

Triple-R 16 Elite+

Product Code
00R16-PLUS-B
£1,020.00
Find a
Stockist

Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.

The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and Low output mode (white only at reduced output). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the low output mode.

The imposing nature of the Triple-R 16 Elite+ is reflected in the lamp’s performance. Through advanced electronic design the light consists of a combination of white LEDs and yellow LEDs. With the light operating in Boost mode the white LEDs produces 18,040 raw lumen. Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 30,640 raw lumen representing incredible lighting performance for a safer, more enjoyable night driving experience. All LEDs operating in combination results in 332W power consumption and 22.3 Amps current draw (at 14V). To support operation of the lamp and electrical installation, the lamp features both a high power 2-pin Aptiv, and 3-pin Superseal connector. Additionally, included with each lamp are corresponding vehicle side wiring kits. The Aptiv connection is responsible for the high beam operation of the light, while the Superseal connections relate to the: function select, white and amber backlight selection.

Like all Lazer products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.
