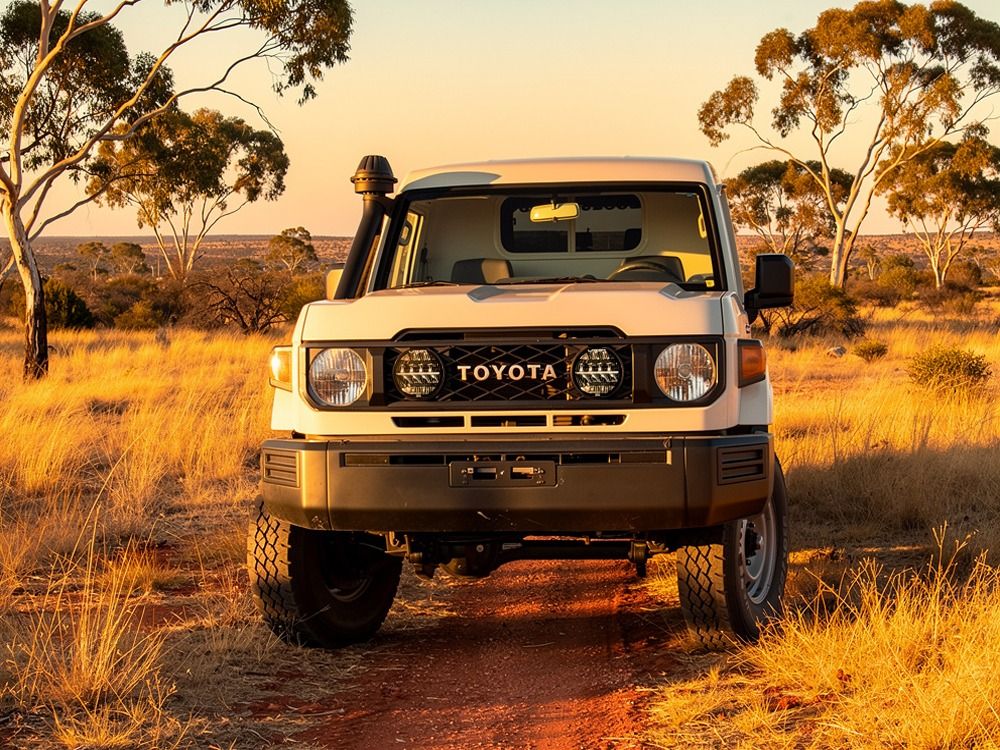

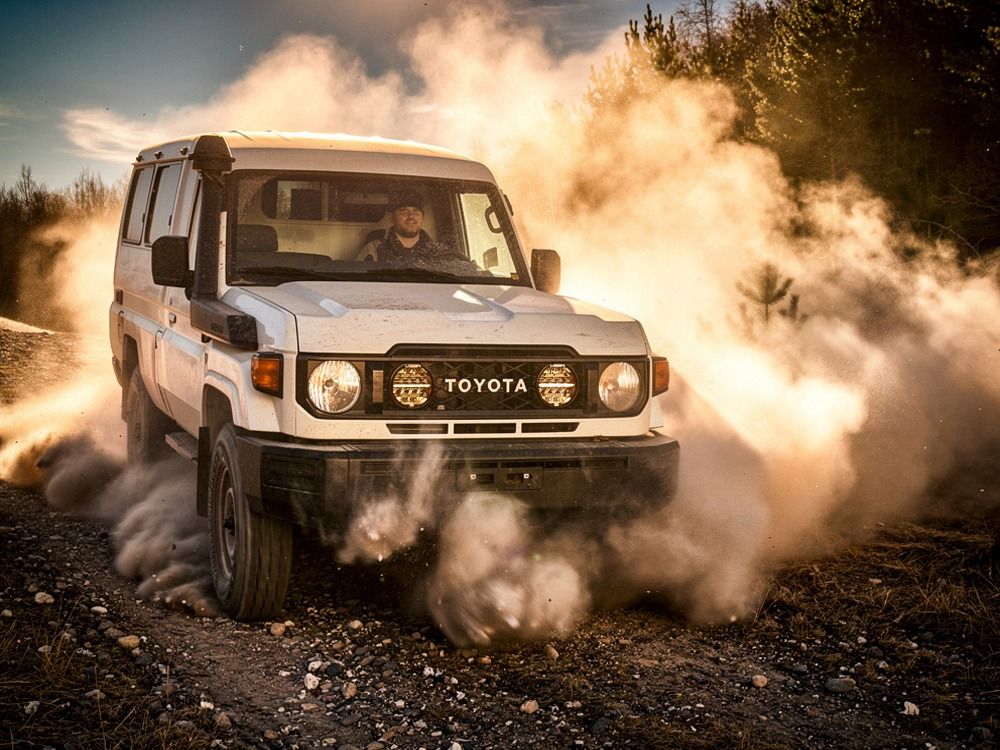

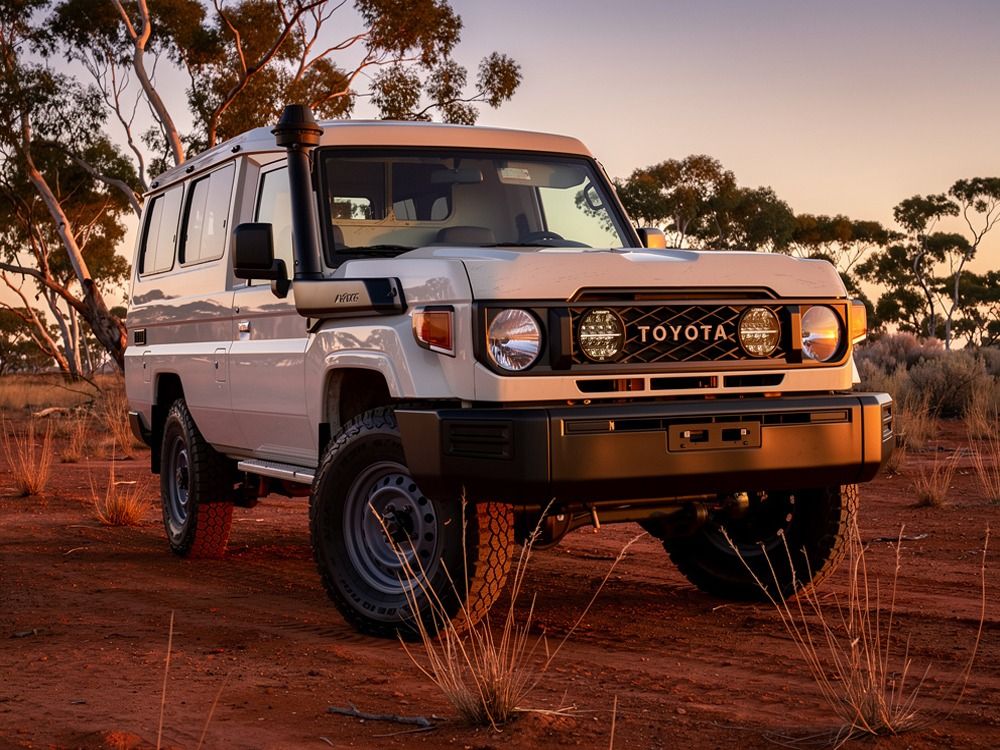

Upgrade the look and performance of your Toyota Land Cruiser 70 Series (2023+) with our custom-fit Grille Integration Kit, designed for a sleek, OE-style finish and powerful lighting performance.

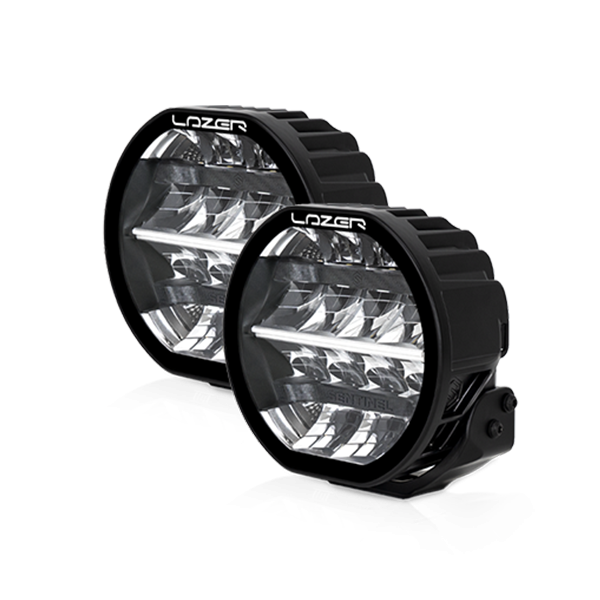

Each kit includes a pair of Sentinel 7” High Performance LED driving lights, available in four variants to suit different driving needs. Standard delivers Lazer's proven high-performance beam and is ECE approved for road use in low output mode; Elite PL2 adds our signature full-glow position light and welcome mode, and is ECE approved in low output mode via flash-to-dim; Elite+ is the all-round champion, combining the PL2 features with four lighting modes: High Output for maximum punch, an ECE-approved Low Output road mode, Fog/Dust/Snow for bad-weather vision, and Combo for white-plus-yellow clarity; and Elite Yellow PL2 is built for the trail, featuring the same full-glow position light and welcome mode with distinctive yellow LEDs for enhanced visibility in challenging conditions.

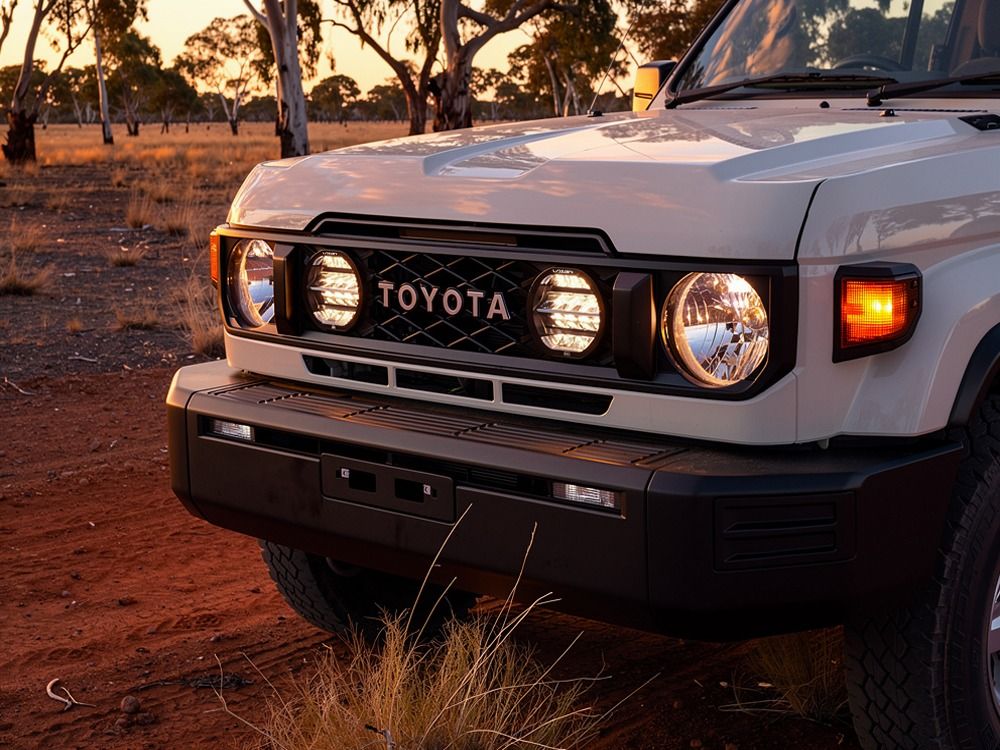

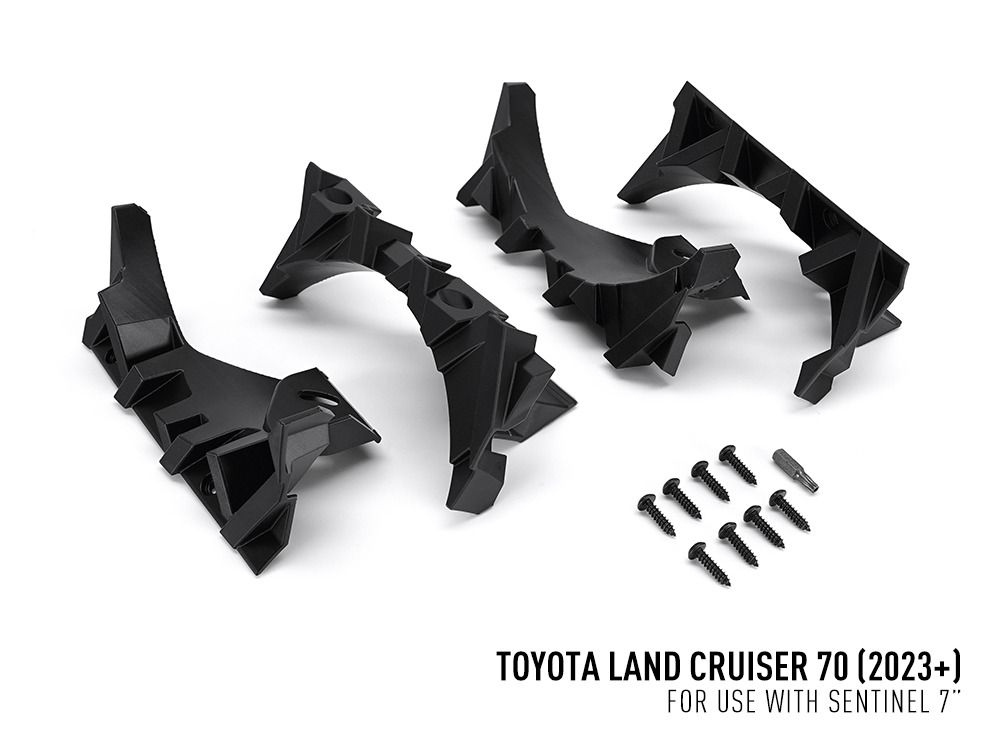

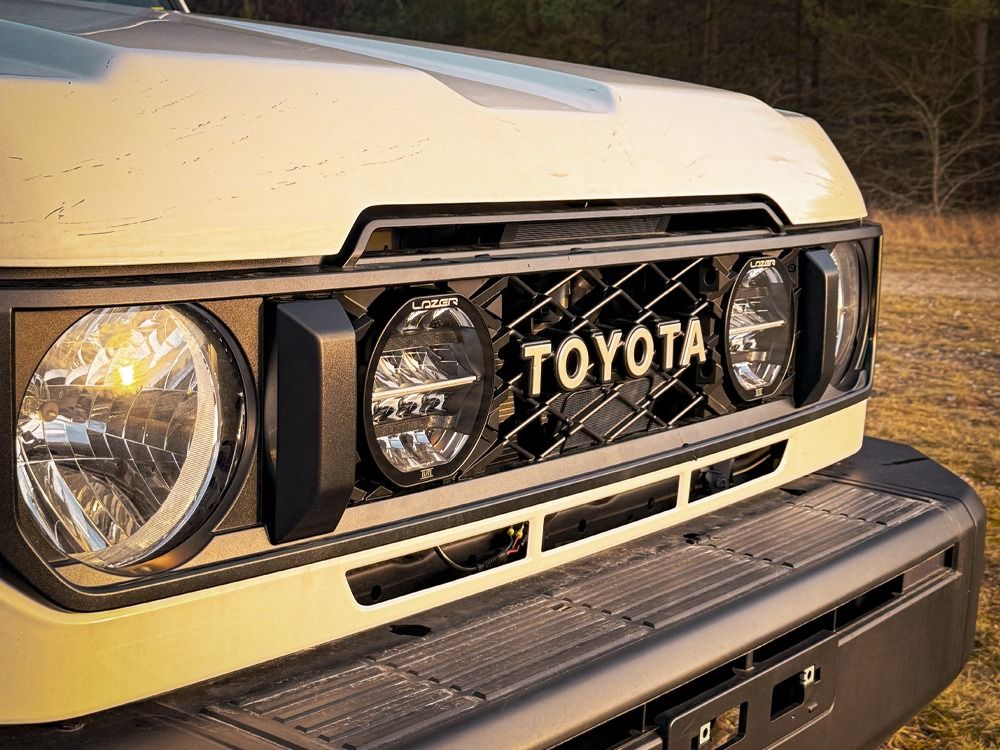

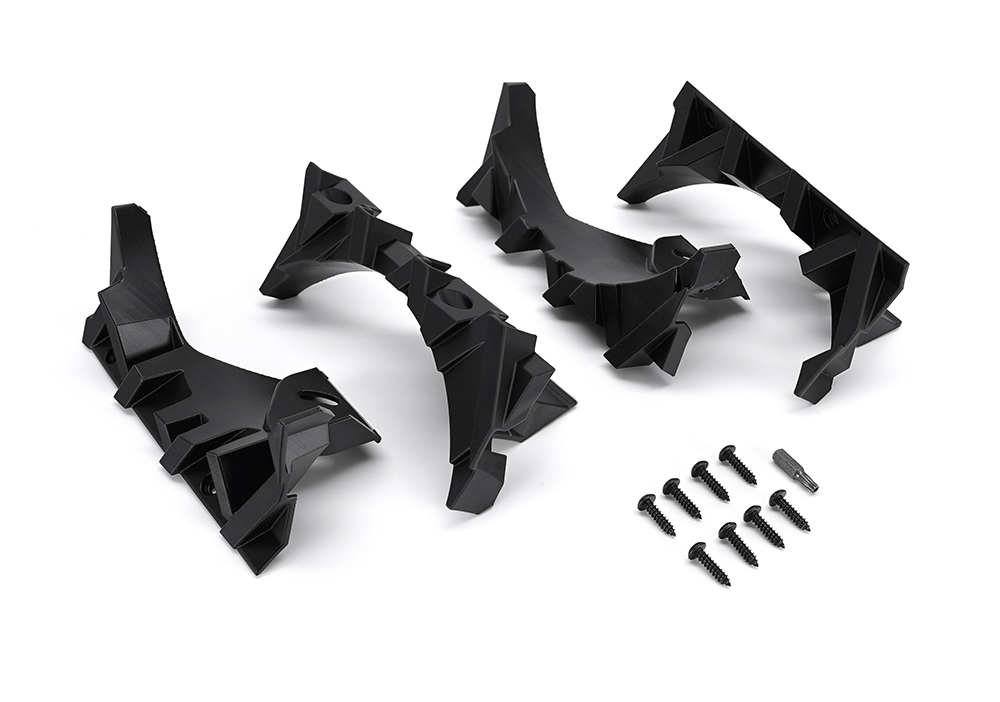

The lights are mounted using precision-engineered brackets that fit seamlessly into the LC70's standard centre grille. Precision engineered in-house in the UK from UV-stable, high-strength composite, the brackets are fully weather and chemical resistant, with a grained, colour-shift finish that perfectly complements the original grille texture. The kit also includes cutting guides, a wiring kit, and self-tapping screws for an easy, secure and long-lasting installation.
Please note: The Toyota Land Cruiser 70 Series (2023+) Grille Integration Kit is carefully engineered and optimised for use with Sentinel 7” High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps' branded products. Lens covers are not compatible with lights installed using this kit.
ECE R149 (Ref: 12.5 - per lamp) - in Low Output mode only.
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
60° / 12°
0.25 lux
1720m
0.5 lux
1217m
1 lux
860m
3 lux
497m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

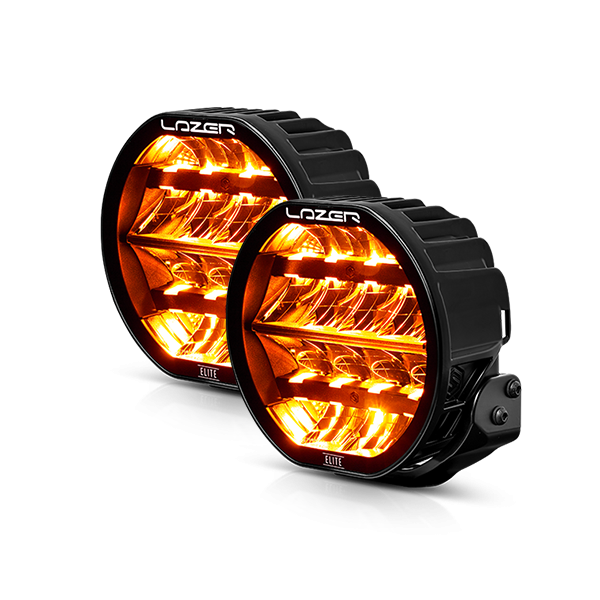

2x SENTINEL 7'' ELITE (PL2) (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
3 kg
HIGH BEAM FUNCTION
Total Luminous Flux
26,928 Lm
Total Driver 'FOV' Flux †
16,696 Lm
Colour Temperature
5000K
Power Consumption
240 Watts
Current Draw (14.4V)
16 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 12.5 - per lamp) - in Low Output mode only.
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
54° / 10°
0.25 lux
2039m
0.5 lux
1442m
1 lux
1019m
3 lux
588m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

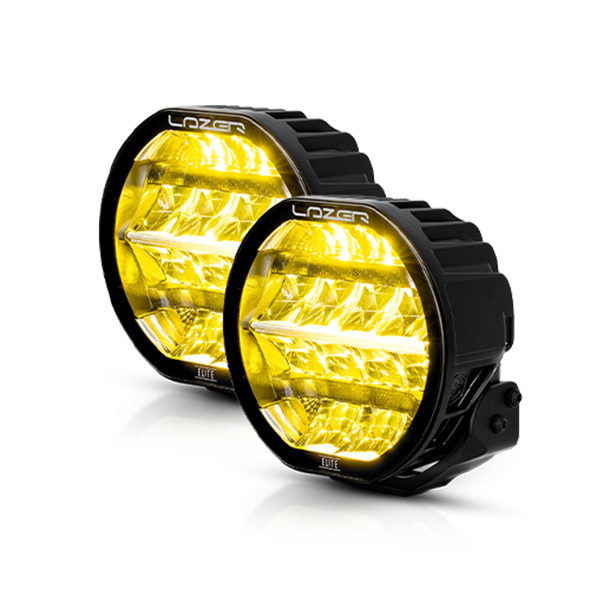

2x SENTINEL 7'' ELITE YELLOW (PL2) (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
3 kg
HIGH BEAM FUNCTION
Total Luminous Flux
19,200 Lm
Total Driver 'FOV' Flux †
11,136 Lm
Colour Temperature
Yellow
Power Consumption
220 Watts
Current Draw (14.4V)
16 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
N/A
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
65° / 18°
0.25 lux
1523m
0.5 lux
1077m
1 lux
762m
3 lux
440m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

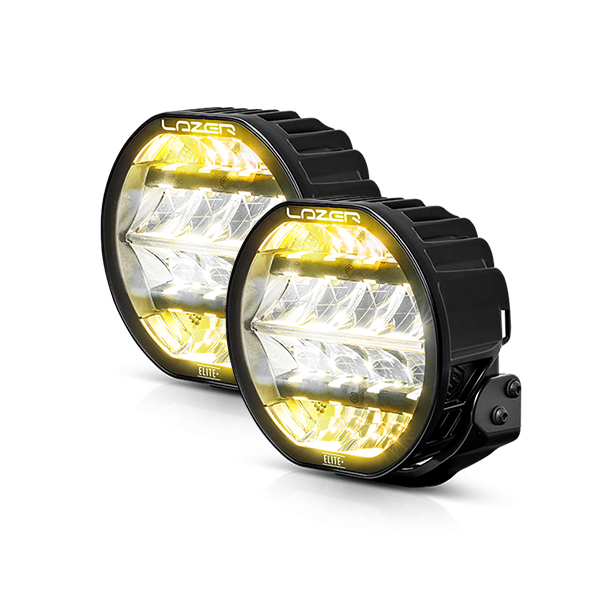

2x SENTINEL 7'' ELITE+ (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
3 kg
HIGH BEAM FUNCTION
Total Luminous Flux
22,428 Lm
Total Driver 'FOV' Flux †
12,784 Lm
Colour Temperature
5000K
Power Consumption
404 Watts
Current Draw (14.4V)
16.2 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Class RA) - Ref: 7.5 per lamp (in Low Output mode only)
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
50° / 12°
0.25 lux
1899m
0.5 lux
1343m
1 lux
950m
3 lux
548m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
Made in the UK
