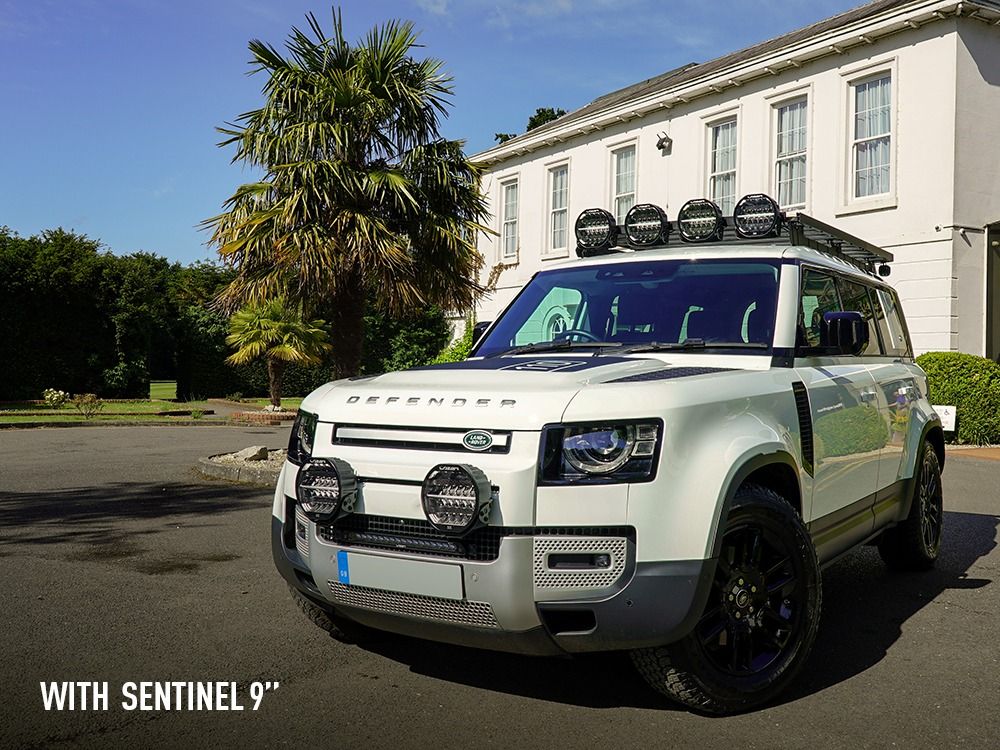

Utilising satin black mounting brackets concealed behind the bumper surround, the Lazer Lamps vehicle integration kit for the Land Rover Defender (2020+) allows for mounting a pair of our class-leading Sentinel LED driving lights, for an auxiliary LED driving light installation that impresses day and night. Included with the kit are stabilising bars to ensure each lamp is fully robust and secure without any adverse vibrations.
The mounting brackets are made from 3mm folded A2 stainless stell, that benefit from an e-coat finish complete with satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners and rivets. The resulting setup is secure and robust, aided by the supplied stay bar kits. Like all lighting products from Lazer Lamps, the lights are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5-year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.
Where the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface. For advice on how to check for a 12V high beam signal, please click here.
Please note (Sentinel 9’’ only): This mounting kit is not compatible with Sentinel 9’’ ‘Wide’ Mount, please ensure the lamp is mounted using the Sentinel 9’’ ‘Slim’ mount (included with all Sentinel 9’’ lamps).
ECE R149 (Ref: 12.5 - per lamp) - in Low Output mode only.
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
60° / 12°
0.25 lux
1720m
0.5 lux
1217m
1 lux
860m
3 lux
497m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x SENTINEL 7'' ELITE (PL2) (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.5 kg (per lamp)
HIGH BEAM FUNCTION
Total Luminous Flux
26,928 Lm
Total Driver 'FOV' Flux †
16,696 Lm
Colour Temperature
5000K
Power Consumption
240 Watts
Current Draw (14.4V)
16 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 12.5 - per lamp) - in Low Output mode only.
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
54° / 10°
0.25 lux
2039m
0.5 lux
1442m
1 lux
1019m
3 lux
588m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x SENTINEL 7'' ELITE+ (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.5 kg (per lamp)
HIGH BEAM FUNCTION
Total Luminous Flux
22,428 Lm
Total Driver 'FOV' Flux †
12,784 Lm
Colour Temperature
5000K
Power Consumption
404 Watts
Current Draw (14.4V)
16.2 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Class RA) - Ref: 7.5 per lamp (in Low Output mode only)
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
50° / 12°
0.25 lux
1899m
0.5 lux
1343m
1 lux
950m
3 lux
548m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x SENTINEL 9'' HIGHLINE (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
2.5 kg (per lamp)
HIGH BEAM FUNCTION
Total Luminous Flux
34,040 Lm
Total Driver 'FOV' Flux †
19,504 Lm
Colour Temperature
5000K
Power Consumption
260 Watts
Current Draw (14.4V)
18.6 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Ref: 12.5 per lamp) Only approved in low output mode.
Position Light
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
52° / 18°
0.25 lux
1649m
0.5 lux
1166m
1 lux
825m
3 lux
476m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x SENTINEL 9'' ELITE (PL2) (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
2.5 kg (per lamp)
HIGH BEAM FUNCTION
Total Luminous Flux
30,464 Lm
Total Driver 'FOV' Flux †
18,096 Lm
Colour Temperature
5000K
Power Consumption
290 Watts
Current Draw (14.4V)
20.2 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Ref: 20 - in Low Output Mode only)
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
52° / 14°
0.25 lux
2098m
0.5 lux
1483m
1 lux
1049m
3 lux
606m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x SENTINEL 9'' ELITE+ (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
2.5 kg (per lamp)
HIGH BEAM FUNCTION
Total Luminous Flux
44,420 Lm
Total Driver 'FOV' Flux †
26,118 Lm
Colour Temperature
5000K
Power Consumption
420 Watts
Current Draw (14.4V)
33.6 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Class RA) - Ref: 5 per lamp (in Transition Assist mode only)
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
50° / 10°
0.25 lux
2786m
0.5 lux
1970m
1 lux
1393m
3 lux
805m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
Made in the UK
