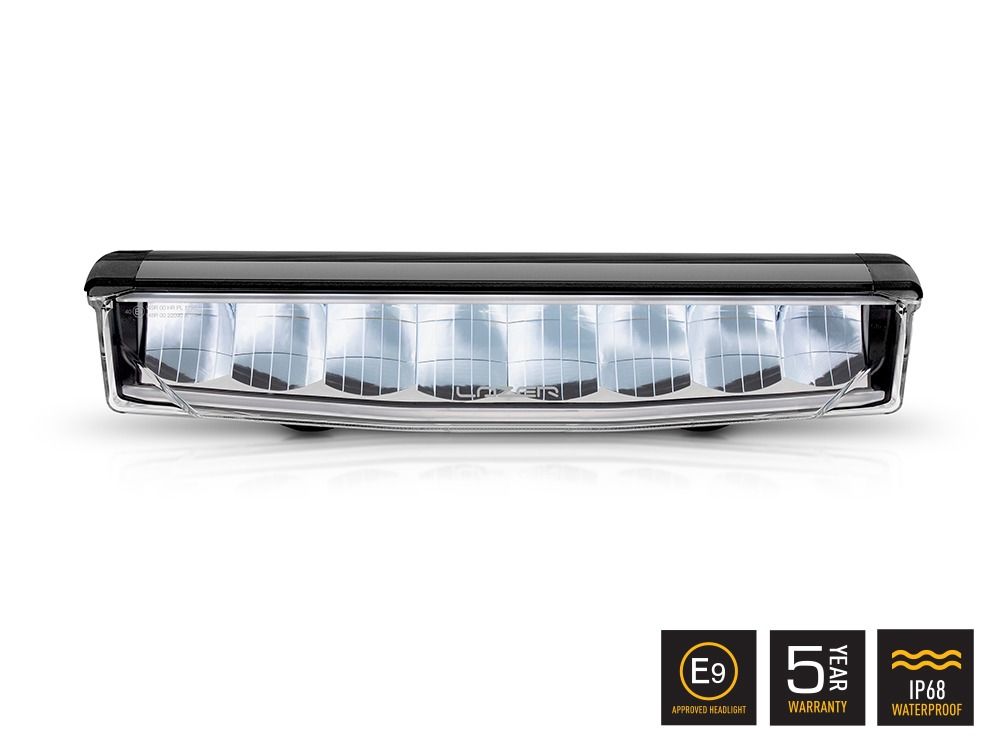

Air-55 (with Red Position Light)

Patent-pending injection moulded monocoque lens with texture effect to the underside.

Integrated white position light (UNECE R148 approved).

Additional integrated red colour position light.

Adoption of the latest high-efficiency premium-bin LEDs.

Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road.

Patent-pending lamp design.

ECE approved (Reg 149 – Driving Light) for on-road high beam.

Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.

Threaded mounting locations to enable side mounting (brackets sold separately).

CAE optimised heatsink offers improved thermal dynamics.

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection.

Electronic thermal management.

‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee.

20cm lamp cable complete with male/female 3-pin Superseal connectors.

IP68 watertight.

5-year warranty.

Vehicle wiring kits available.

Designed & manufactured in the UK.

Technical Specifications
1x AIR-55

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1.65 kg

HIGH BEAM FUNCTION
Total Luminous Flux 6,800 Lm
Total Driver 'FOV' Flux † 4,488 Lm
Colour Temperature 5000K
Position Light Colour White & Red
Power Consumption 55 Watts
Peak Current Draw 6.1 Amps
Current Draw (14.4V) 4 Amps
Connector 3-Pin Superseal (+25cm Cable)

DIMENSIONS
Width 411 mm
Depth 106 mm
Height 82 mm

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R149 - Ref: 40
Position Light (white only) ECE R148
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 34° / 13°
0.25 lx Line 800m
0.5 lx Line 566m
1 lx Line 400m
3 lx Line 231m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 AIR-55 (with Red Position Light) LED Lamp
  • x2 Centre Mounting Kit (1151K)
  • Installation Instructions
Videos
Write Your Own Review
You're reviewing:Air-55 (with Red Position Light)
Your Rating

Air-55 (with Red Position Light)

Product Code
0A55-RED-B
£318.00

Note: In the UK, the AIR-55 with Red, Blue, or Green Position Light is available exclusively from Kelsa Truck Products. Please contact Kelsa directly to order.


When your truck is your livelihood and it represents you and your business, it deserves the best. Introducing AIR, Lazer Lamps’ latest LED light bar range, specially designed and engineered with the heavy truck and commercial vehicle market in mind. Designed, engineered, and manufactured in-house in the UK, every detail of the AIR-55 has been carefully considered to deliver a high-performance LED solution with striking product design, elevated by a monocoque lens construction and signature position light feature. New additions with coloured position lights are now available, with integrated Red, Green, or Blue options alongside the UNECE R148 approved white position light. The AIR-55 offers even greater flexibility for custom styling while maintaining the lighting performance and build quality you expect from Lazer.

The AIR-55 represents exceptional value for money with the product design and styling carried over from the higher power AIR-90, and with the robustness and reliability assured backed up by our comprehensive 5-year warranty. Emitting 6,800 raw lumen, and with 1 lux delivered to 400m, the AIR-55 is a very capable LED light bar at a competitive price point. Furthermore the light distribution has been carefully engineered with the vertical and horizontal spread optimised for road use including from higher vehicle mounting positions. The high beam performance of the light sits within the UNECE Reg 149 parameters for a road-legal driving light.

Aside from the enviable levels of high beam illumination provided, the AIR products all feature an integrated ‘twin’ white or Red position light. Aside from the safety benefits, utilising the latest technologies and materials has created a distinctive signature appearance viewed from near or afar. When operating the white position light this is approved to the UNECE Reg148 standard for on-road use.

The styling and build quality of the AIR products is amplified by its injection moulded monocoque polycarbonate lens. Boasting a lifetime guarantee on the ‘unbreakable’ lens, finished with hardcoat lacquer (an example of one of the upstream manufacturing process Lazer also manages in-house), the lens flows down and under the lamp, with a textured appearance to the underside. The unique lamp design is enhanced thanks to the supplied innovative ‘Centre Mount’ system which permits the light to sit much lower relative to the mounting point for a clean sleek installation.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.
