Carbon-6 (Gen3)

Product Code
#00C6-G3

From £75.60

To £1,176.00

Carbon-6 (Gen3)

In stock

£75.60

Find a
Stockist

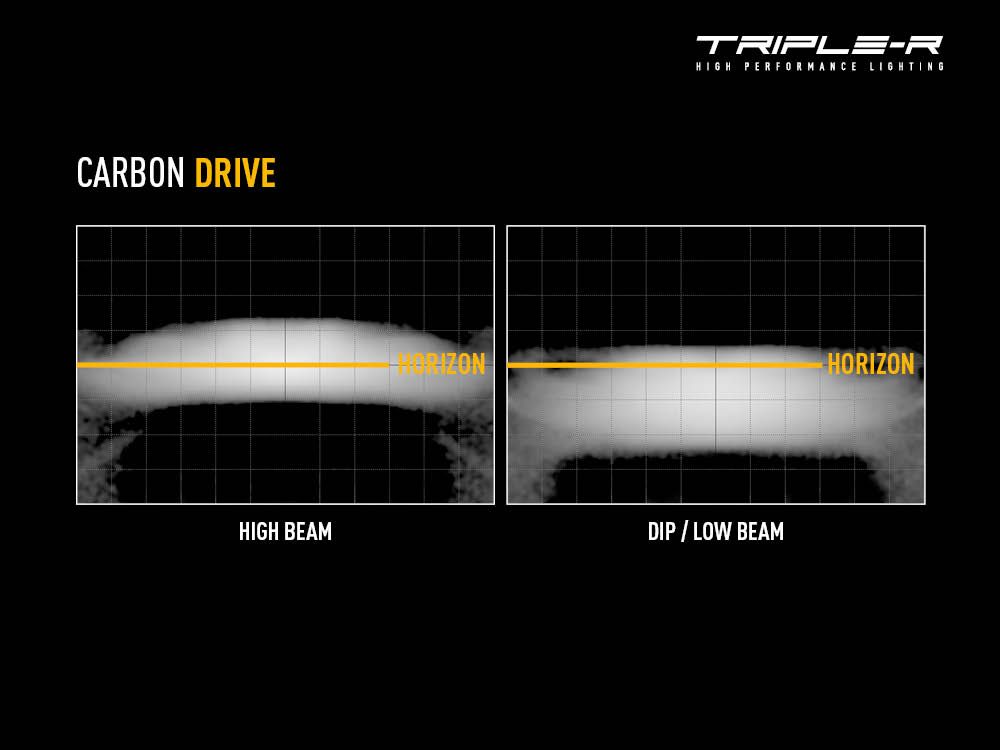

The 3rd generation of Carbon-6 LED driving lights represent years of continued development and testing at the very highest levels of professional rally and track motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, compared to previous iterations. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in four modes:

  • FULL BEAM (100% output, ‘high beam’ pattern
  • FOG BEAM (100% output ‘fog beam’ pattern)
  • E-MARK MODE (25% output, ‘high beam’ pattern)
  • RAIN MODE (25% output, ‘fog beam’ pattern)

Additional lighting modes are also possible for race teams who want maximum flexibility, by application of a PWM signal from the vehicle.

Advances in electronic design and component technologies, has allowed us to increase the light output through placing additional LEDs on each lamp’s circuit board. Product-specific ultra-reflective vacuum-metallised optics harness the maximum light output for the road and track ahead. Used in combination, the SPOT and DRIVE lamps deliver the perfect balance of distance and spread illumination in perfect uniformity.

The lamp housing is constructed from high-strength and heat-resistant PC-ABS material. Thermal control of the lamp is managed through a CAE-optimised anodised aluminium element, meticulously engineered to maintain full and optimal lighting performance of the LEDs. The result are products weighing just 400g each. Dynamic drive modulation within the lamps, prevents damage to the electronic components in more extreme environmental and thermal conditions.

The Carbon-6 lamps have been designed alongside a range of carbon-fibre rally pods, compatible across a wide range of vehicle makes and models, as well as universal-fit bonnet-mounting solutions for 2 or 3 lamp setups. Pod adjustment and fine-tuning elements, alongside compatible lens cover options (supplied with each light), ensures an overall superior motorsport lighting solution.

What's included:
- x1 Carbon-6 LED Lamp
- x1 Amber Lens Cover
- x1 Black Lens Cover
- x1 Installation Instructions



Carbon-6 Gen 3 lights are not compatible with the Fiesta R2, unless purchased through M-Sport directly. There are compatibility issues with different iterations of their PDU, and so to ensure you have a product match, please coordinate your purchase through their after-sales support team, at Dovenby Hall, UK. M-Sport have also developed a wiring harness which ensures an easy integration to their vehicle, which isn’t available from Lazer Lamps directly.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Carbon-6 (Gen3)

Ultra-lightweight, PC-ABS material housing

Combination of high intensity ‘matrix’ LEDs

Available with Spot or Drive optics

Full-beam mode can be limited to operate with UNECE E-mark regulation limits

Secondary ‘Fog’ beam mode

Additional lighting modes possible with variable PWM input signals

Carefully selected 5000K colour temperature maximises sharpness and definition

Included quick fit and release lens covers – Amber and Black

CAE-optimised heatsink requires minimal airflow to maintain 100% light output

Dynamic drive modulation preserves electronic components in adverse conditions

Low profile, edge-to-edge design for improved aerodynamic performance

Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)

Vehicle side connector, plus 300mm cable length supplied with each lamp.

Compatible 2-lamp and 4-lamp wiring looms available

Rally mounting solutions available including carbon-fibre rally pods

Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)

‘Unbreakable’ polycarbonate lens

IP67 watertight

5-year warranty

Designed & manufactured in Britain

Technical Specifications
  SPOT DRIVE
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 450 gr 450 gr
HIGH BEAM FUNCTION
Total Luminous Flux 9360 Lm 9360 Lm
Total Driver 'FOV' Flux † 6550 Lm 6540 Lm
Colour Temperature 5000K 5000K
Number of High Output LEDs 6 6
Power Consumption 85W 85W
Peak Current Draw (at 10V) 8.5A  8.5A
Current Draw (at 14.4V) 5.9A 5.9A
Start-up Time * 5ms 5ms
DIMENSIONS
Width 315 mm 315 mm
Depth 82 mm 82 mm
Height 70 mm 70 mm
PHOTOMETRIC DATA

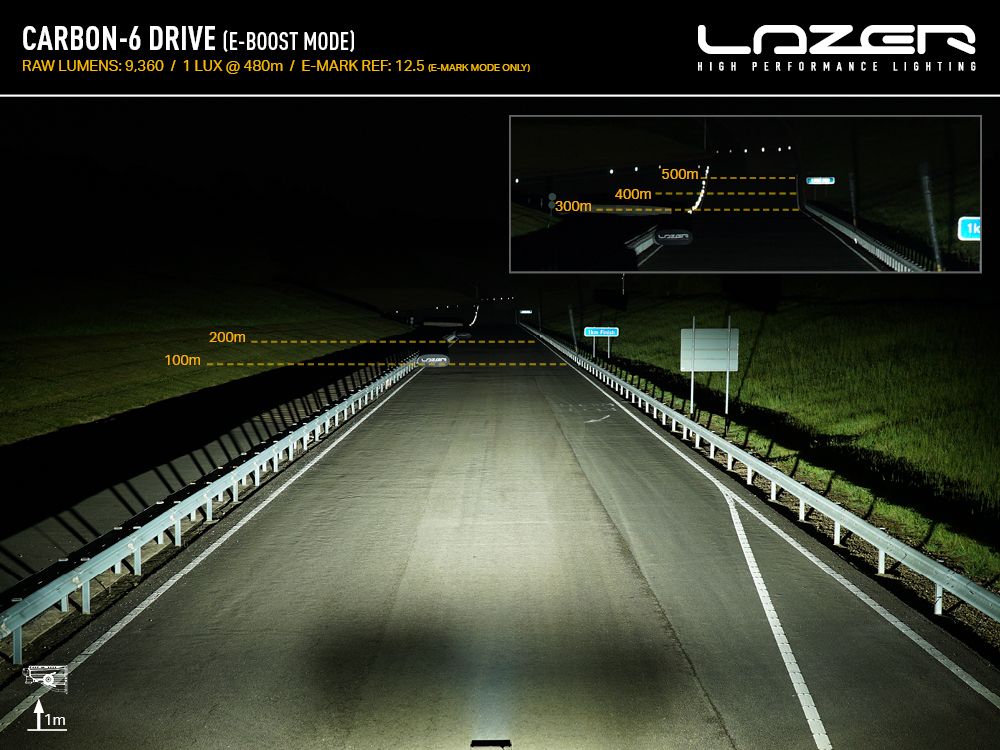

Horizontal Beam Angle 32 Degrees 60 Degrees
0.25 lx Line 1670 metres 998 metres
0.5 lx Line 1180 metres 707 metres
1 lx Line 834 metres 500 metres
3 lx Line 480 metres 288 metres

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
