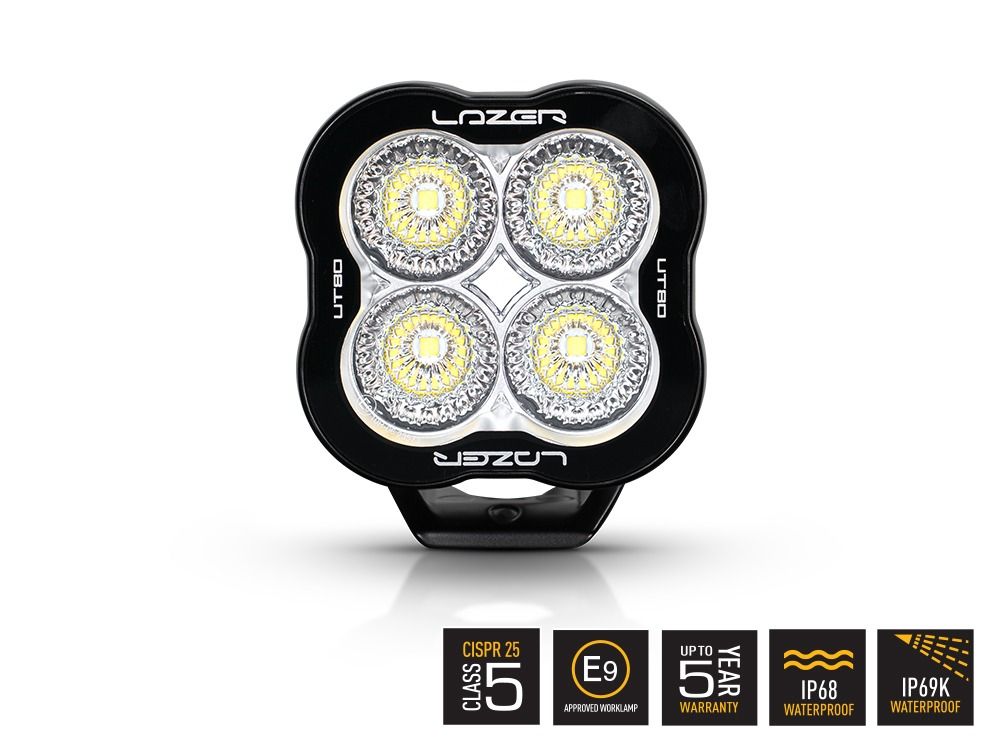

Utility-80 HD
Utility-80 HD Utility-80 HD Utility-80 HD Utility-80 Heavy Duty - annotated diagram showing the lamp features Technical drawing of the lamp showing precise measurements of height, width, depth, and mounting hole positions. Photometric chart displaying the light intensity distribution of the lamp in candela, with beam angles and lux levels at various distances. Photometric chart displaying the light intensity distribution of the lamp in candela, with beam angles and lux levels at various distances. Photometric chart displaying the light intensity distribution of the lamp in candela, with beam angles and lux levels at various distances. Diagram illustrating the lamp's beam pattern, showing light coverage and shape across a flat surface. Photo showing the lamp installed in a typical setting, demonstrating its placement, angle, and lighting effect in real-world use. Photo showing the lamp installed in a typical setting, demonstrating its placement, angle, and lighting effect in real-world use. Photo showing the lamp installed in a typical setting, demonstrating its placement, angle, and lighting effect in real-world use.

Utility-80 HD

Product Code
#00U80-HD

From £222.00

To £327.60

1. Utility-80 HD (Heavy Duty) *
Utility-80 HD

In stock

Find a Stockist

£222.00

PAYMENT & DELIVERY
Orders will be shipped within 1 working day (stock permitting). UK customers will be given the option for Standard or Express delivery service. International orders will dispatch via Express Courier Service, on a DAP (Delivered At Place) basis, meaning you will be liable for country specific VAT and import dutiesMore Information.

A new addition to the Utility Series product range in 2023, the Utility-80 HD (Heavy-Duty) builds on our reputation for high performance LED work light solutions. The product is specifically designed and engineered for the rigorous demands of industrial applications including: mining, construction, forestry, and agriculture.

Comprising 4x premium-bin 20W LEDs, the Utility-80 HD emits 8,940 raw lumens harnessed through the ultra-reflective, vacuum-metallised optics redesigned for this product to give even better distribution of light over a greater area. For customers looking for flexibility and easy control over the intensity of light, a version of the product with a variable brightness function is available, providing the machine operator the option to increase or decrease the lamps brightness at the touch of a button.

The colour of light for both variants of 80 HD is set at 5000K, carefully selected to improve safety through maximising definition of objects and hazards ahead, while reducing fatigue that can come from using products with a higher colour temperature.

Lighting performance aside, what truly sets the lamps apart is the robust construction and build quality. Like all Lazer products, the light benefits from an electronic thermal management system, CAE optimised heatsink, polycarbonate lens with hardcoat, and advanced electronic design. An upgraded die-cast mounting bracket, repositioned and concealed goretex breather membrane, plus re-engineered LED/optical arrangement only serves to increase the product’s robustness and suitability to the harshest environments. Testimony to the products build quality, the lamp comes with a 5 year functional warranty (5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies).

ECE approved work light

Utilising 4 high-density 20W LEDs

Variable brightness option available

CAE optimised cooling system with Electronic Thermal Management

5000k colour temperature

Vacuum-metallised optics for superior light utilisation

Die-cast, heavy-duty mounting bracket made from 7mm stainless steel

‘Unbreakable’ polycarbonate lens with hardcoat

Automotive grade corrosion resistance

Provides full EMC protection in accordance with CISPR 25 Class 5 standards; the variable version is currently certified to Class 3. †

IP68 / IP69k approved

Over voltage protected

Reverse polarity protected

Includes male/female Deutsch connectors

Comprehensive range of lens covers available

5 year warranty *

Made in the UK



* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

† - CISPR-25 applies to 12V usage only unless specified.

1x Utility-80 HD LED Work Light


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1.1 kg

HIGH BEAM FUNCTION
Total Luminous Flux 8,940 Lm
Effective Lumens † 7,420 Lm
Colour Temperature 5000K
Power Consumption 80 Watts
Current Draw (14.4V) 5.6 Amps
Connector 2-Pin/4-Pin Deutsch DT (+28cm Cable)

DIMENSIONS
Width 108 mm
Depth 107 mm
Height 108 mm

CERTIFICATION
IP Rating # IP68 / IP69K
EMC Certification ECE R10
EMC Protection CISPR-25 - Class 5 (Variable version currently Class 3)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

OPERATING CONDITIONS
Operating Temperature -40oC … +90oC
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 80° / 80°
1 Lux 96m
5 Lux 43m
20 Lux 21m
50 Lux * 14m




† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

  • 1x Utility-80 HD Work Lamp
  • 1x Lamp Mount (supplied attached to lamp)
