Toyota RAV4 Hybrid (2019+) Grille Kit

Rating:
100%
Product Code
GK-RAV4-01K/GK-RAV4-ELITE-01K/GK-RAV4-ILBA-01K

From £108.00

To £1,080.00

Toyota RAV4 Hybrid (2019+) Grille Kit

In stock

£108.00

Find a
Stockist

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

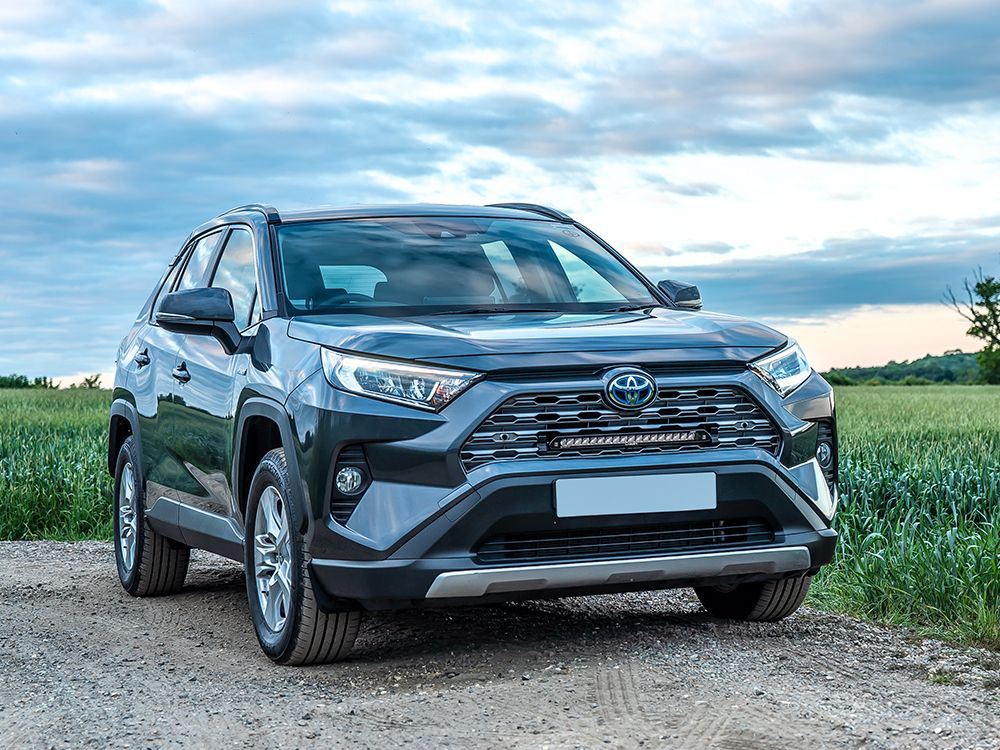

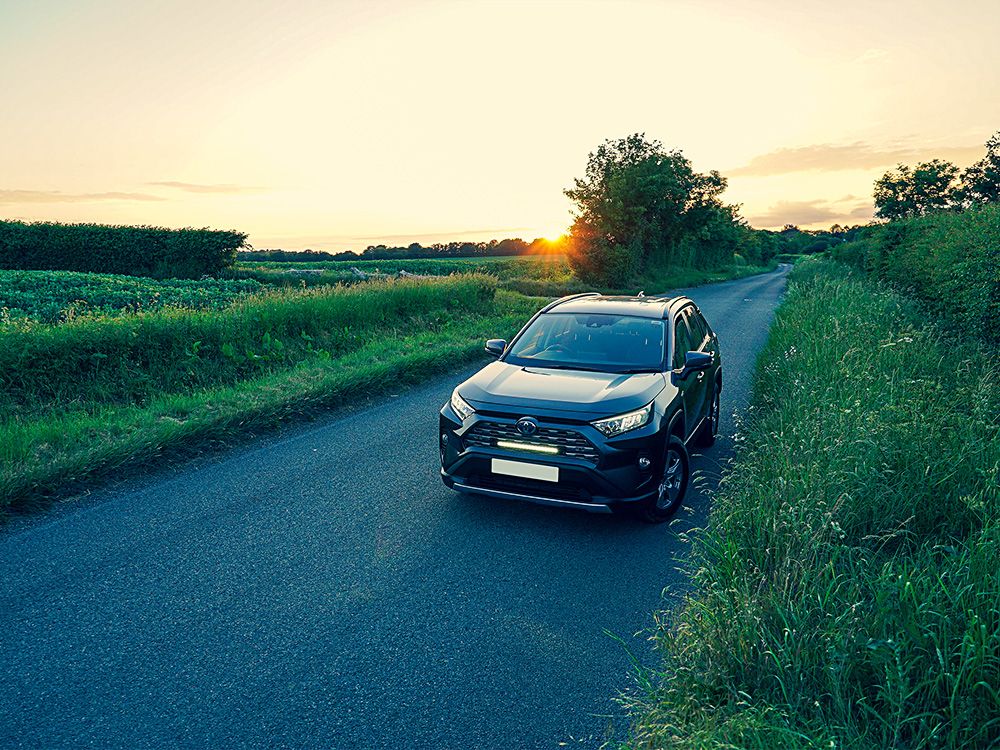

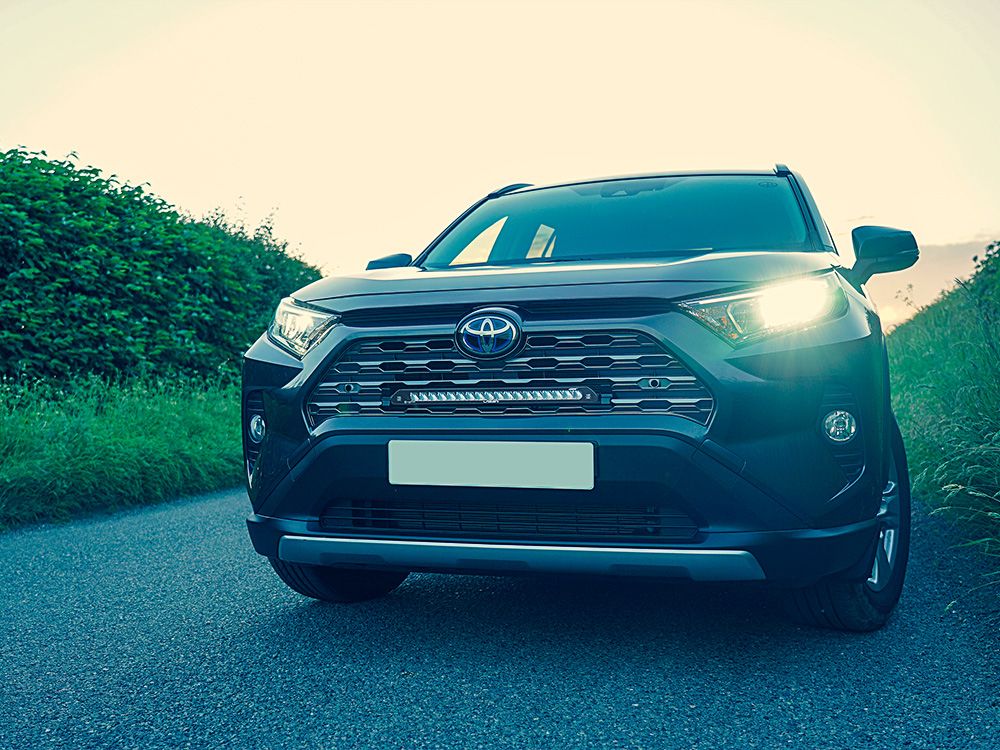

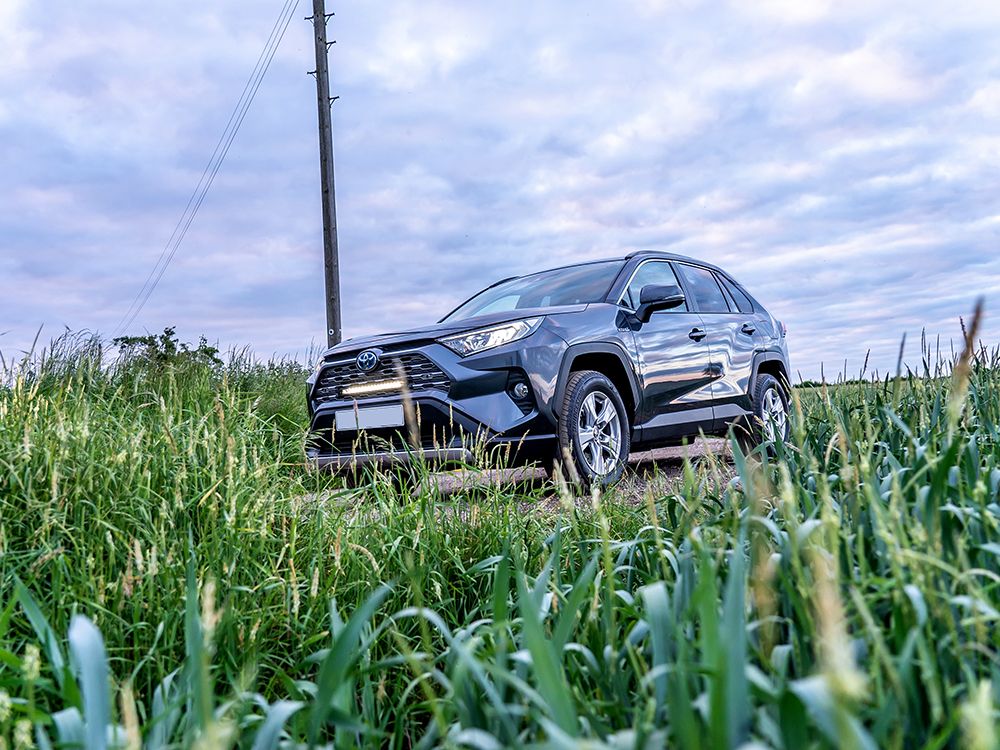

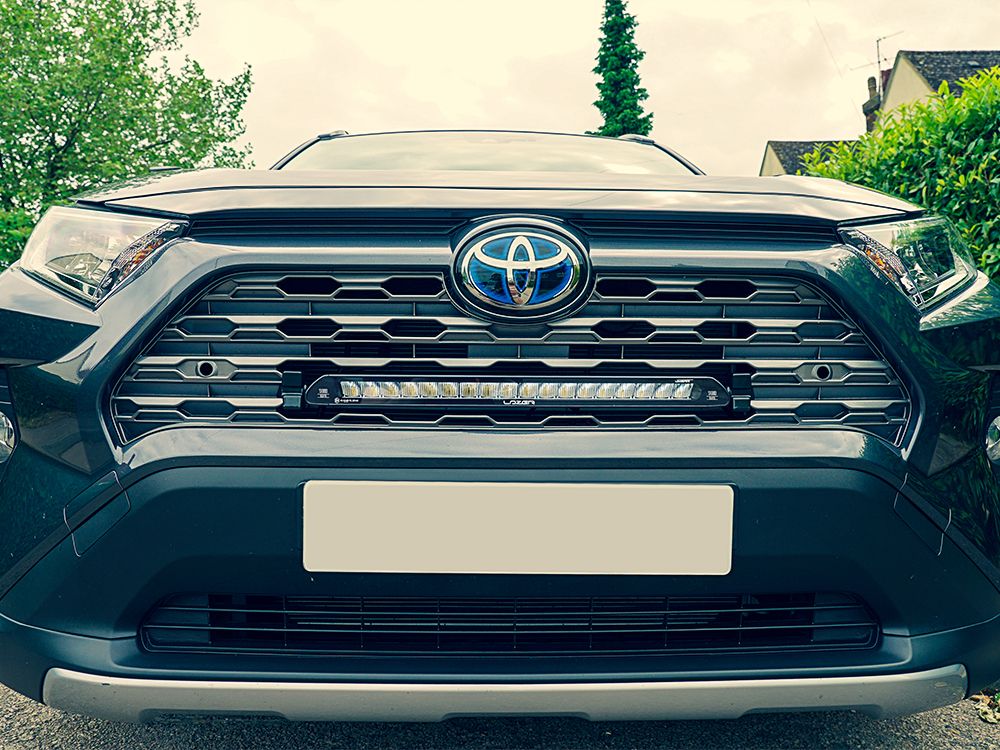

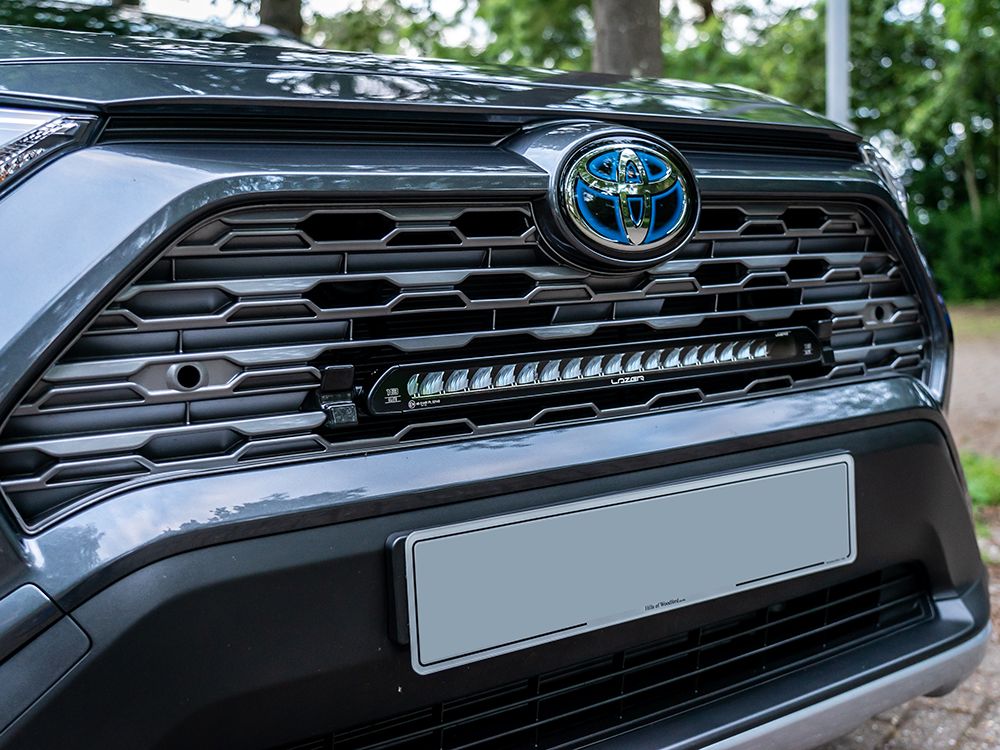

The Toyota RAV4 Hybrid, for vehicles produced since 2019, includes a Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA grade) High Performance LED lightbar, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

The Toyota RAV4 Hybrid Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED lightbar. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.



PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Toyota RAV4 Hybrid (2019+) Grille Kit

Bespoke vehicle integration kit for Lazer LED lightbar installation

Custom fit for Toyota RAV4 Hybrid (2019+)

Available with: Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) LED lightbar

Kit also includes bespoke mounting brackets and wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications



  1x Linear-18  1x Linear-18
Elite
1x Linear-18 Elite+
(E-Boost Mode)
1x Linear-18 Elite i-LBA
(E-Boost Mode)
Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Weight 1090 gr 1090 gr 1090 gr 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 6,750 Lm 13,500 Lm 14850 Lm 18,000 Lm
Total Driver 'FOV' Flux † 4,806 Lm 9,612 Lm 10573 Lm 12,816 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Number of High Output LEDs 18 36 36 48
Power Consumption 63 Watts 130 Watts 134 Watts 135 Watts
Current Draw (at 14.4V) 4.4 Amps 9 Amps 9.9 Amps 15 Amps
CERTIFICATION
High Beam ECE R112 ECE R112 ECE R149 ECE R112
ECE Reference 30 2x25
(2x 10 - With
E-Mark Cap)
N/A
(27.5 - E-Mark Mode)
N/A
(17.5 - E-Mark Mode)
PHOTOMETRIC DATA
Horizontal Beam Angle 56° 64° 84o 60°
0.25 lx Line 855m 1023m  1152m  1043m
0.5 lx Line 605m 723m  815m  738m
1 lx Line 428m 511m 576m 522m
3 lx Line 247m 295m 333m 301m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 1x Linear-18 LED Lamp
  • 1x One-Lamp Wiring Kit
  • Installation Instructions
