RAM 1500 DS Series - Classic (2013+) Grille Kit

Rating:
80%
Product Code
GK-R1500-01K/GK-R1500-ELITE-01K

From £582.00

To £732.00

RAM 1500 DS Series - Classic (2013+) Grille Kit

In stock

£582.00

Find a
Stockist

For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.

The RAM 1500 DS Series with Classic Trim kit, designed and engineered for model year 2013+ vehicles, features a pair of Triple-R 750 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

The RAM 1500 DS Series - Classic (2013+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.



PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

RAM 1500 DS Series - Classic (2013+) Grille Kit

Bespoke vehicle integration kit for Lazer LED Driving Light installation

Custom fit for RAM 1500 DS Series - Classic (2013+)

For use with Triple-R 750 Performance LED driving lights

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications
  2x
Triple-R
750 Wide
2x
Triple-R 750

2x
Triple-R
750 Elite
(E-Boost Mode)

Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs
Weight 2 kg 2 kg 2 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 9240 Lm

10136 Lm

Total Driver 'FOV' Flux † 5266 Lm 5572 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4 2 x 4
Power Consumption 88 Watts 88 Watts 104 Watts
Current Draw (at 14.4V) 6.2 Amps 6.2 Amps 7.2 Amps
CERTIFICATION
High Beam ECE R149 ECE R112 ECE R112
ECE Reference 20 x2 35 x2

N/A
(12.5 x2 - E-Mark Mode)

Position Light (White only) N/A ECE R7 N/A

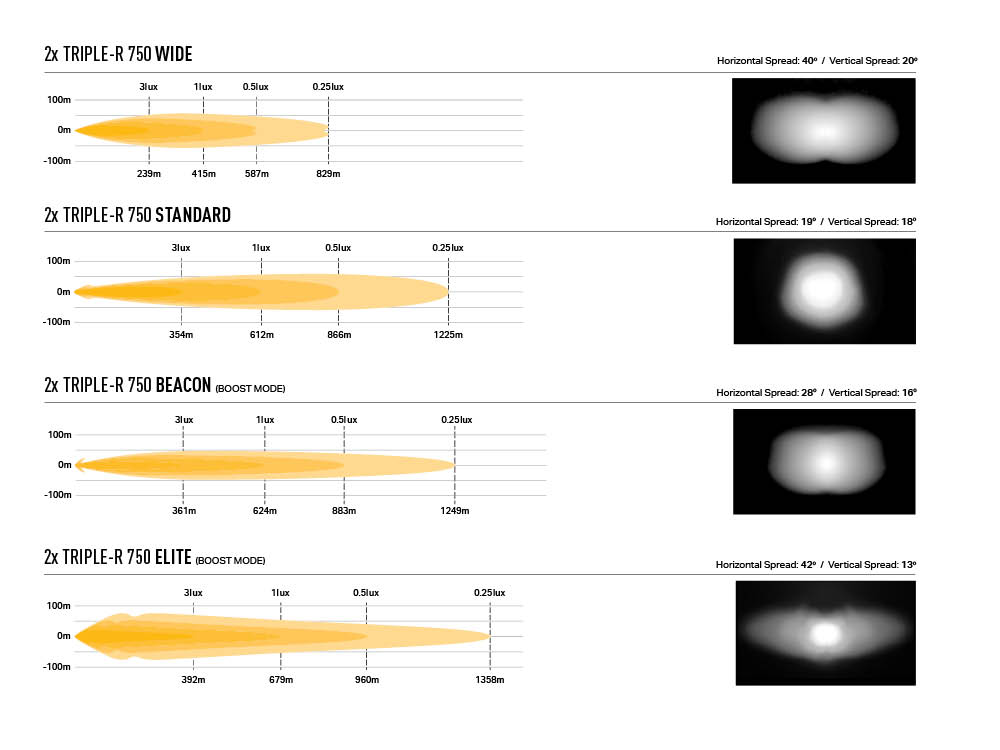

PHOTOMETRIC DATA
Horizontal Beam Angle 40o 19° 42°
0.25 lx Line 829m 1225m 1358m
0.5 lx Line 587m 866m 960m
1 lx Line 415m 612m 679m
3 lx Line 239m 354m 392m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x Triple-R 750 LED Lamps
  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
