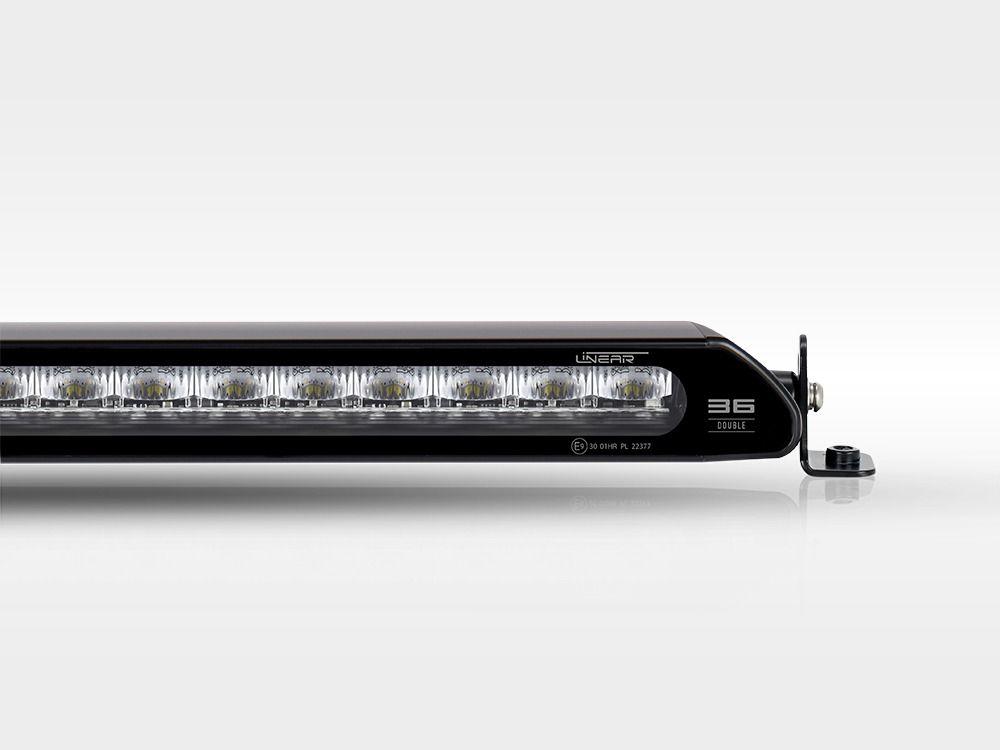

Linear-36

Rating:
100%
Product Code
#0L36-LNR

From £654.00

To £984.00

Linear-36   + £654.00
Linear-36

In stock

£654.00

Find a
Stockist

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Linear-36

Highly efficient 3W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions, or roof mounting

Sleek, low profile design eases installation

Aero design virtually eliminates wind noise on roof installations

Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function

UNECE approved Reg 10

IP68 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed and manufactured in UK

Technical Specifications

Based on: 1x Linear-36 LED lightbar.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux 13500 Lm
Total Driver 'FOV' Flux † 9612 Lm
Colour Temperature 5000K
Number of High Output LEDs 36
Power Consumption 126 Watts
Current Draw (at 14.4V) 8.8 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 2x 30
DIMENSIONS
Width 982 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 50°
0.25 lx Line 940 metres
0.5 lx Line 665 metres
1 lx Line 470 metres
3 lx Line 271 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Linear-36 LED Lamp
  • x1 Anti-Theft Side Mount (1127k)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
