Mercedes Sprinter (2018+) - Fog Light Upgrade Kit

Product Code
#BK-MSP-01

From €805.00

To €1,040.00

Fog Light Upgrade Kit   + €805.00
Mercedes Sprinter (2018+) - Fog Light Upgrade Kit

In stock

€805.00

Find a
Stockist

Compatible with the Mercedes Sprinter (W907/W910), Lazer’s Fog Light Upgrade Kit features a pair of Carbon-2 ‘DRIVE’ LED lights elevating the Sprinter’s lighting capabilities to deliver a dynamic, safer, more enjoyable night driving experience. Supplied pre-mounted into left-hand / right-hand lamp holders, on the one-hand the Carbon-2 lamps deliver a supplemental high beam driving light, and at the flick of a switch, a supplemental yellow dipped beam light output (for off-road use). The lamp holders themselves feature Lazer’s grain texture finish, which give the kits a rugged and tough appearance, without needing to be additionally painted.

With a combined 6,240 raw lumens (high beam mode), the Carbon-2 lights bring cutting edge motorsport tech to the road and off-road. Recent upgrades to the lamps allow for: a UNECE Reg 149 approved (Class B, E-Ref 12.5) driving light function for additional high beam performance, an ‘off-road’ dipped beam function (in yellow light) that helps cut through adverse weather conditions such as fog, dust, or rain. In addition, white and amber backlight functions are included with the lamps (the customer is able to set which colour they want to use, by programming the backlight function during installation).

The appeal and relevance of the Sprinter Fog Light Upgrade kit is furthered by versions of the kit for vehicles with, and without, OE fog lights. In the case of vehicles with OE fogs, the supplied lamp holders can be retrofitted in the spaces vacated by removing the original fog lamps (please note – the corner lighting function is not retained when upgrading to this kit). As an upgrade for vehicles without the original fog lights, within the upgrade kit we supply cutting templates that facilitate the fit and fitment of the lamps, alongside a plug and play wiring kit.

For vehicle’s with LED headlights, it will be necessary to utilise Lazer’s market-leading CANNY solution. A Smart Button can also be used, which can then activate the Dip mode on the lamps in case of adverse conditions.

Like all Lazer products, the Sprinter Fog Light Upgrade Kit, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5 year warranty.



PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Mercedes Sprinter (2018+) - Fog Light Upgrade Kit

Fog Light Upgrade Kit for Mercedes Sprinter (2018+) W907/W910 vehicles

Compatible with vehicles with and without OE fog lights

Features Carbon-2 ‘Drive’ (with Yellow Dip Beam) LED driving lights

UNECE approved Reg 149 (Class B Driving Light, E-Ref 12.5) for on-road high beam function

Lamp housing and bezel made from UV-stable, high strength, PC-ABS material

Includes cutting templates for easy installation on vehicles without OE fog lights

Includes twin-lamp wiring harness kits

Black and White lens covers available

5 year warranty

Designed and manufactured in the UK

Technical Specifications


2x Carbon-2 DRIVE
(Yellow Dip)


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2x 192g

HIGH BEAM FUNCTION
Total Luminous Flux 6,240 Lm
Total Driver 'FOV' Flux † 3,672 Lm
High Beam Colour Temperature 5000K
Dip Beam Colour Yellow
Power Consumption 58 Watts
Peak Current Draw 5.2 Amps
Current Draw (14.4V) 4.2 Amps
Connector 4-Pin Deutsch DT (+15cm Cable)

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R149 - Ref: 2x 12.5
Backlight/PL Not Approved
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 60° / 12°
0.25 lx Line 748m
0.5 lx Line 529m
1 lx Line 374m
3 lx Line 216m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

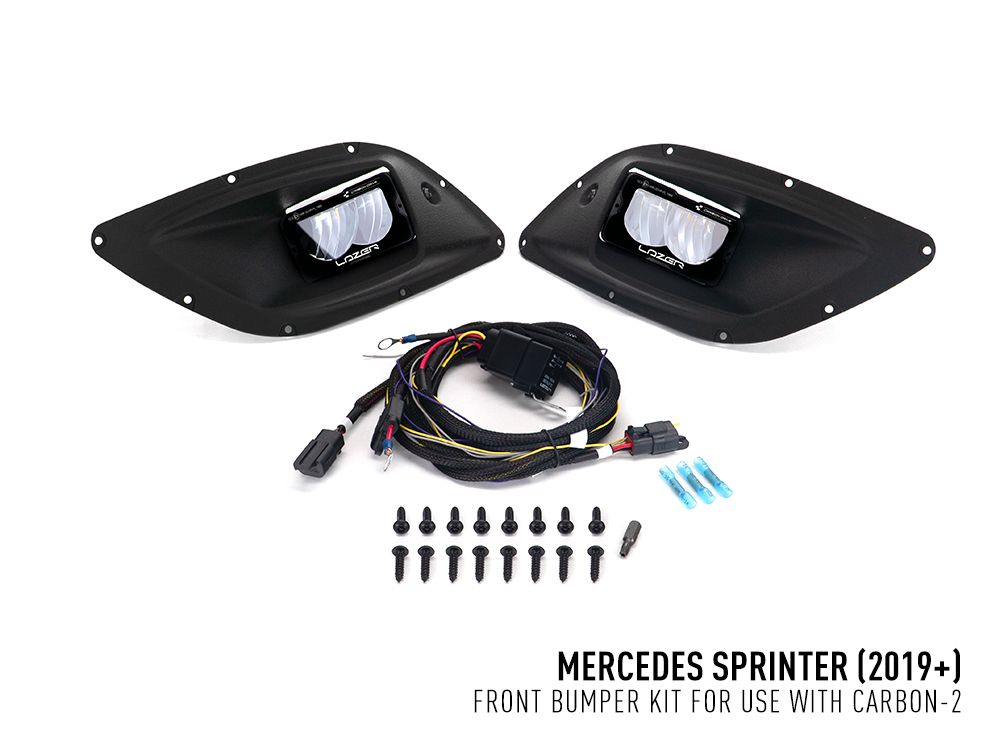

What's Included
  • Lamp Holder with Carbon-2 DRIVE (Yellow Dip) pre-mounted (LH/RH)
  • Positioning Templates (LH/RH)
  • Two-Lamp Wiring Kit
  • Load Resistor (x2)
  • Black T-25 Torx Security Screws (x10) & Security Bit
  • T-30 Torx Security Bit
  • Screw Clips (x6)

Fitting instructions available in the downloads section below.

Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
