Carbon-2 DRIVE (with Backlight and Yellow Dip)

Product Code
#00C2-DRIVE-PL-WY

From €220.00

To €310.00

Carbon-2 Drive - with Yellow Dip Beam   + €220.00
Carbon-2 DRIVE (with Backlight and Yellow Dip)

In stock

€220.00

Find a
Stockist

The latest generation of Carbon-2 LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, now with the added benefits of UNECE Reg149 approval, making this a superior motorsport and on-road lighting solution. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in three modes:

  • HIGH BEAM - BOOST MODE (100% output)
  • DIP BEAM (100% output, aimed lower)
  • HIGH BEAM - REDUCED OUTPUT (25% output)

Since 2025, there is the option for the colour of light on the DIP BEAM to be either white or yellow (separate products), with the yellow dip beam version lamp also featuring white and amber backlight functions. The customer can select the colour of backlight at any time after the lamp is in installed on a vehicle, by flashing the back-light on/off a pre-set number of times. The customer may switch back to the other back-light colour by repeating the sequence of on/off flashing on this function.

Operating in the High Beam – Boost Mode, the Carbon-2 DRIVE is compliant with UNECE R149 (Class B Driving Light) regulations for on-road high beam use. The high-intensity beam pattern of the Carbon-2 SPOT sits beyond the regulation limit, and is delivered in this high output condition. To operate the Carbon-2 SPOT at the UNECE R149 (Class RA Supplemental Driving Light) compliant light output level (25% output), the customer can ‘program’ the light by flashing the lights off/on a set number of times prior to use. A similar sequence can be used to re-activate high output / boost mode when the lamp is to be used off-road or in countries where the laws of the road permit output above UNECE R149.

The lamp housing is constructed from high-strength and heat-resistant PC-ABS material. Thermal control of the lamp is managed through a CAE-optimised anodised aluminium element, meticulously engineered to maintain full and optimal lighting performance of the LEDs. The result are products weighing just 192g each. Dynamic drive modulation within the lamps, prevents damage to the electronic components in more extreme environmental and thermal conditions.

As with all Lazer products, the Carbon-2 lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product. Additional to the lamps themselves, a range of lens covers is also available, including black and white lens covers for daytime protection.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Carbon-2 DRIVE (with Backlight and Yellow Dip)

Ultra-lightweight, PC-ABS material housing

Combination of premium-bin, high intensity LEDs

Available with Spot or Drive optics

Full-beam mode and secondary low/dipped beam mode

Low/dipped beam mode, available as white or yellow colour, optimised for snow/fog/dust conditions, or to prevent glare off road signs during road stage events.

Carbon-2 SPOT features Dual-output functionality – High and Low output modes, with the low output mode approved to UNECE Reg 149 Class RA Supplemental Driving Light

Carbon-2 DRIVE approved to UNECE Reg 149 Class B Driving Light, for on-road high beam

Carefully selected 5000K colour temperature maximises sharpness and definition

White and Amber backlight function (Yellow Dip Mode products only)

CAE-optimised heatsink requires minimal airflow to maintain 100% light output

Dynamic drive modulation preserves electronic components in adverse conditions

Low profile, edge-to-edge design for improved aerodynamic performance

Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)

Vehicle side connector, plus 150mm cable length supplied with each lamp

‘Unbreakable’ polycarbonate lens

Range of black and white lens covers available

IP68 watertight

5-year warranty

Designed & manufactured in the United Kingdom

Technical Specifications


1x Carbon-2 DRIVE
(Yellow Dip)


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 192g

HIGH BEAM FUNCTION
Total Luminous Flux 3,120 Lm
Total Driver 'FOV' Flux † 1,836 Lm
High Beam Colour Temperature 5000K
Dip Beam Colour Yellow
Power Consumption 29 Watts
Peak Current Draw 2.6 Amps
Current Draw (14.4V) 2.1 Amps
Connector 4-Pin Deutsch DT (+15cm Cable)

DIMENSIONS
Width 116 mm
Depth 85 mm
Height 62 mm

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R149 - Ref: 12.5 (in Low Output Mode only)
Backlight/PL N/A
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

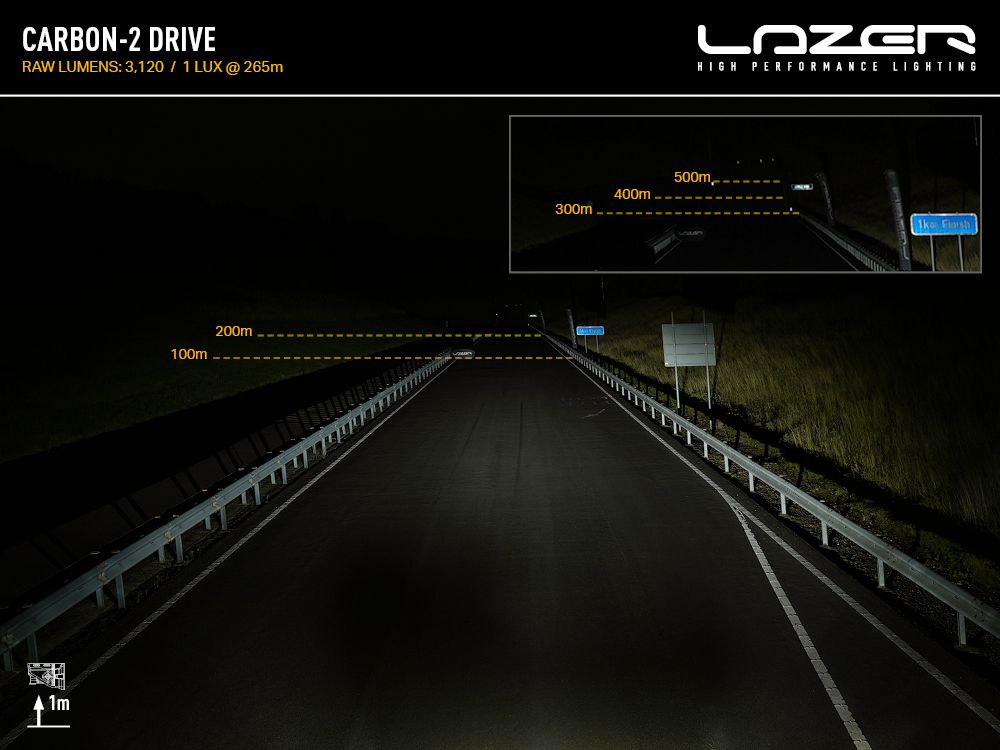

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 60° / 12°
0.25 lx Line 529m
0.5 lx Line 374m
1 lx Line 265m
3 lx Line 153m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Carbon-2 Drive (Yellow Dip)
  • x1 Installation Instructions
