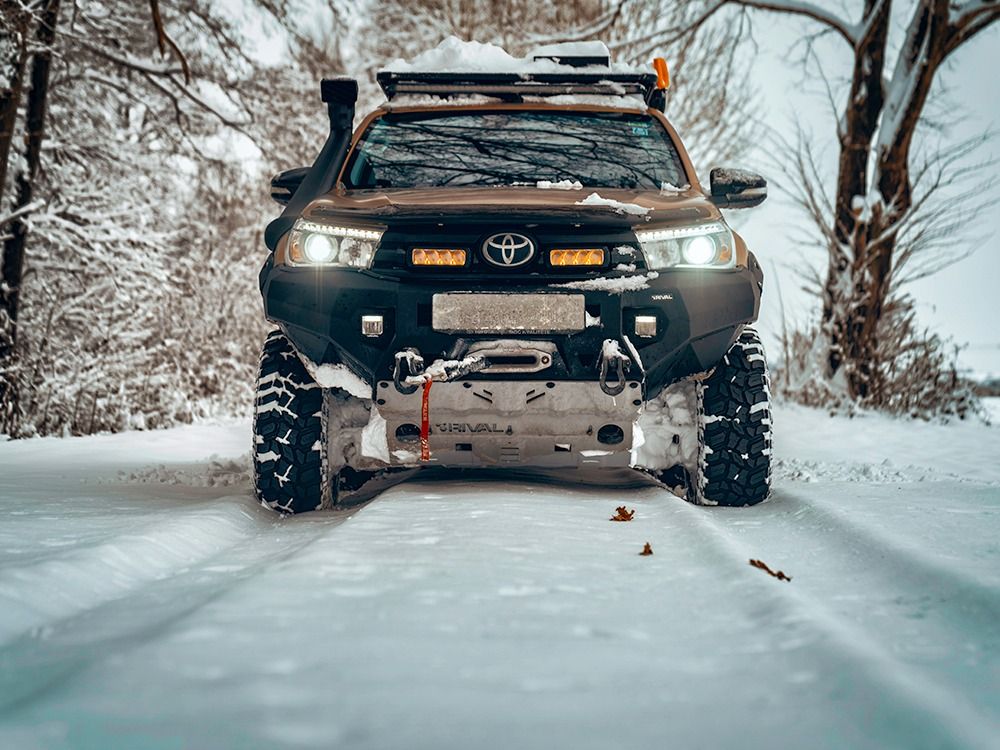

Upgrade the look and performance of your Toyota Hilux (2017-2020) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.
Each kit includes a pair of Triple-R 750 High Performance LED driving lights, available in four variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated Position Light function. The Wide offers a broader beam and a lower ECE Regulation 149 reference - no boost cap required, making it ideal for customers in countries with specific lighting regulations. Designed for versatility, the Beacon variant has an integrated amber beacon and Position Light function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.

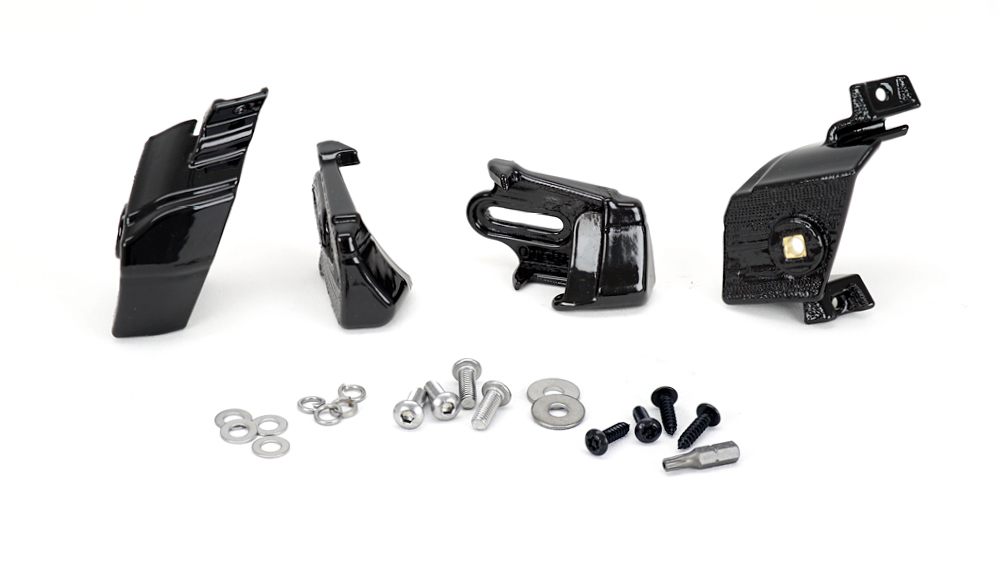

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.
Please note: The Toyota Hilux (2017-2020) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x TRIPLE-R 750
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux
9,240 Lm
Total Driver 'FOV' Flux †
5,572 Lm
Colour Temperature
5000K
Power Consumption
88 Watts
Current Draw (14.4V)
6.2 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 35 - per lamp)
Position Light (white)
ECE R7
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
19° / 18°
0.25 lux
1225m
0.5 lux
866m
1 lux
612m
3 lux
354m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x TRIPLE-R 750 BEACON
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux
10,800 Lm
Total Driver 'FOV' Flux †
6,156 Lm
Colour Temperature
5000K
Power Consumption
104 Watts
Current Draw (14.4V)
7.4 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 - Ref: 2x 10 - per lamp (in Low Output Mode only)
Position Light (white)
ECE R7
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
28° / 16°
0.25 lux
1249m
0.5 lux
883m
1 lux
624m
3 lux
361m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
2x TRIPLE-R 750 ELITE
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux
10,136 Lm
Total Driver 'FOV' Flux †
6,680 Lm
Colour Temperature
5000K
Power Consumption
104 Watts
Current Draw (14.4V)
7.2 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 - Ref: 12.5 - per lamp (in Low Output Mode only)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
42° / 13°
0.25 lux
1358m
0.5 lux
960m
1 lux
679m
3 lux
392m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
