ST8 Evolution
ST8 Evolution ST8 Evolution ST8 Evolution ST8 Evolution Labeled diagram of the lamp detailing its key features, including lens, housing, heat sink, mounting bracket, and power connector.

ST8 Evolution

Product Code
#0008-EVO-B

From €380.00

To €420.00

1. Lighting Options *
ST8 Evolution

In stock

Find a Stockist

€380.00

PAYMENT & DELIVERY

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

The ST Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28, these are LED light bars benefitting from huge versatility, having been adopted across a wide range of different applications and vehicle types, since the products were first launched in 2010. Since then, the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary, seamless, low profile design making them easier to install, more resistant to dirt, snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles.

Superior lighting performance is delivered by the high power 11W LEDs, alongside advanced electronic design, combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products, the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings.

Performance aside, the ST Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed, engineered and manufactured in-house, in the UK, there’s no compromise when it comes to build quality, ensuring the lights perform as well as they look and function for years to come.

High density, premium ‘bin’ 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective, vacuum-metallised conical optics deliver excellent spread

Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 Class B Driving Lights for on-road high beam function

UNECE approved Reg 10

IP68 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin superseal connectors

Designed and manufactured in UK

  ST8 EVOLUTION
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.15 kg
HIGH BEAM FUNCTION
Total Luminous Flux8,272 Lm
Total Driver 'FOV' Flux 4,980 Lm
Colour Temperature5000K
Power Consumption95 Watts
Current Draw (14.4V)6.6 Amps
Peak Current Draw9.1 Amps
Connector2-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R112 - Ref: 17.5
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer Lamps products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRICS
0.25 lx Line786 metres
0.5 lx Line555 metres
1 lx Line393 metres
3 lx Line227 metres

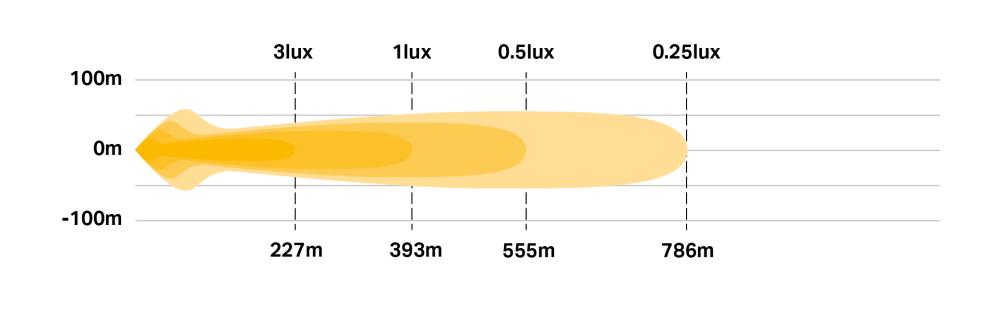

ST8 photometric diagram
BEAM DISTRIBUTION
Horizontal40 degrees
Vertical25 degrees
ST8 beam distribution
ST8 Beam Photo
DIMENSIONS
Width364mm
Depth68mm
Height64mm

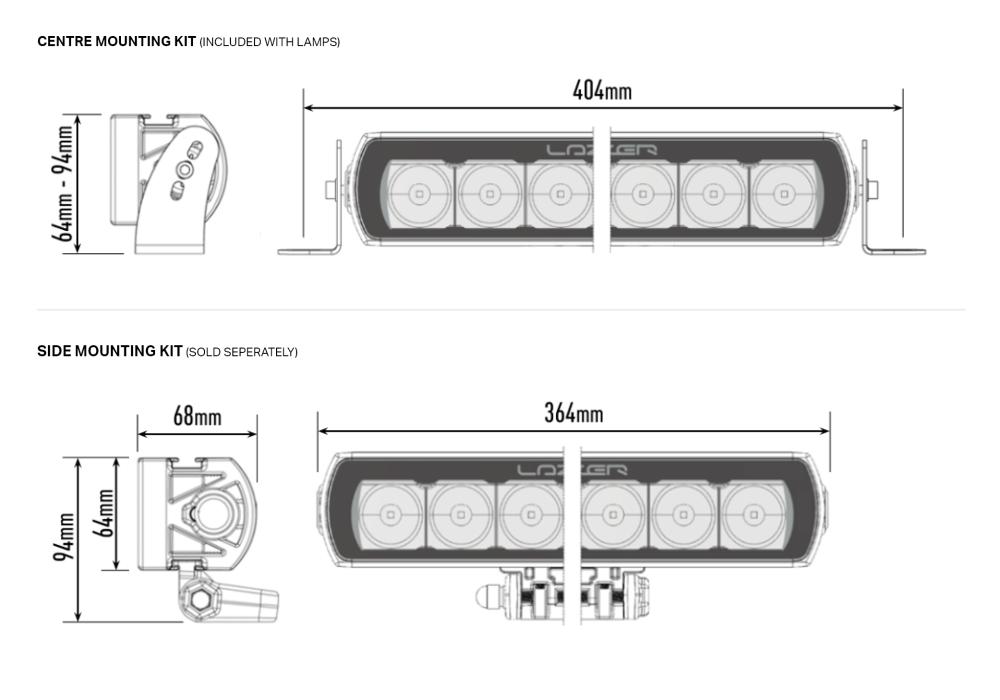

ST8 dimensions diagram
  • x1 ST8 Evolution LED Spotlight
  • x2 Centre Mount (1114K)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.

@LAZERLAMPS
