Sentinel 7'' Elite
Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite Sentinel 7'' Elite

Sentinel 7'' Elite

Rating:
100%
Product Code
#0S7-ELITE-PL-SM

From €375.00

To €427.00

1. Lighting Options *
Sentinel 7'' Elite

In stock

Find a Stockist

€375.00

PAYMENT & DELIVERY

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

The Sentinel 7" Elite represents the pinnacle of round LED driving light performance, combining exceptional lighting capability with premium styling and advanced functionality. Equipped with 24 high-performance LEDs producing 10,248 raw lumens, the lamp delivers outstanding visibility through class-leading electronics, precision-engineered optics, and a CAE-optimised lamp housing.

Boasting a true 'combo' beam pattern, the central rows of LEDs provide impressive long-range illumination, while the upper and lower optics have been carefully engineered to produce an exceptional 65° spread of light. The result is a perfectly balanced beam pattern with a 5000K colour temperature, making night driving safer, more comfortable, and less fatiguing. Despite consuming just 116W, the Sentinel Elite outperforms many significantly larger and more powerful driving lights.

Operating at full output, the lamp exceeds UNECE high beam driving light regulations. To ensure maximum versatility, it features Lazer's dual-output E-Boost technology. Removing the supplied Boost Cap from the rear of the lamp reduces light output to comply with UNECE Regulation 149, permitting use alongside your vehicle's standard high beam lights where required.

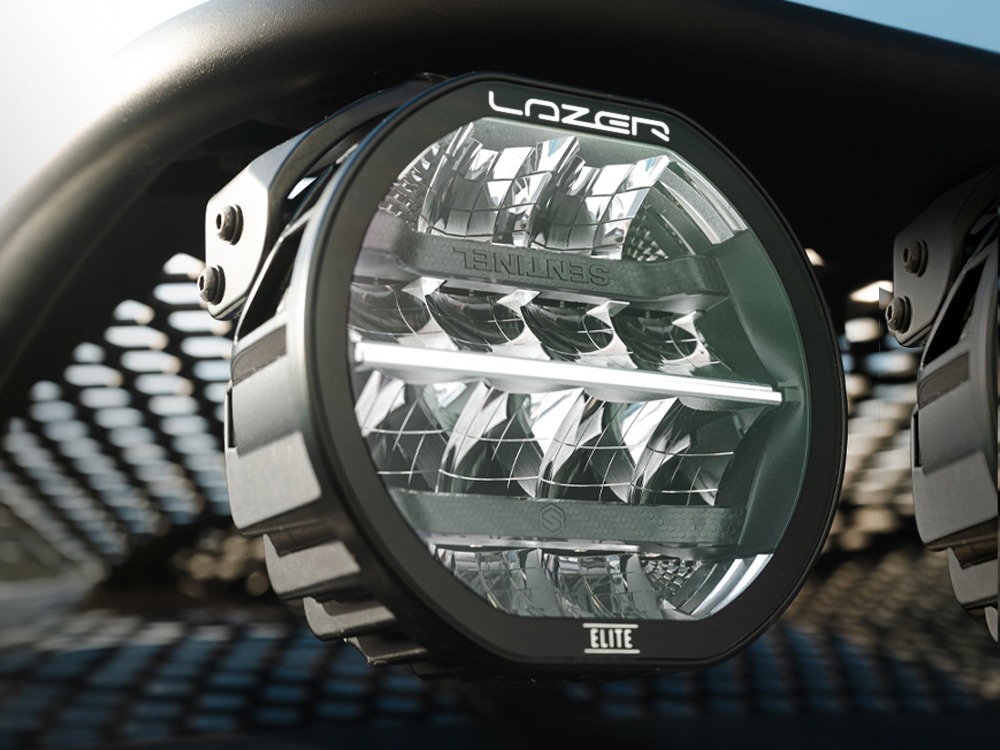

The Sentinel's stealth styling is achieved through black printed circuit boards and a satin black bezel with intricate hexagonal detailing, creating a distinctive, contemporary appearance. Exclusive to the Elite model is an integrated white or amber position light, adding an even more distinctive look, with the white position light approved to UNECE Regulation 148. The lamp is supplied with a slim die-cast aluminium mounting bracket featuring an automotive-grade pre-treatment and satin black powder-coated finish for outstanding durability and corrosion resistance. For added installation flexibility, the lamp is also available with an inverted lens, allowing for upside-down mounting while maintaining both optimum beam performance and the lamp's distinctive appearance. In addition, the Sentinel 7" Elite is also available with a white housing, offering greater flexibility to complement different vehicle styles and finishes.

Like all Lazer products, the Sentinel is designed, engineered, and manufactured in-house in the UK. Without compromise in component quality or manufacturing processes, every lamp is built to deliver exceptional performance while supporting Lazer's ongoing commitment to sustainability and carbon reduction.

Combination of 24 premium ‘bin’ LEDs

Stealth black internal appearance

5000K LED colour temperature and 80CRI maximises sharpness and definition

Integrated white and amber position light function (Elite only)

Ultra-reflective vacuum-metallised spot and wide optics

UNECE Reg 149 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 148 position/side light function (white only)

Contemporary lamp design

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 3-Pin Superseal connectors

Designed & manufactured in UK

SENTINEL 7'' ELITE BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux10,248 Lm2,049 Lm
Total Driver 'FOV' Flux 6,380 Lm1,276 Lm
Colour Temperature5000K5000K
Power Consumption116 Watts23 Watts
Current Draw (14.4V)7.6 Amps1.5 Amps
Peak Current Draw8.8 Amps1.8 Amps
Connector3-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 - Ref: 12.5 (in Low Output Mode only)
Postion Light (white)ECE R148
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

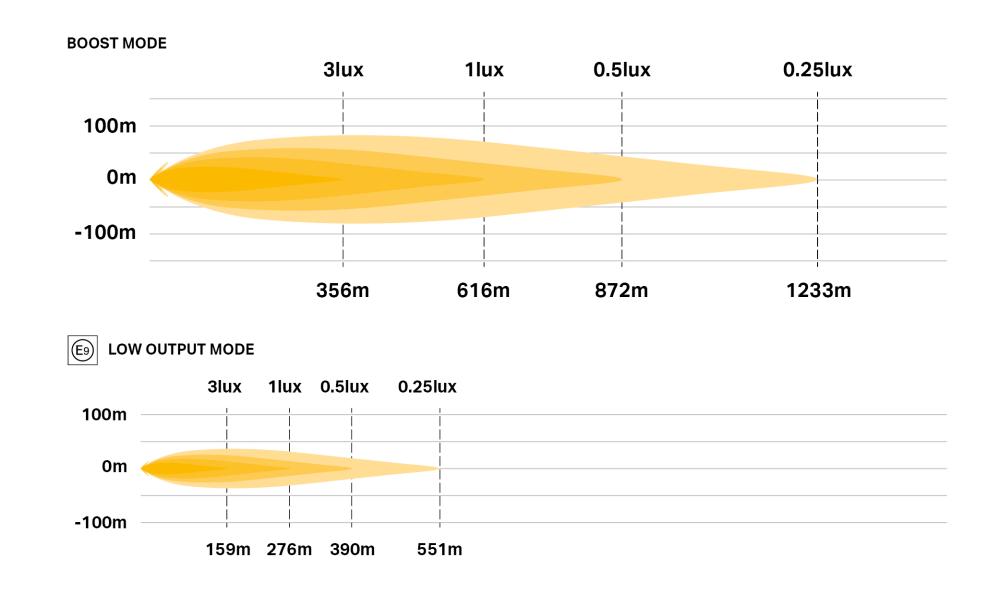

PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1233 metres551 metres
0.5 lx Line872 metres390 metres
1 lx Line616 metres276 metres
3 lx Line356 metres159 metres
Sentinel 7'' Elite photometric diagram

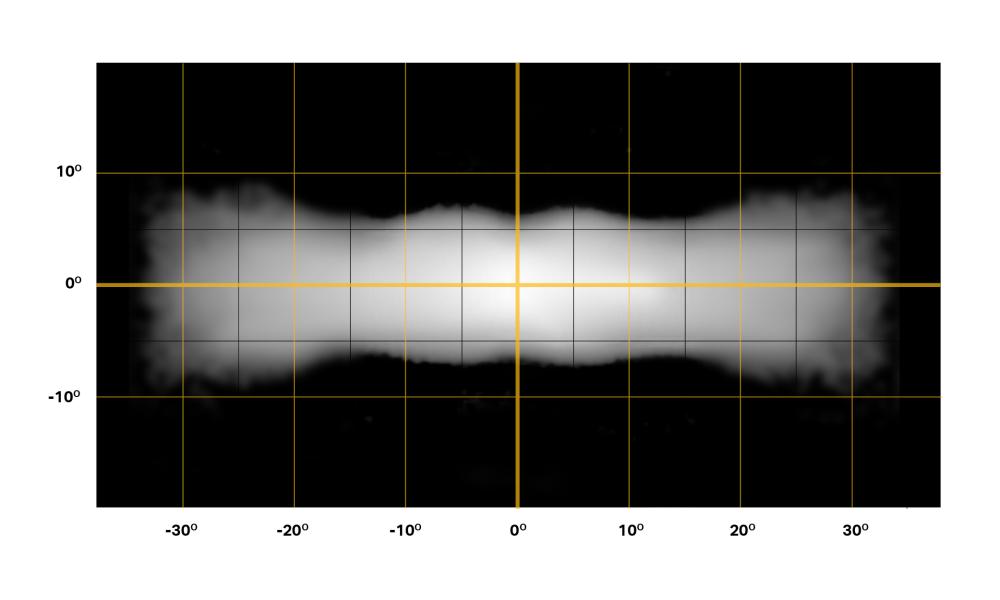

BEAM DISTRIBUTION
Horizontal65 degrees
Vertical18 degrees
Sentinel 7'' Elite beam distribution

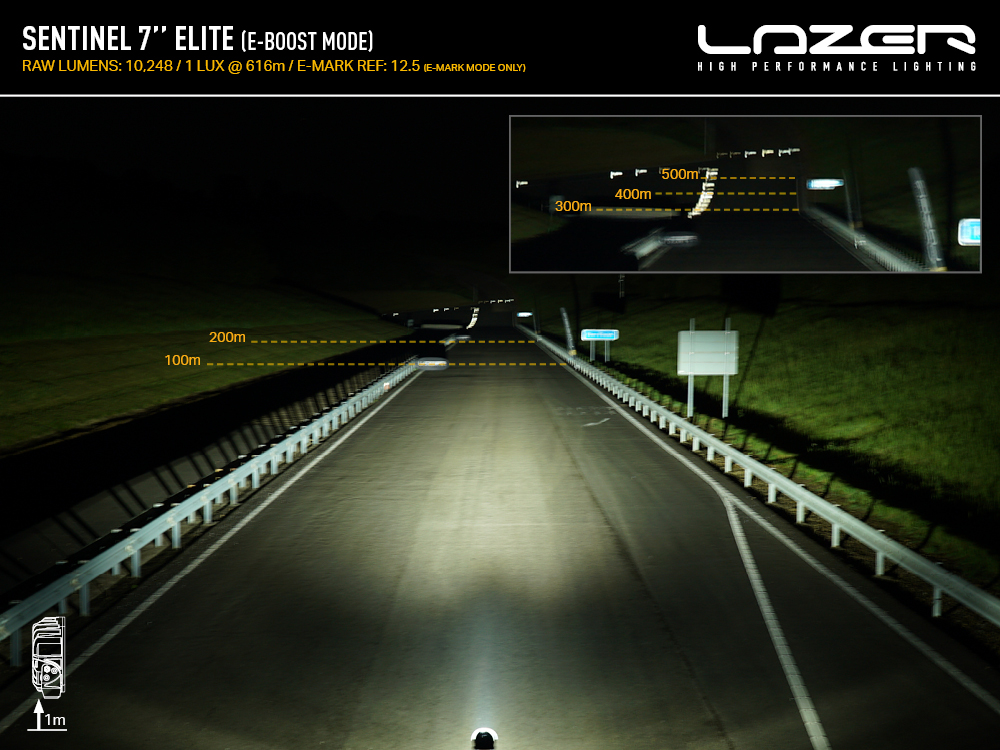

Sentinel 7'' Elite Beam Photo

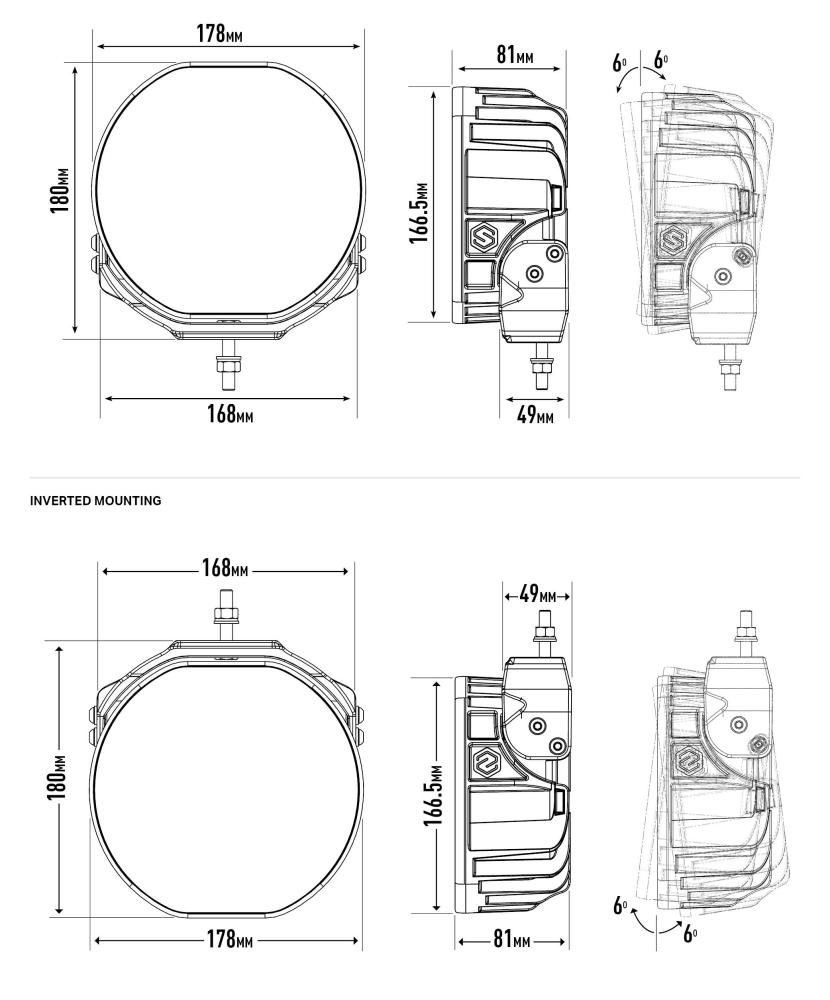

DIMENSIONS
Width178mm
Depth81mm
Height180mm
Sentinel 7'' dimensions diagram
  • x1 Sentinel 7'' Elite LED Lamp
  • x1 'Slim' Mount Kit (1141-0S7-K)
  • x1 Black Lens Cover (LC-0S7-BLK)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.
