For an OE-quality auxiliary lightbar installation, the Triple-R Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Lazer Lamps’ High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

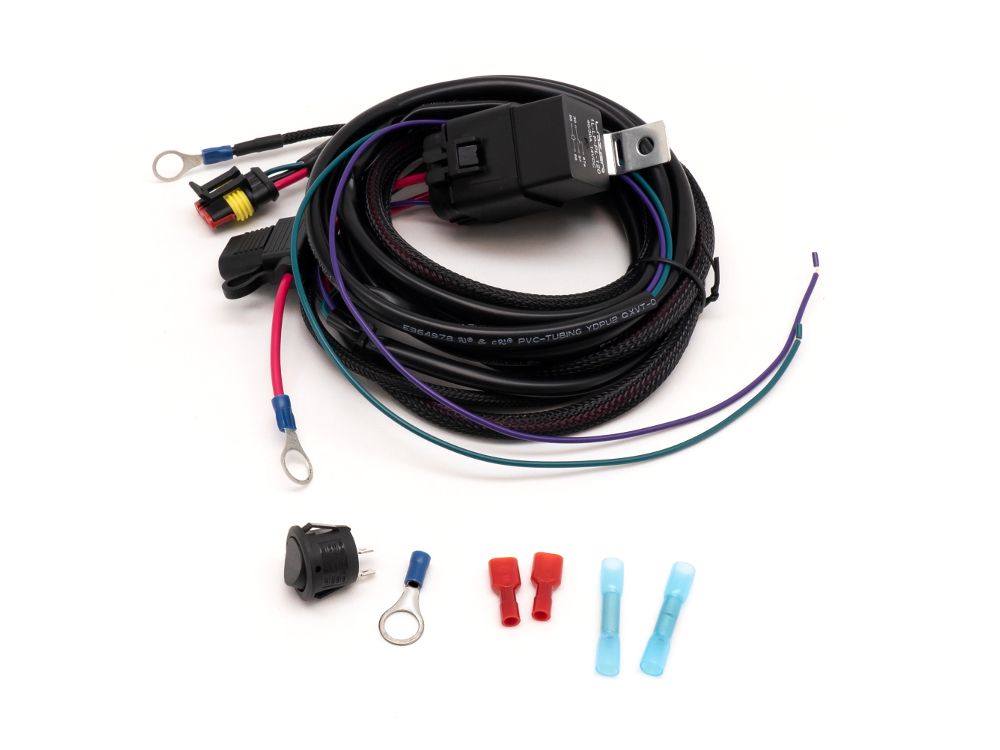

The RAM 2500/3500 Laramie (2019-2024) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) or Linear-18 (Standard, Elite, Elite+ or Elite i-LBA) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.
Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.
The RAM 2500/3500 Laramie (2019-2024) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide and Linear-18 LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

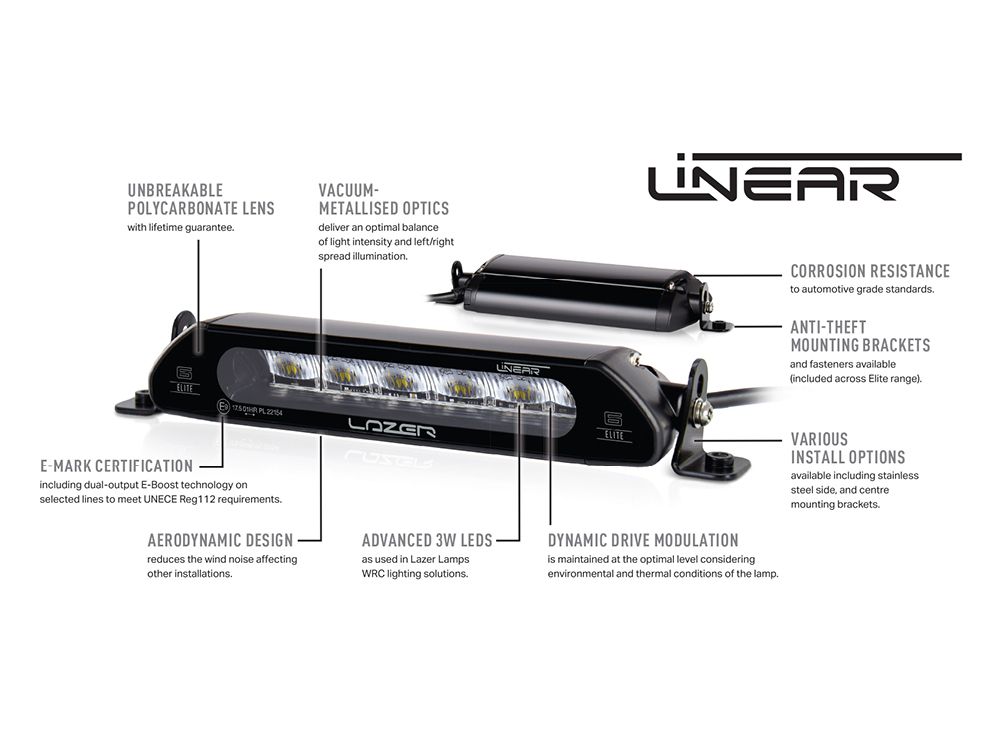

LINEAR-18 ELITE
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
13,500 Lm
Total Driver 'FOV' Flux †
9,612 Lm
Colour Temperature
5000K
Power Consumption
130 Watts
Current Draw (14.4V)
9 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 - Double E-Mark (Ref: 2x25)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
64° / 15°
0.25 lux
1023
0.5 lux
723m
1 lux
511m
3 lux
295m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
LINEAR-18 ELITE I-LBA (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
18,000 Lm
Total Driver 'FOV' Flux †
12,816 Lm
Colour Temperature
5000K
Power Consumption
135 Watts
Current Draw (14.4V)
15 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R112 (Ref: 17.5 - in Low output Mode only)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
60° / 20°
0.25 lux
1043m
0.5 lux
783m
1 lux
522m
3 lux
301m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
LINEAR-18 ELITE+ (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
14,850 Lm
Total Driver 'FOV' Flux †
10,573 Lm
Colour Temperature
5000K
Power Consumption
134 Watts
Current Draw (14.4V)
9.9 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Ref: 27.5 - in Low Output Mode only)
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
84° / 20°
0.25 lux
1152m
0.5 lux
815m
1 lux
576m
3 lux
333m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.

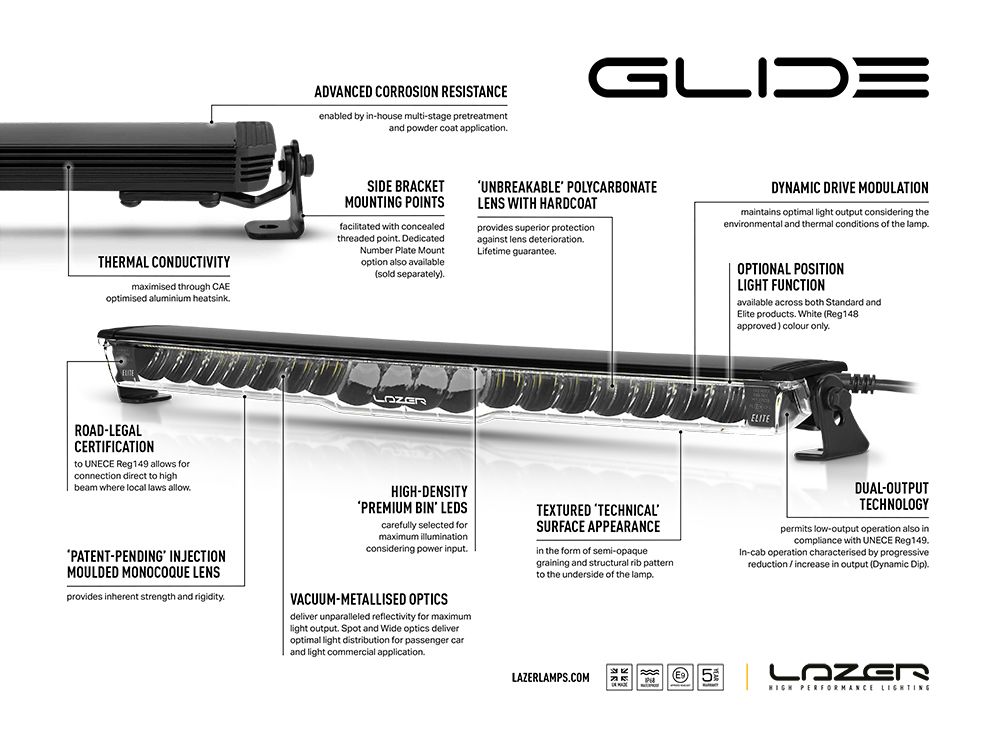

GLIDE (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
0.68 kg
HIGH BEAM FUNCTION
Total Luminous Flux
11,500 Lm
Total Driver 'FOV' Flux †
6,958 Lm
Colour Temperature
5000K
Power Consumption
120 Watts
Current Draw (14.4V)
8.3 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Ref: 12.5 - in Low Output Mode only)
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
60° / 13°
0.25 lux
1095m
0.5 lux
775m
1 lux
548m
3 lux
316m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
GLIDE ELITE (BOOST MODE)
Voltage Range (DC)
10-32V
LED Life
50,000 hrs
Weight
0.68 kg
HIGH BEAM FUNCTION
Total Luminous Flux
12,800 Lm
Total Driver 'FOV' Flux †
8,012 Lm
Colour Temperature
5000K
Power Consumption
130 Watts
Current Draw (14.4V)
9.2 Amps
CERTIFICATION
IP Rating #
IP68
High Beam (E9 approval)
ECE R149 (Ref: 12.5 - in Low Output Mode only)
Position Light (white)
ECE R148
EMC Certification
ECE R10
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle
66° / 14°
0.25 lux
1249m
0.5 lux
883m
1 lux
624m
3 lux
361m
† - Driver FOV flux is a measure of effective lumens taking
consideration of the amount of light in a driver's field-of-view,
defined as an area +/- 45° left/right, and +/- 10° up/down.
For more information
click here.
# - All Lazer products are designed to meet the requirements of IP68
testing. Every lamp produced at our UK facility is fully submerged
under water prior to sending out.
Made in the UK
