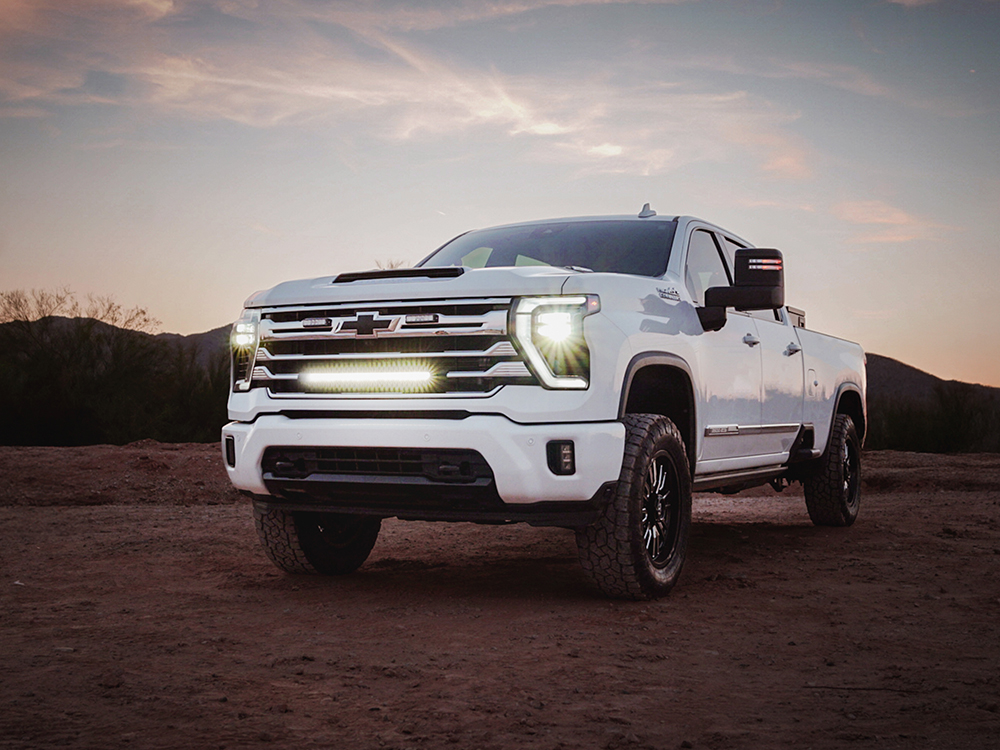

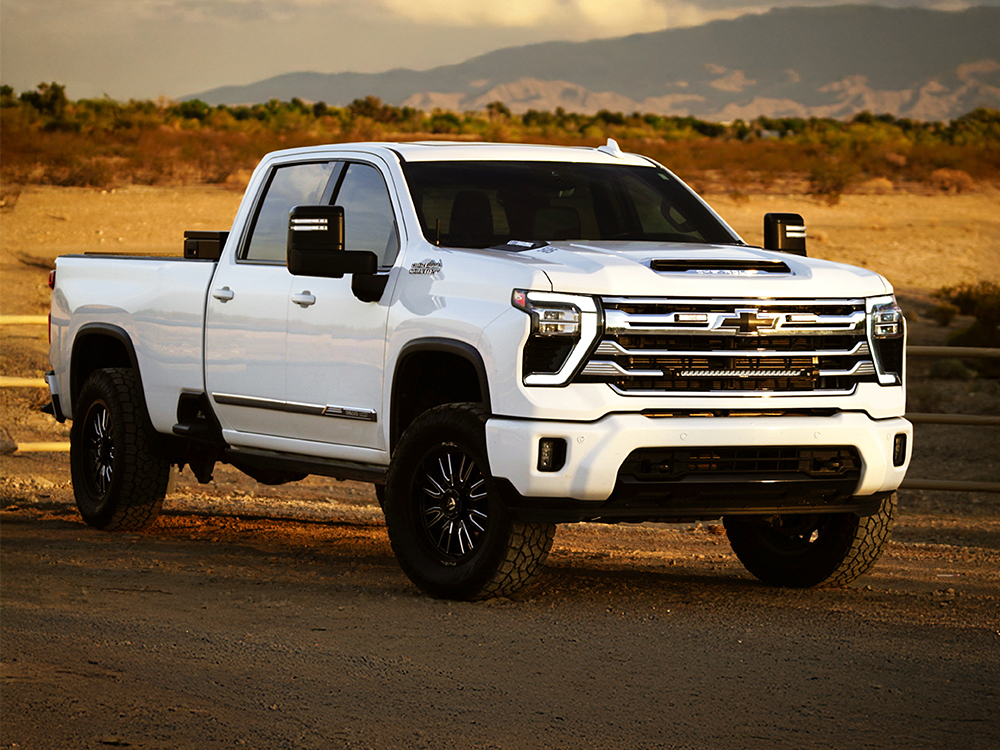

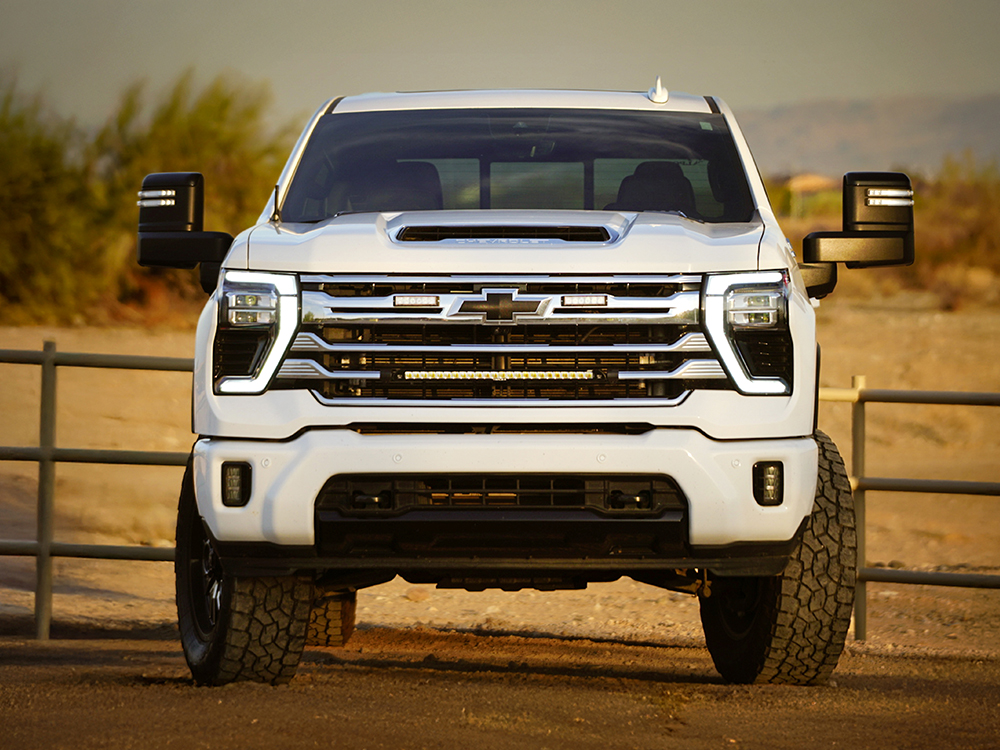

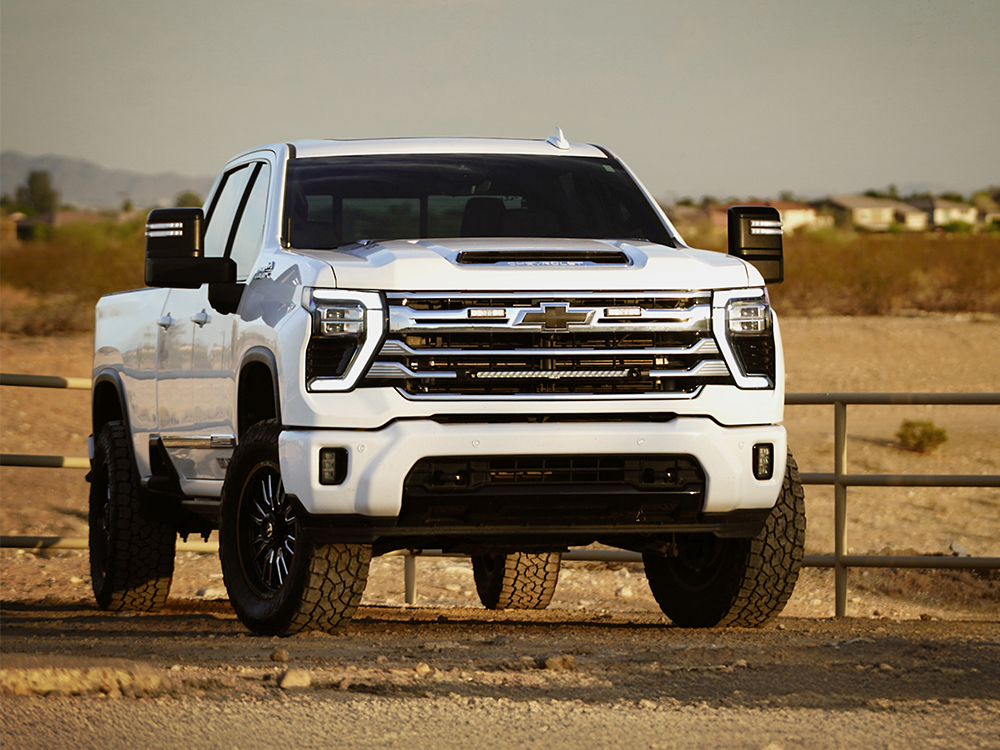

Chevrolet Silverado 2500/3500 High Country (2024+) Grille Kit

Product Code
GK-CS2500-ELITE-03K
€715.00
Find a
Stockist

For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Triple-R Lights’ High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

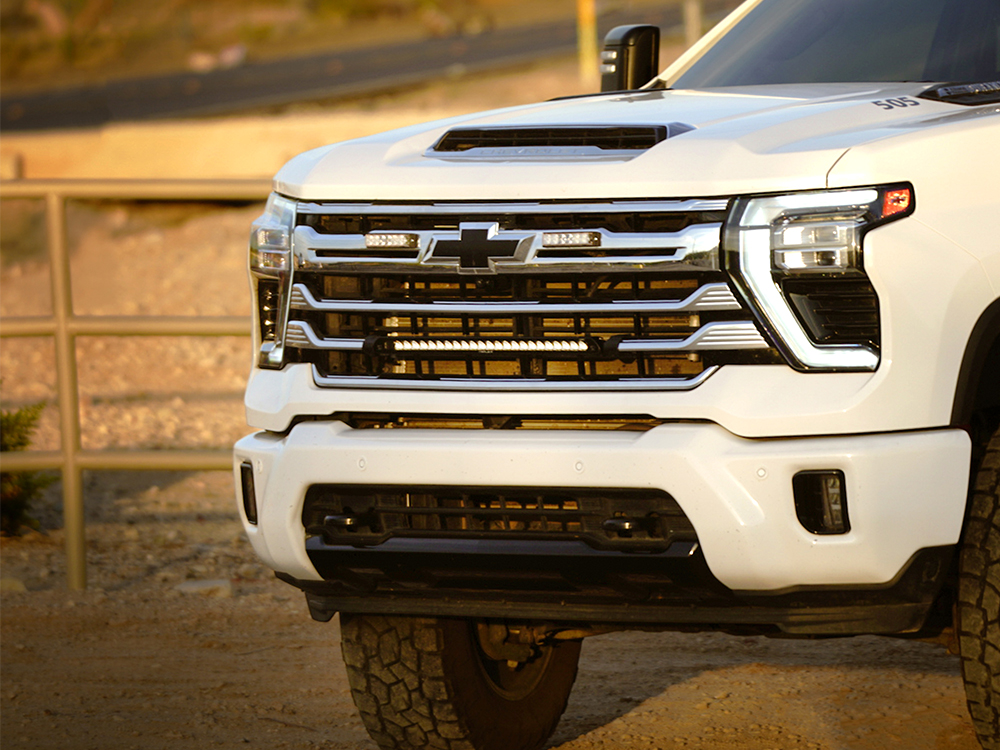

The Chevrolet Silverado 2500/3500 High Country (2024+) Grille Integration Kit features a Linear-24 Elite High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.

Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.

The Chevrolet Silverado 2500/3500 High Country (2024+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Linear-24 Elite LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Chevrolet Silverado 2500/3500 High Country (2024+) Grille Kit

Bespoke vehicle integration kit for Lazer Lamps LED light bar installation

Custom fit for Chevrolet Silverado 2500/3500 High Country (2024+)

Available with: Linear-24 Elite High Performance LED lightbars

Kit also includes bespoke mounting brackets and one-lamp wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

5-year warranty

Made in Britain

Technical Specifications


1x LINEAR-24
ELITE


Voltage Range (DC) 10-32V
LED Life 50,000 hrs
Weight 1.1 kg

HIGH BEAM FUNCTION
Total Luminous Flux 18,000 Lm
Total Driver 'FOV' Flux † 12,815 Lm
Colour Temperature 5000K
Power Consumption 188 Watts
Current Draw (14.4V) 14.4 Amps
Connector 2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R112 (Ref: 2x 30)
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

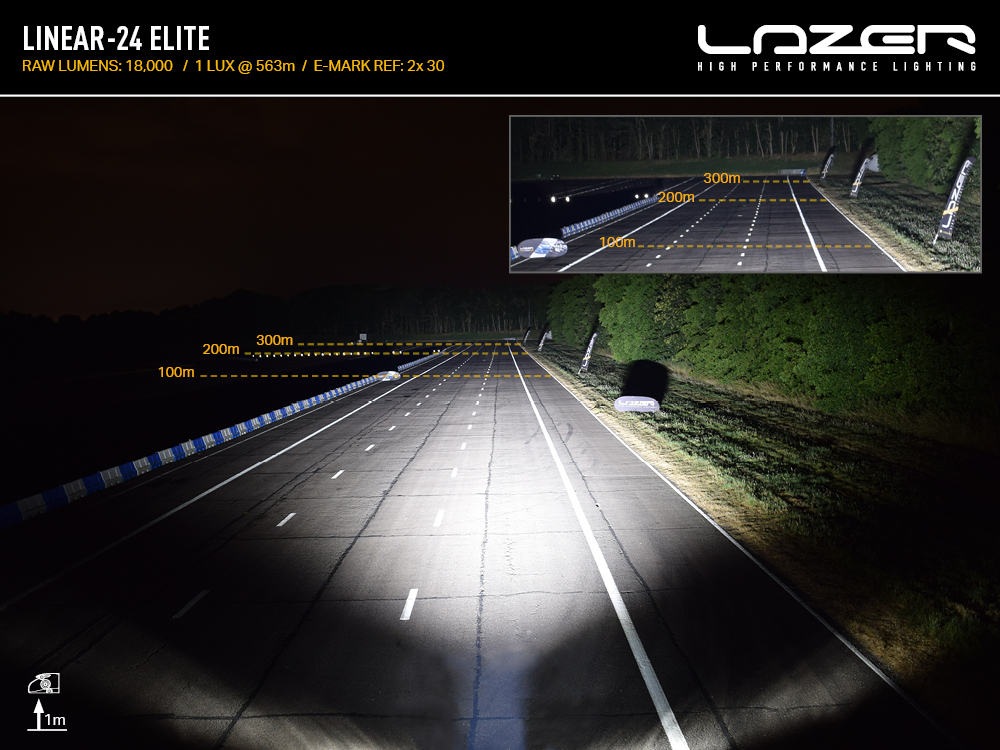

PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle 64° / 15°
0.25 lux 1126m
0.5 lux 796m
1 lux 563m
3 lux 325m


† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 1x LED Lightbar (Linear-18/Glide)

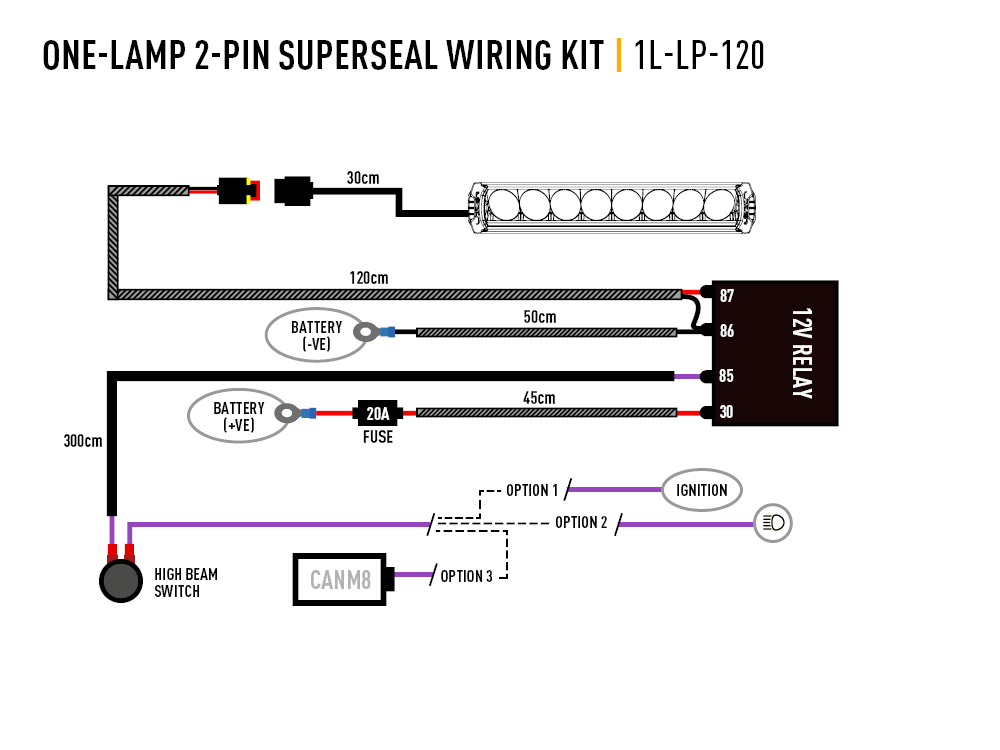

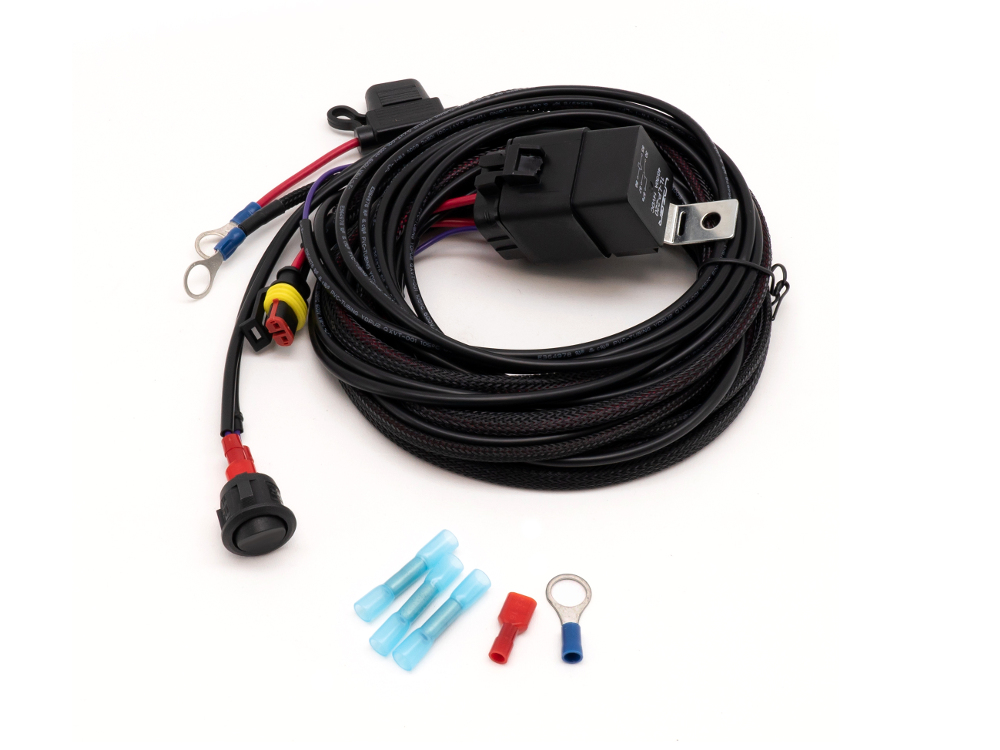

  • 1x One-Lamp Wiring Kit
  • Installation Instructions
