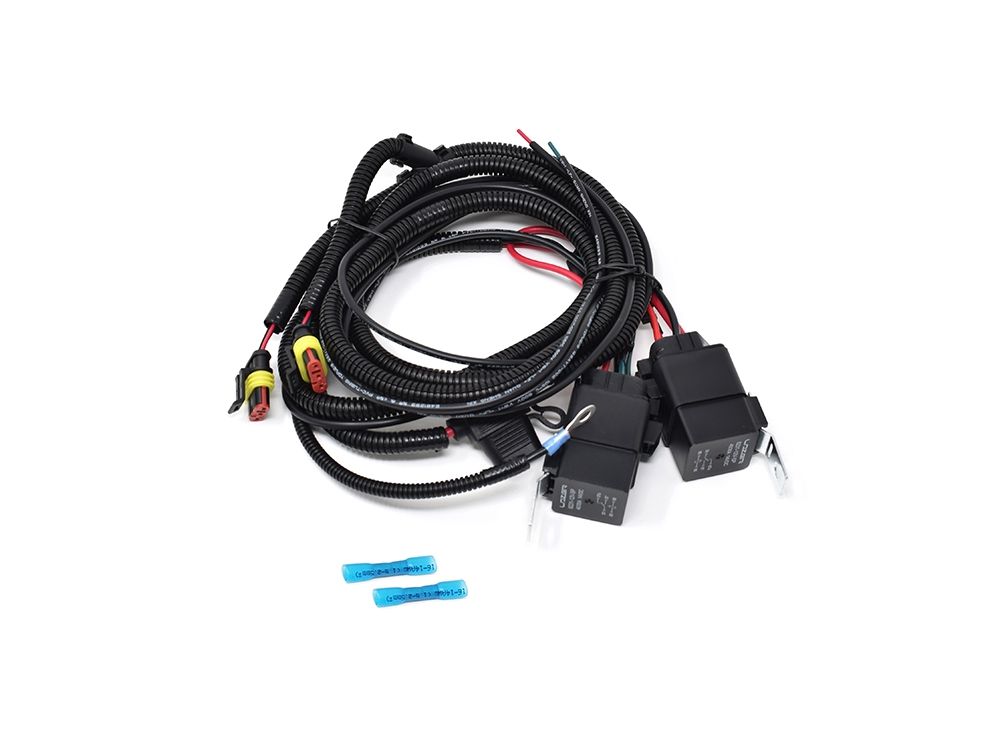

Two-Lamp Wiring Kit (Position Light, 12V) - with Splice

Product Code
8231-12V-SP
£50.00
Find a
Stockist

The ideal solution for wiring a pair of Lazer high performance LED spotlights, which also feature integrated Side/Position Light function. The setup is quick, easy, and reliable with 3-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 20A fuse, a battery terminal at one end, and 3m/4.5m of flex on lamp cables, and allows for the operation of Lazer products in parallel with the standard lighting on the vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

Triple-R 750 (Gen2)

Triple-R 850 (Gen2)

Triple-R 1000 (Gen2)

Triple-R 1250 (Gen2)

Linear-12 Elite (with Position Light)

Linear-18 Elite (with Position Light)


Product Code: 2L-LP-PL-120

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / Secure payment / 30 day money-back guarantee

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 1 working day of your order being placed (stock permitting). For orders where the billing address is outside of the EU, 20% VAT will be deducted during the checkout stage. For expedited delivery please refer to our Dealer Locator page. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Two-Lamp Wiring Kit for Lazer products with integrated Position Light function

3m+ cable lengths

Includes 12V relay and 20 amp fuse

Superseal connections

High beam trigger wire allows for operation of lights in parallel with standard high beams

Conduit cable sections for added protection in engine bay

Technical Specifications
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

There are no file attachments for this product.
Videos
