Lightweight Bonnet Mount Kit

Product Code
#0068-B

From £108.00

To £1,215.60

Lightweight Bonnet Mount Kit   + £108.00
Lightweight Bonnet Mount Kit

In stock

£108.00

Find a
Stockist

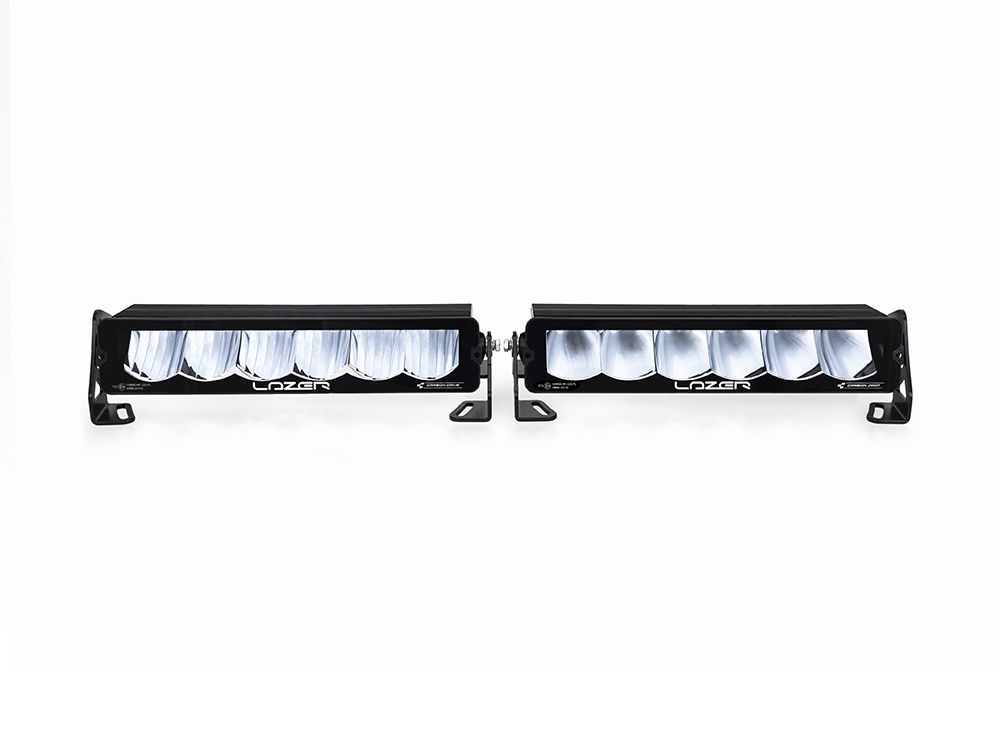

The Lightweight Bonnet Mount Kit comprise a pair of 3mm aluminium brackets, designed to provide a flexible, ultra-lightweight solution for bonnet mounting Carbon-6 LED driving lights. Each bracket is finished with a satin black powder coat, and e-coat pre-treatment for maximum corrosion resistance. A rotational feature on the feet of each bracket allows for flexibility in the outboard adjustment of lights, most relevant when fitting Carbon-6 (Drive) lamps.

(Lights and wiring are not included, and must be ordered separately)



When an additional Carbon-6 is required, we recommend utilising our Aluminium Side Brackets.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Lightweight Bonnet Mount Kit

Universal lightweight bonnet mounting system

Suitable for a pair of Carbon-6 LED driving lights

Universally compatible with any vehicle

Left/right rotational feature

Machined & anodised billet aluminium

E-coat pre-treatment and satin black powder coat finish

Manufactured in the UK

Technical Specifications
CARBON-6 (GEN3) SPOT DRIVE
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 400 gr 400 gr
HIGH BEAM FUNCTION
Total Luminous Flux 9360 Lm 9360 Lm
Total Driver 'FOV' Flux † 6550 Lm 6540 Lm
Colour Temperature 5000K 5000K
Number of High Output LEDs 6 6
Power Consumption 85W 85W
Peak Current Draw (at 10V) 8.5A  8.5A
Current Draw (at 14.4V) 5.9A 5.9A
Start-up Time * 5ms 5ms
DIMENSIONS
Width 315 mm 315 mm
Depth 82 mm 82 mm
Height 70 mm 70 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 32 Degrees 60 Degrees
0.25 lx Line 1670 metres 998 metres
0.5 lx Line 1180 metres 707 metres
1 lx Line 834 metres 500 metres
3 lx Line 480 metres 288 metres

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
